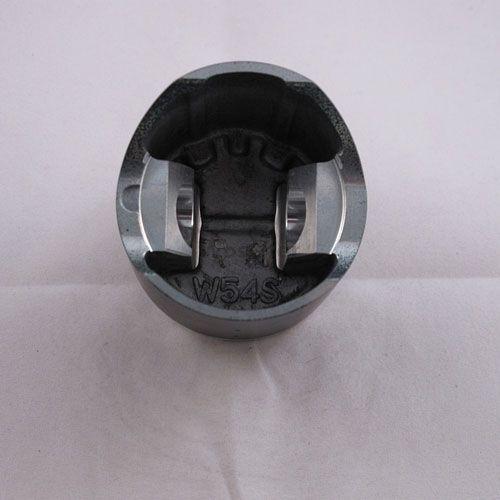

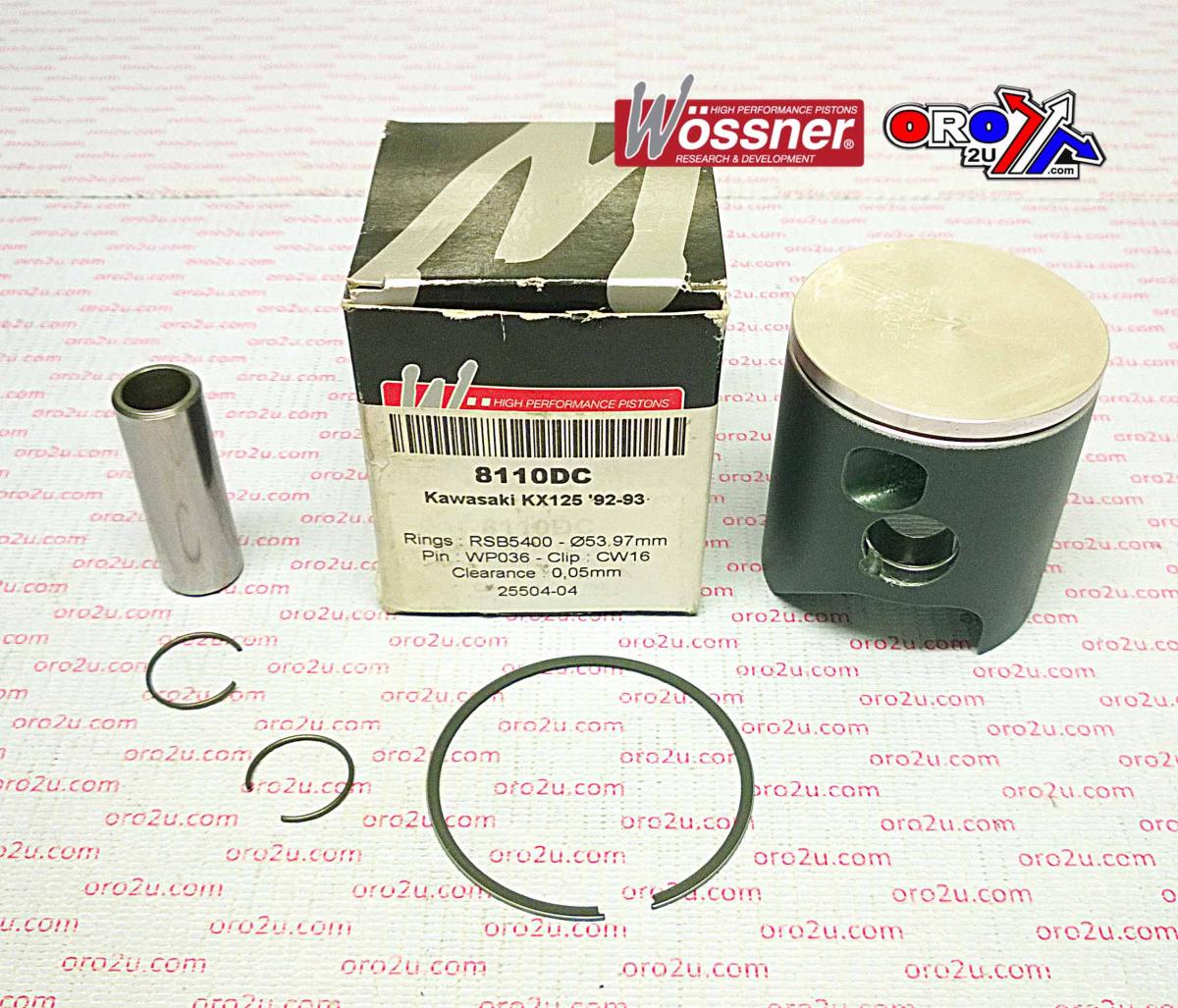

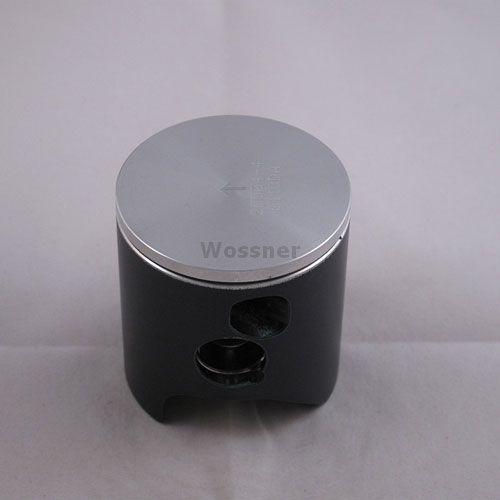

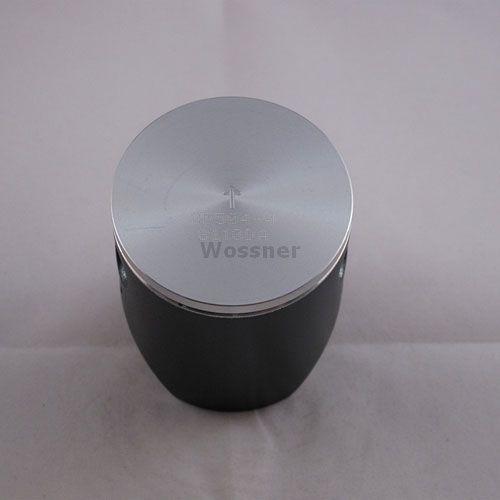

Piston Kit 54mm Bore 53.94 Wossner 8110DA (STD)

KAWASAKI KX125 1992 - 1993

Wossner forged pistons are superior in strength and design. Engineered to provide the best possible path for combustion chamber heat transfer to cylinder walls. Elliptically designed to provide a more uniform bearing surface under piston heat expansion, eliminating localized pressure and distributing thrust loads more evenly, thereby preventing piston collapse. Made in Germany.

• Wossner Piston Kawasaki KX125 54 mm Bore (PN#): 8110DA
• Lock P/N: CW16
• Pin P/N: WP036
• Ring Set P/N: RSB5400
• Rod P/N: P2037

Specifications:

• Display (cm3): 125
• Hub Stroke (mm): 54.50
• Clearance (mm): 0.06
• Wossner Compression Ratio: 2 stroke
• OEM Compression Ratio: 2 stroke
• Dome Volume (cm3):
• Compression Height (mm): 29.00
• Theoretical Weight (G):

Cross Reference Numbers (ONLY):

• 13001-1377
