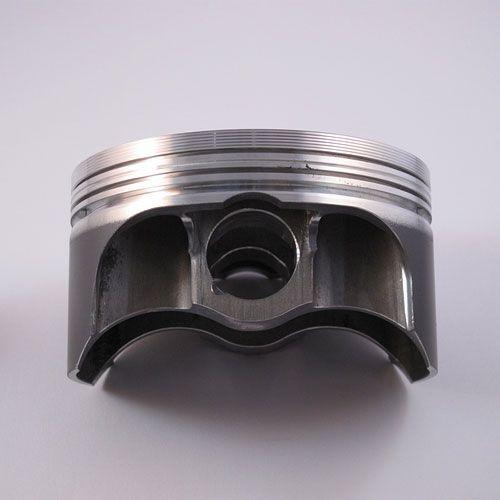

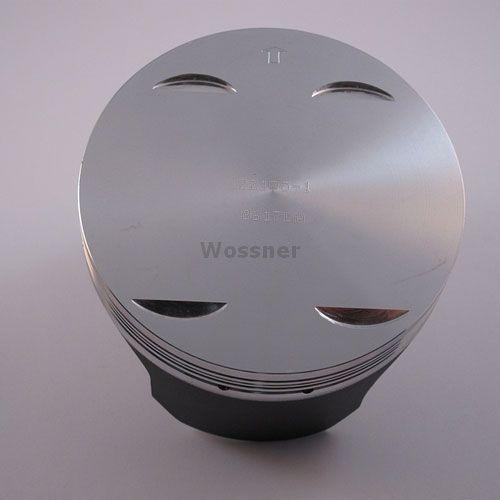

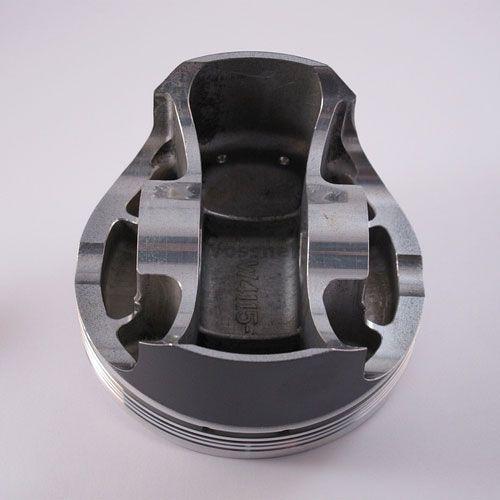

Piston kit 100.02mm Bore 99.97 Wossner 8617DC (+0.02)

YAMAHA
XT660R 2004 - 2017

• Wossner forged pistons are superior in strength and design.
• Engineered to provide the best possible path for combustion chamber heat transfer to cylinder walls.
• Elliptically designed to provide a more uniform bearing surface under piston heat expansion, eliminating localized pressure and distributing thrust loads more evenly, thereby preventing piston collapse.
• Made in Germany

Part No. 56-W203.C.WO
Wossner Piston Yamaha XT660R (PN# 8617DC)
Lock P/N CW23
Pin P/N WP024
Ring Set P/N 1000XSY-3

Display (cm3) 660
Hub stroke (mm) 84.00
Clearance (mm) 0.05
Wossner compression Ratio: 10.70:1
OEM Compression ratio: 10.00:1
Dome volume (cm3) -0.30
Compression height (mm)27.50
Theorectical weight (G)
