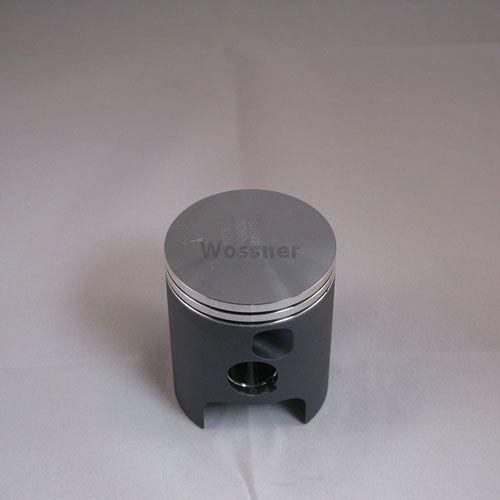

This Wossner piston kit (Part No. 8007D100) is designed for the Kawasaki KMX 125 produced between 1986 and 2005. Featuring a 55.00mm bore size (+1.00mm oversize), the kit includes a forged piston built for strength, reliability, and efficient thermal performance. Manufactured in Germany, the piston is engineered with an elliptical profile to ensure a consistent bearing surface under heat expansion, minimising risk of collapse during operation.

Features

• Wossner forged piston for enhanced strength and durability

• Designed for effective heat transfer from the combustion chamber to cylinder walls

• Elliptical design supports uniform bearing surface during thermal expansion

• Precision engineered for high-performance two-stroke applications

• Made in Germany

Specifications

• Bore Size: 55.00mm (+1.00mm oversize)

• Displacement: 125 cm³

• Stroke: 54.40mm

• Clearance: 0.06mm

• Compression Height: 32.80mm

• Compression Ratio: Not specified

• Dome Volume: Not provided

• Theoretical Weight: Not provided

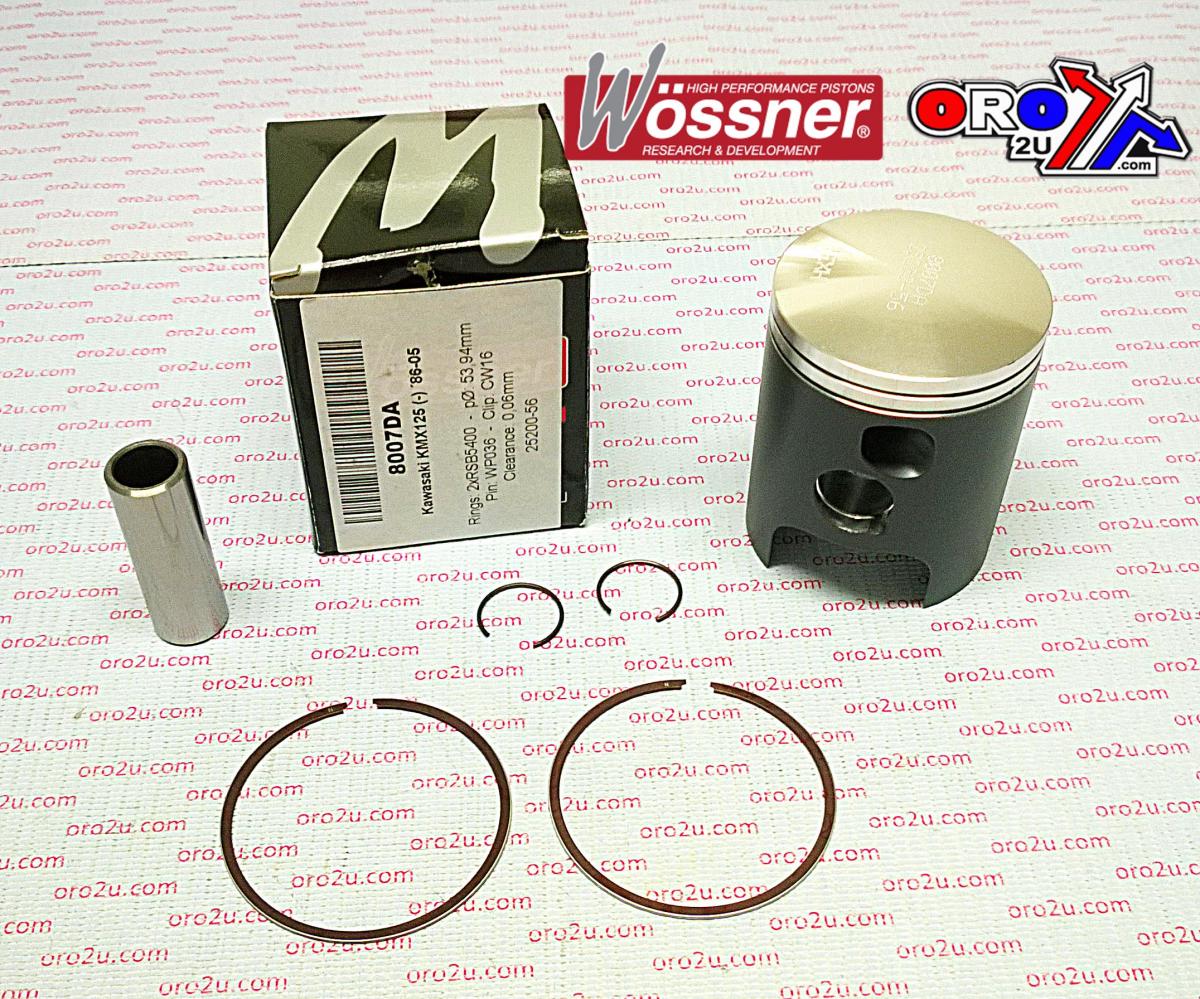

Included Parts

• Piston: 8007D100

• Rings: RSB5500 (x2)

• Wrist Pin: WP036

• Locks: CW16

Vehicle Fitments

• Kawasaki KMX 125 1986–2005
