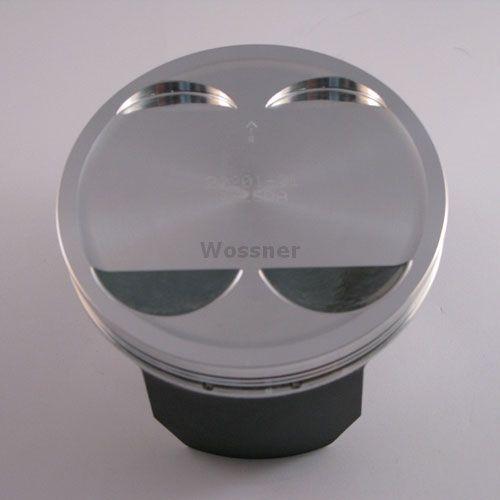

Piston Kit 98.00mm Bore 97.95 Wossner 8526DB (+0.01)

Husqvarna

• TC 610: 2001 - 2002
• TE 570: 2001 - 2002

Features:

• Wossner forged pistons are superior in strength and design.
• Engineered to provide the best possible path for combustion chamber heat transfer to cylinder walls.
• Elliptically designed to provide a more uniform bearing surface under piston heat expansion, eliminating localized pressure and distributing thrust loads more evenly, thereby preventing piston collapse.
• Made in Germany.

• Wossner Piston: Husqvarna TC570 98.01 mm Bore (PN# 8526DB)
• Lock P/N: CW22
• Pin P/N: WP009
• Ring Set P/N: 980ADS-2

Specifications:

• Display (cm3): 577
• Hub stroke (mm): 76.40
• Clearance (mm): 0.06
• Wossner compression Ratio: OEM
• OEM Compression ratio: 10.00:1
• Dome volume (cm3): -5.40
• Compression height (mm): 25.00
