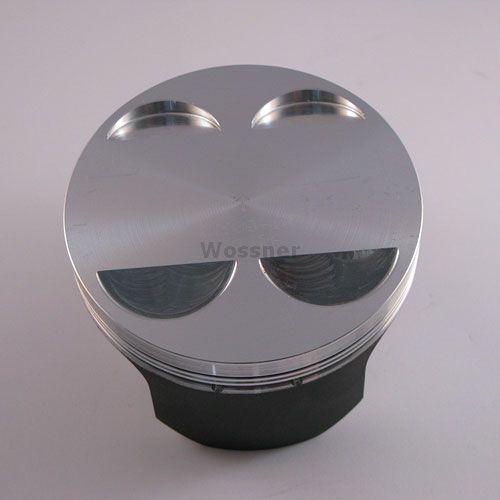

Piston Kit 92.00mm Bore 91.94 Wossner 8511D050 (+0.50)

Husqvarna
TC 510 1987 - 1990,
TE 510 1987 - 1990,
WRE 510 1987 - 1990,

• Wossner forged pistons are superior in strength and design.
• Engineered to provide the best possible path for combustion chamber heat transfer to cylinder walls.
• Elliptically designed to provide a more uniform bearing surface under piston heat expansion, eliminating localized pressure and distributing thrust loads more evenly, thereby preventing piston collapse.
• Made in Germany.

PART NO. 56-W105_0.50

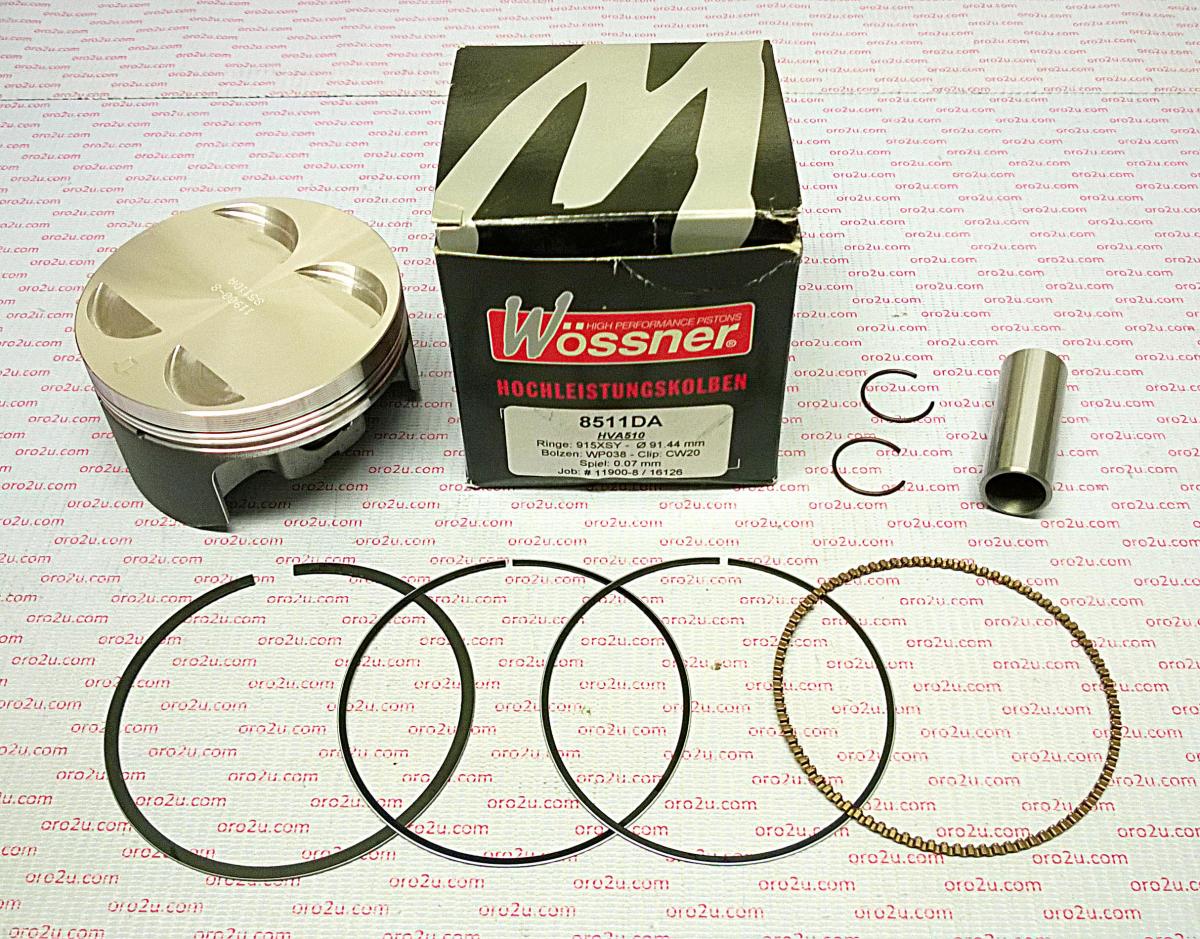

Wossner Piston Husqvarna TE510 92 mm Bore (PN# 8511D050)
Lock P/N CW20
Pin P/N WP038
Ring Set P/N 920XSY

Display (cm3) 503
Hub stroke (mm) 76.50
Clearance (mm) 0.06
Wossner compression Ratio: OEM
OEM Compression ratio: 12.00:1
Dome volume (cm3) -2.60
Compression height (mm) 30.00
Theorectical weight (G)
