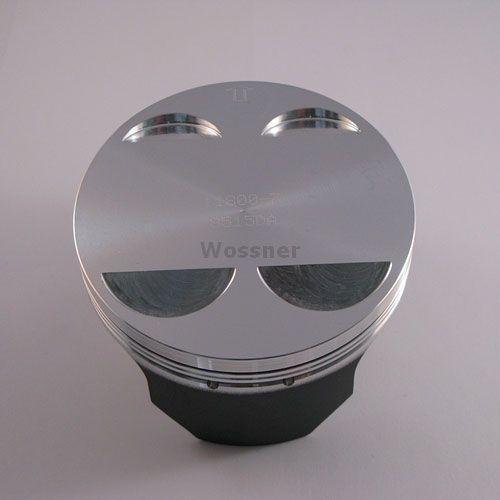

Piston Kit 91.50mm Bore 91.46 Wossner 8515DC (+0.02)

Husqvarna

• TE 410: 1993 - 1995

Features:

• Wossner forged pistons are superior in strength and design.
• Engineered to provide the best possible path for combustion chamber heat transfer to cylinder walls.
• Elliptically designed to provide a more uniform bearing surface under piston heat expansion, eliminating localized pressure and distributing thrust loads more evenly, thereby preventing piston collapse.
• Made in Germany.

• Wossner Piston: Husqvarna TE410 91.5 mm Bore (PN# 8515DC)
• Lock P/N: CW20
• Pin P/N: WP038
• Ring Set P/N: 915XSY

Specifications:

• Display (cm3): 399
• Hub stroke (mm): 60.80
• Clearance (mm): 0.06
• Wossner compression Ratio: OEM
• OEM Compression ratio: 11.40:1
• Dome volume (cm3): -1.90
• Compression height (mm): 27.80
