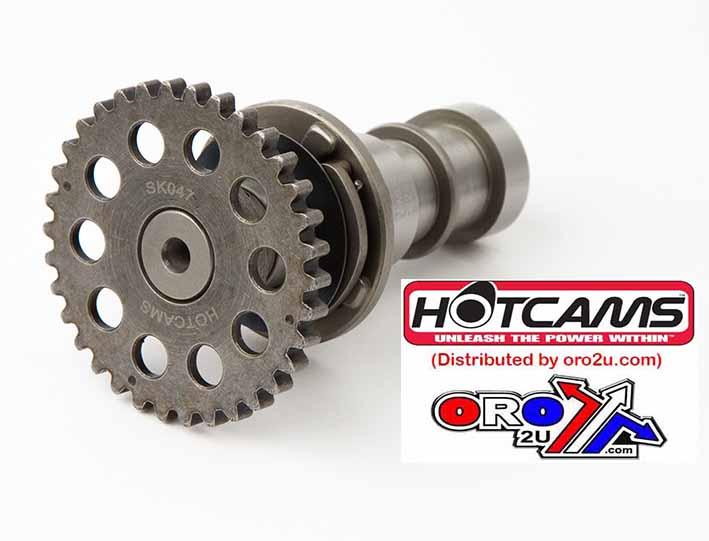

Hotcam camshaft 2252-2E

2004 - 2008 Arctic Cat DVX 400,
2003 - 2006 Kawasaki KFX 400,
2003 - 2004 Kawasaki KLX 400,
2000 - 2013 Suzuki DRZ 400,
2005 - 2009 Suzuki DRZ 400SM,
2000 - 2013 Suzuki LTZ 400,

Stage 1 Exhaust: Improves mid to upper power. Intake cam only for woods riding. Change intake & exhaust for MX or desert riding.
Uses stock valve springs Shim kits available Includes adjustable cam timing sprockets Uses stock auto-decompression mechanism.
Exhaust Duration (Degrees at 1mm): 238.00

Part No. 56-C301.EX.ST2 (oro2u.com)

Technical Specifications:

Exhaust Duration (Degrees at 1mm):

238.00

Exhaust Lift (mm):

9.05

Exhaust Lobe Center (Degrees):

104.50

Exhaust Valve Lash (mm):

.20

Intake Duration (Degrees at 1mm):

.00

Intake Lift (mm):

.00

Intake Lobe Center (Degrees):

.00

Intake Valve Lash (mm):

.00

Shim Kit:
