Psychic Nla .... Use 56-987.r Connecting Rod Kit 86-05 XR250, Honda 13000-kce-670 13201-kt1-000, 13201-kt1-000
0 Reviews
Stock Out
Categories:
Connecting RodSKU:
56-987.DRHONDA
XR250 1986-2005,
XR250 / XLR250R,
CONNECTING CONROD ROD REBUILD KIT.
- Heavy-duty OE replacement connecting rods.
- Certified Chorme alloy steel provides superior strength.
- Crankpins are manufactured from hot-rolled ASTM steel and case hardened.
- ORO Rods uses the latest in caged needle roller bearing designs for high rpm longevity.
- Thrust washers are manufactured from bronze phosphor and are silver coated.

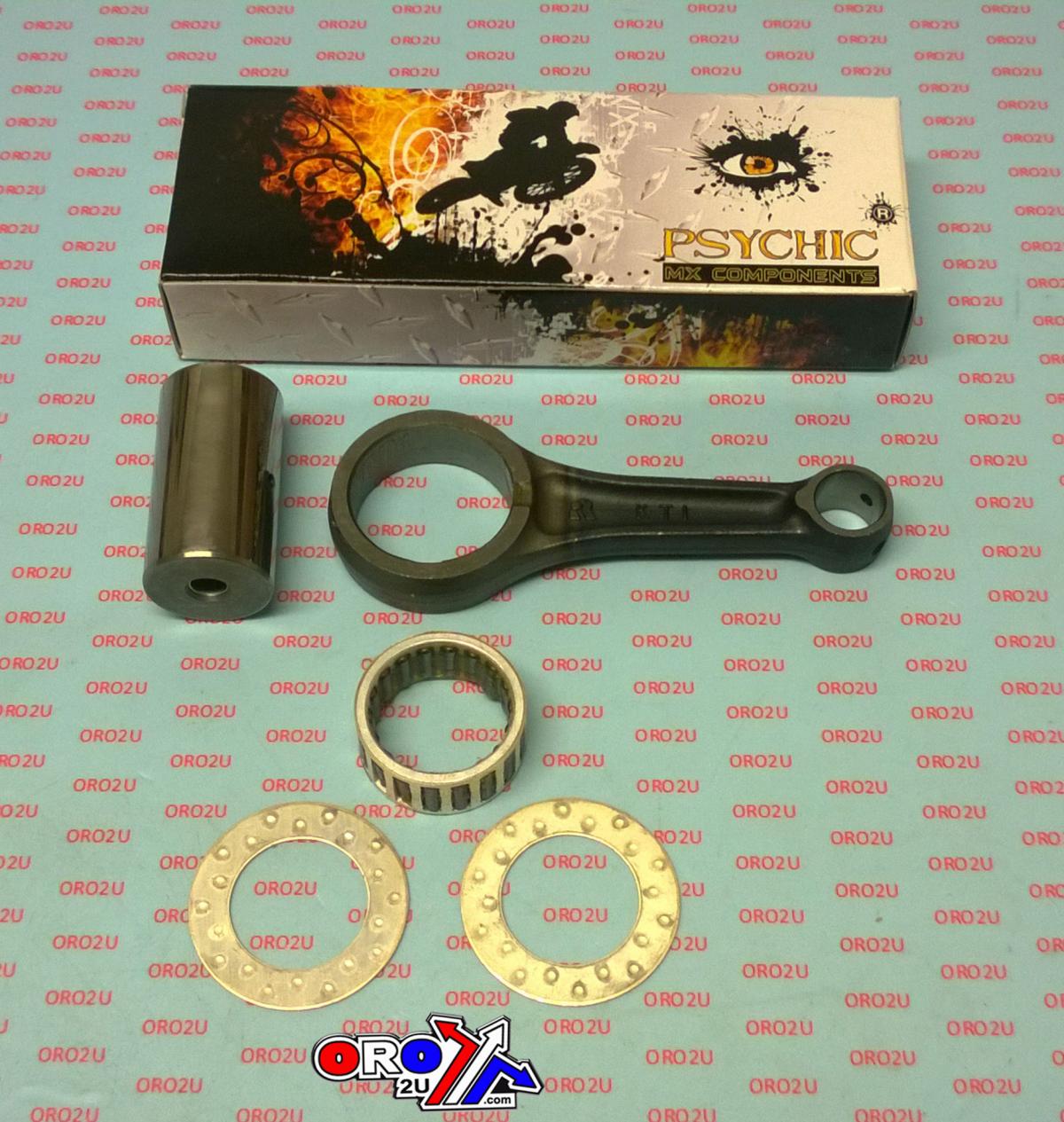

- Rod assembly sold complete with rod, crankpin, crankpin bearing, top end bearing and thrust washers if need.
- Fully Compatible with after market and OE crankshafts.
- Material SNCM220,

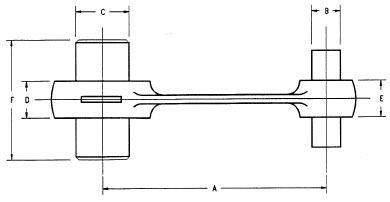

| SIZE | MM |
| Centre 2 Centre | 105 |
| Small End Bearing | 17x20x16.8 |
| Small End Bore Ø | 20 |
| Small End Width | 18 |
| Big End Bearing | 32x41x17.8 |
| Big End Bore Ø | 41 |
| Big End Width | 18 |
| Big End Pin Ø | 32 |
| Big End Pin Length | 58 |
| Washer Thickness | 1.00 |
Part No. 56-987.DR
Cross reference numbers ONLY.
13201-KT1-000, RH-1026, 13000-KCE-670 PSYCYIC MX-09006
