Psychic Connecting Rod 03-05 YZF450, Psychic MX-09086 Yamaha MX
0 Reviews
In Stock
Categories:
Connecting RodSKU:
56-911.DRYAMAHA
2004 - 2006 WR 450F,
2003 - 2005 YZ 450F,
CONNECTING CONROD ROD REBUILD KIT. PSYCHIC MX-09086
- Heavy-duty OE replacement connecting rods.
- Certified Chorme alloy steel provides superior strength.
- Crankpins are manufactured from hot-rolled ASTM steel and case hardened.
- Psychic Rods uses the latest in caged needle roller bearing designs for high rpm longevity.
- Thrust washers are manufactured from bronze phosphor and are silver coated.

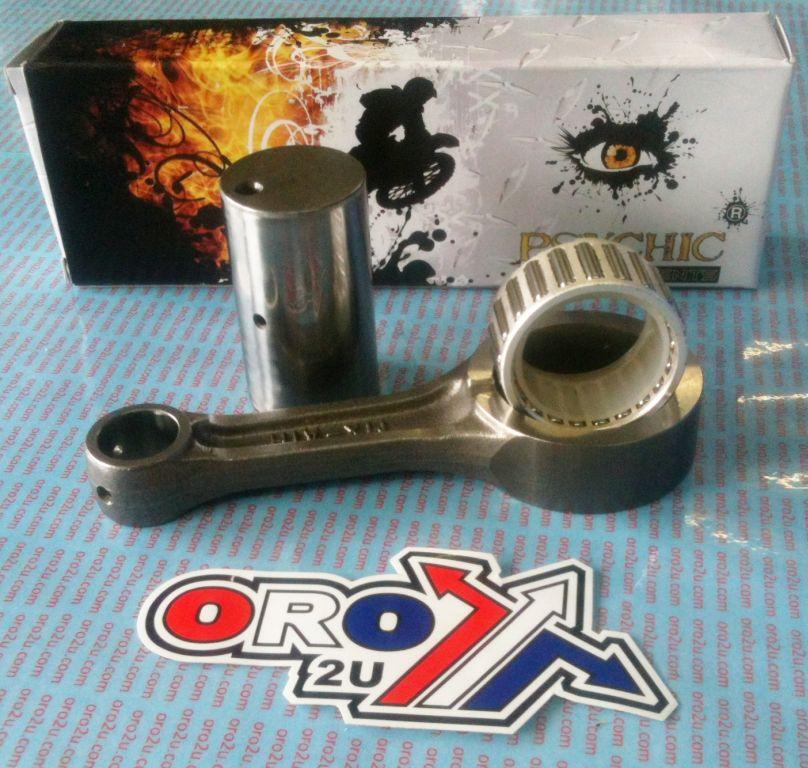

- Rod assembly sold complete with rod, crankpin, crankpin bearing, top end bearing and thrust washers if need.
- Fully Compatible with after market and OE crankshafts.
- Material SNCM220,
| SIZE | MM |
| Centre 2 Centre | 103.50 |
| Small End Bearing | None |
| Small End Bore Ø | 16 |
| Small End Width | 15 |
| Big End Bearing | 34x42x20 |
| Big End Bore Ø | 42 |
| Big End Width | 20 |
| Big End Pin Ø | 34 |
| Big End Pin Length | 60.90 |
| Washer Thickness | None |
Part No. 56-911.DR
Cross reference numbers.
ATHENA P40321022, 5XD-11651-00-00, PSYCHIC MX-09086, HOTRODS 8621, PROX 03.2423, WISECO WPR197, WOSSNER P4007, PROX 03-2423, YAMAHA: 5TA-11651-00-00 YAMAHA: 5XD-11651-00-00,
