Psychic Connecting Rod Kit 98-02 KX125, Psychic MX-09032 Kawasaki MX
0 Reviews
In Stock
Categories:
Connecting RodSKU:

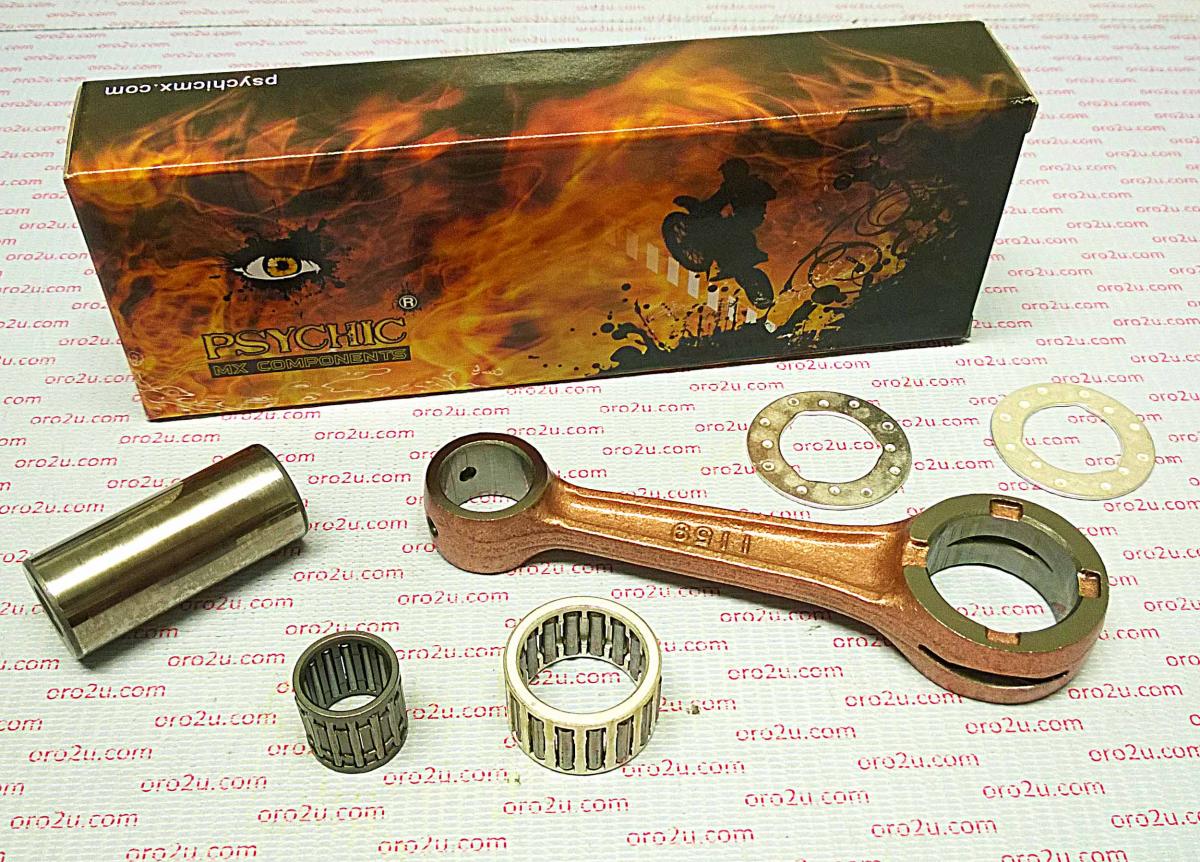

56-877.DRCONNECTING ROD CONROD REBUILD KIT PSYCHIC MX-09032
KAWASAKI
KX125 1998-2002,
- Heavy-duty OE replacement connecting rods.
- Certified Chorme alloy steel provides superior strength.
- Crankpins are manufactured from hot-rolled ASTM steel and case hardened.
- Psychic Rods uses the latest in caged needle roller bearing designs for high rpm longevity.
- Thrust washers are manufactured from bronze phosphor and are silver coated.
- Rod assembly sold complete with rod, crankpin, crankpin bearing, top end bearing and thrust washers if need.
- Fully Compatible with after market and OE crankshafts.
- Material SNCM220,
| SIZE | MM |
| Centre 2 Centre | 104 |
| Small End Bearing | 15x19x19.80 |
| Small End Bore Ø | 19 |
| Small End Width | 17.00 |
| Big End Bearing | 22x29x16.8 |
| Big End Bore Ø | 29 |
| Big End Width | 17.00 |
| Big End Pin Ø | 22 |
| Big End Pin Length | 51.00 |
| Washer Thickness | 1.00 |
Part No. 56-877.DR
Cross reference numbers.
WOSSNER P2034, WISECO WPR165, HOTROD 8140, 13032-0010, 13032-1225, 13032-1253,
