Psychic Connecting Rod LC400 600 625, Psychic MX-09015 LC640, 660smc
0 Reviews
In Stock
Categories:
Connecting RodSKU:
56-2918.DRKTM
LC4 400cc 1998-2001,
LC4 600 1997-2007,
LC4 620/625/640cc SX DUKE SUPERMOTO 1994-2007,
LC 660SMC 2003-2009,
CONNECTING CONROD ROD REBUILD KIT. PSYCHIC MX-09015
- Heavy-duty OE replacement connecting rods.
- Certified Chorme alloy steel provides superior strength.
- Crankpins are manufactured from hot-rolled ASTM steel and case hardened.
- Psychic Rods uses the latest in caged needle roller bearing designs for high rpm longevity.
- Thrust washers are manufactured from bronze phosphor and are silver coated.

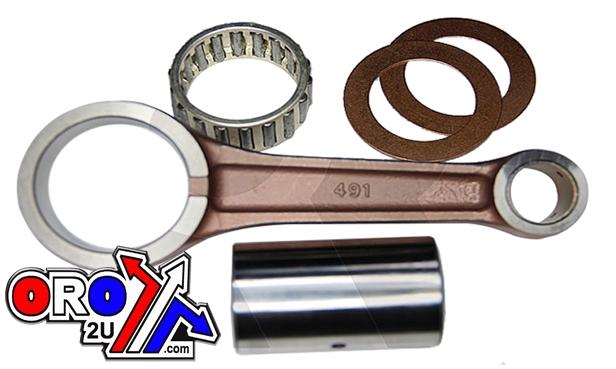

- Rod assembly sold complete with rod, crankpin, crankpin bearing, top end bearing and thrust washers if need.
- Fully Compatible with after market and OE crankshafts.
- Material SNCM220,

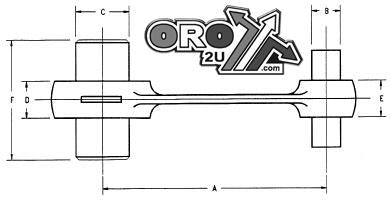

| SIZE | MM |
| Centre 2 Centre | 141.50 |
| Small End Bearing | None |
| Small End Bore Ø | 22 |
| Small End Width | 22.9 |
| Big End Bearing | 40x50x22.7 |
| Big End Bore Ø | 50 |
| Big End Width | 22.9 |
| Big End Pin Ø | 40 |
| Big End Pin Length | 65 |
| Washer Thickness | 40x60x1 |
Part No. 56-2918.DR
Cross Reference Numbers Only:
RO-8205/491
