Psychic Connecting Rod Kit XT500, Psychic MX-09044 Yamaha
0 Reviews
In Stock
Categories:
Connecting RodSKU:
56-2912.DRYAMAHA
XT500 / SR500,
SRX400,
XT400,
CONNECTING CONROD ROD REBUILD KIT. PSYCHIC MX-09044
- Heavy-duty OE replacement connecting rods.
- Certified Chorme alloy steel provides superior strength.
- Crankpins are manufactured from hot-rolled ASTM steel and case hardened.
- Psychic Rods uses the latest in caged needle roller bearing designs for high rpm longevity.
- Thrust washers are manufactured from bronze phosphor and are silver coated.
- Rod assembly sold complete with rod, crankpin, crankpin bearing, top end bearing and thrust washers if need.
- Fully Compatible with after market and OE crankshafts.
- Material SNCM220,

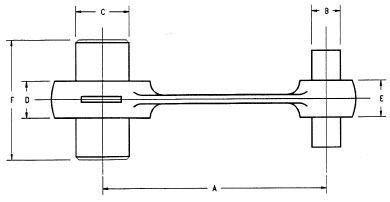

| SIZE | MM |
| Centre 2 Centre | 145 |
| Small End Bearing | None |
| Small End Bore Ø | 20 |
| Small End Width | 24 |
| Big End Bearing | 34x42x23.8 |
| Big End Bore Ø | 42 |
| Big End Width | 24 |
| Big End Pin Ø | 34 |
| Big End Pin Length | 73.80 |
| Washer Thickness | None |
Part No. 56-2912.DR
Cross reference numbers ONLY.
PROX 03-2576,
Rod, Connecting 583-11651-00-00 ,
Bearing, Cylindrical 93310-635A5-00,
Pin, Crank 583-11681-00-00 / 583-11681-01-00,
[Fits into Crankshaft Assembly 583-11400-00-00 / 583-11400-09-00]
