CONNECTING ROD REBUILD KIT PSYCHIC MX-09033

KAWASAKI
KX250 1978 - 2008

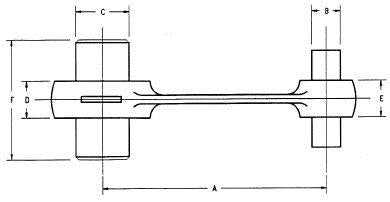

CONNECTING ROD SIZE PLEASE SEE DRAWING SIZE mm. A = 125, B = 18, C = 24, D = 20, E = 22, F = 58.5
ROD Center-Center 125.00mm
Small end EYE 18/22mm
WIDTH 20.00mm

Crank Pin 24.00 x 58mm Long

- Heavy-duty OE replacement connecting rods.
- Certified Chorme alloy steel provides superior strength.
- Crankpins are manufactured from hot-rolled ASTM steel and case hardened.
- Psychic Rods uses the latest in caged needle roller bearing designs for high rpm longevity.
- Thrust washers are manufactured from bronze phosphor and are silver coated.
- Rod assembly sold complete with rod, crankpin, crankpin bearing, top end bearing and thrust washers if need.
- Fully Compatible with after market and OE crankshafts.
- Material SNCM220,

Part No. 56-110.DR   (Distributed oro2u.com)

Cross reference numbers ONLY.
RK-5207, 13032-1279, 13044-5056, PSYCHIC MX-09033, PROX 03.4309, WOSSNER P2022, HOTROD 8108, ATHENA P40321034,
