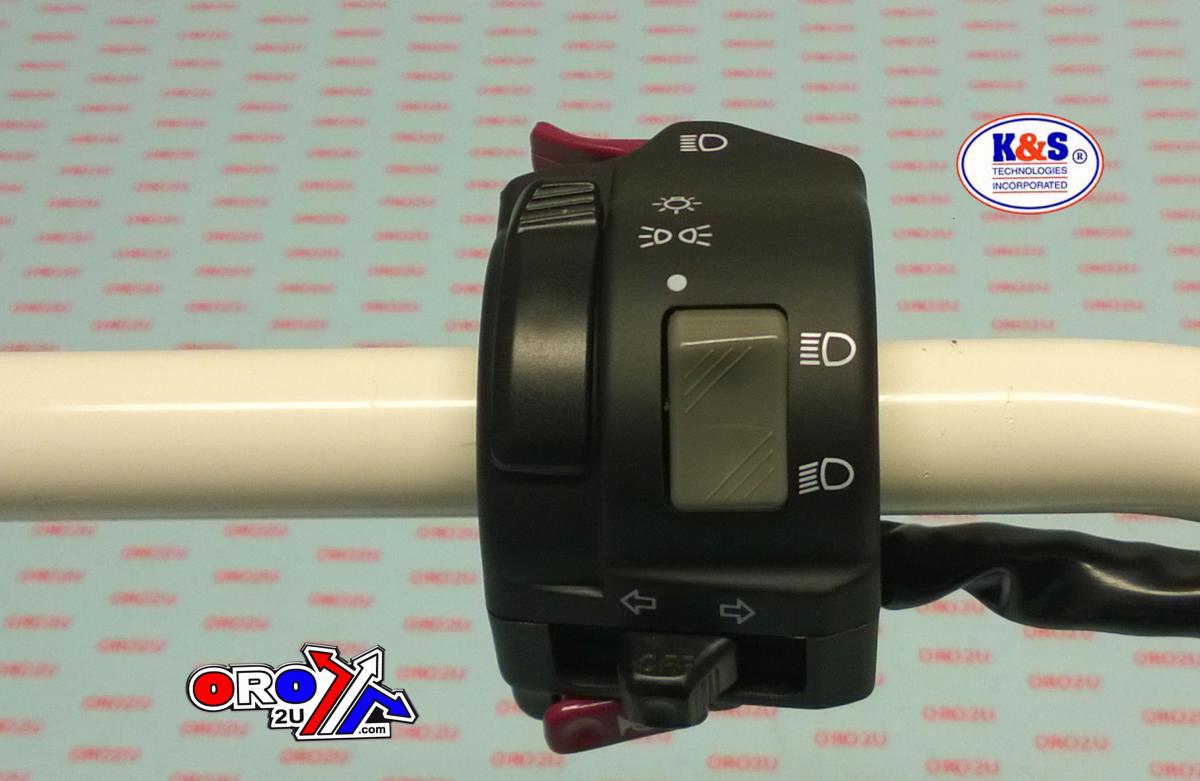

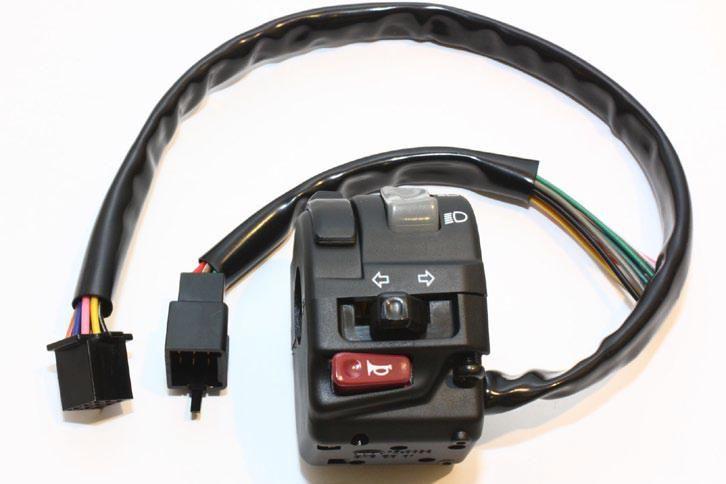

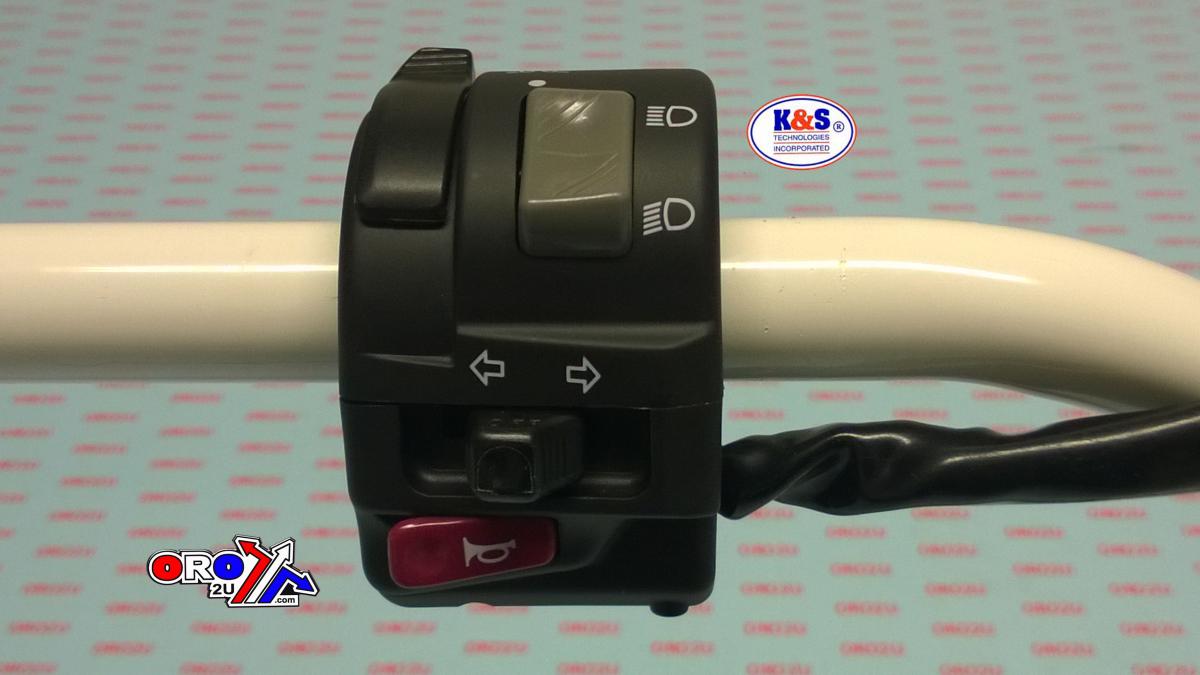

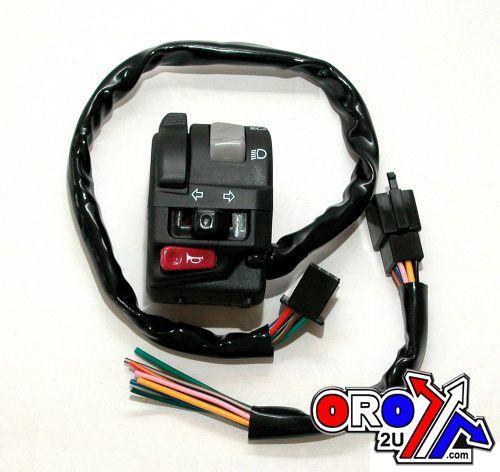

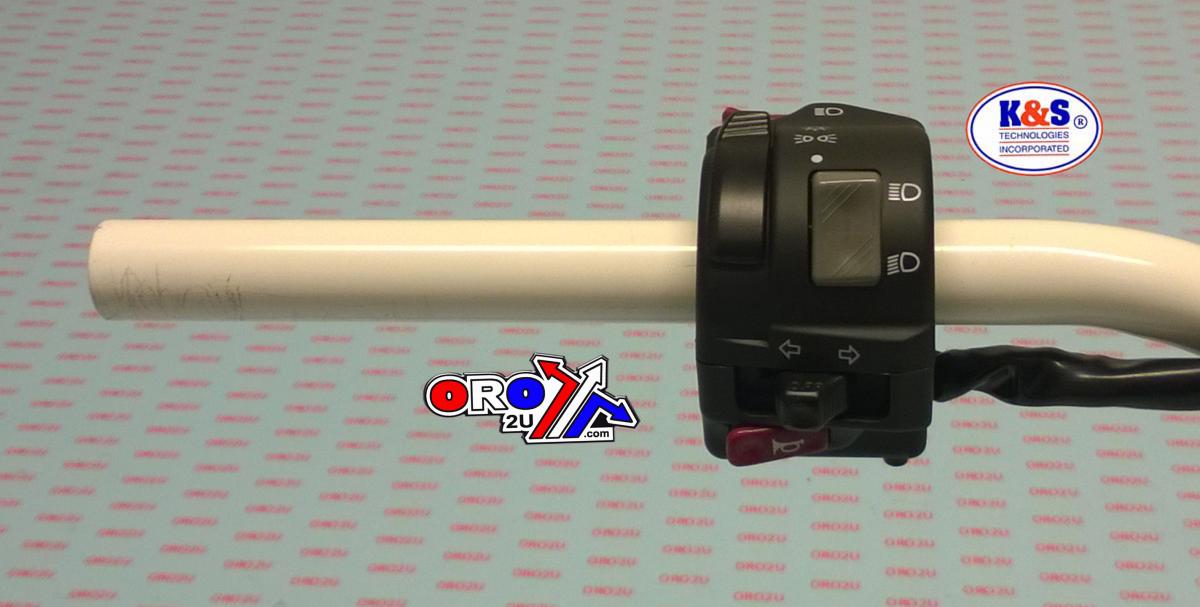

The K&S 12-0030 universal handlebar switch assembly is an OEM-style replacement control unit for 7/8 in motorcycle handlebars, used to operate indicators, headlight functions, passing light and horn from the handlebar.

Features

• Operates right and left indicators with centre-push cancelling
• Provides headlight high/low beam control
• Provides headlight off, parking and on positions
• Includes passing-light and horn functions
• Designed for universal use on motorcycles with compatible wiring
• DOT-approved

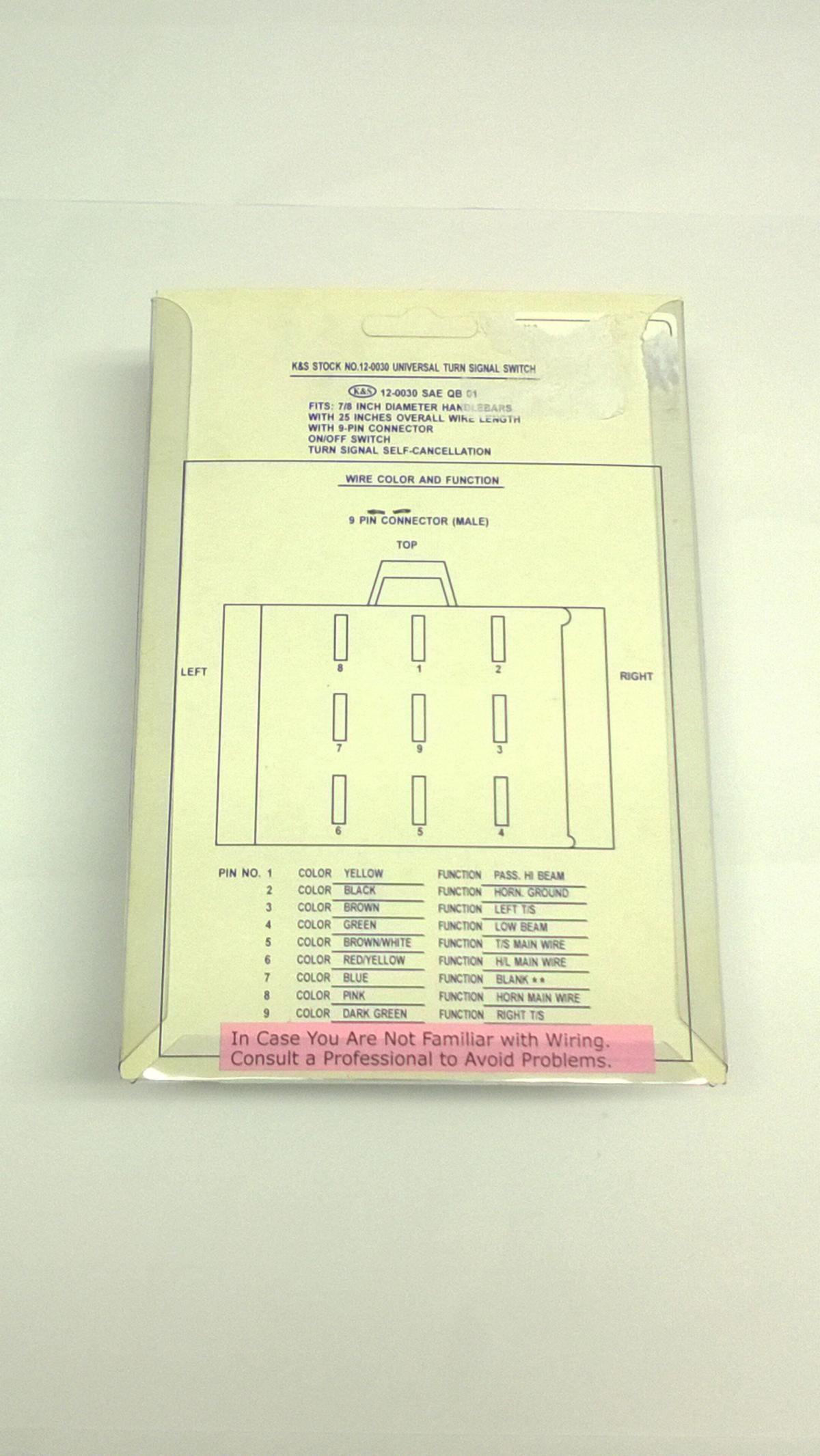

• Supplied with wiring diagram

Specifications

• Handlebar fitment: 7/8 in / 22 mm
• Overall wire length: 25 in

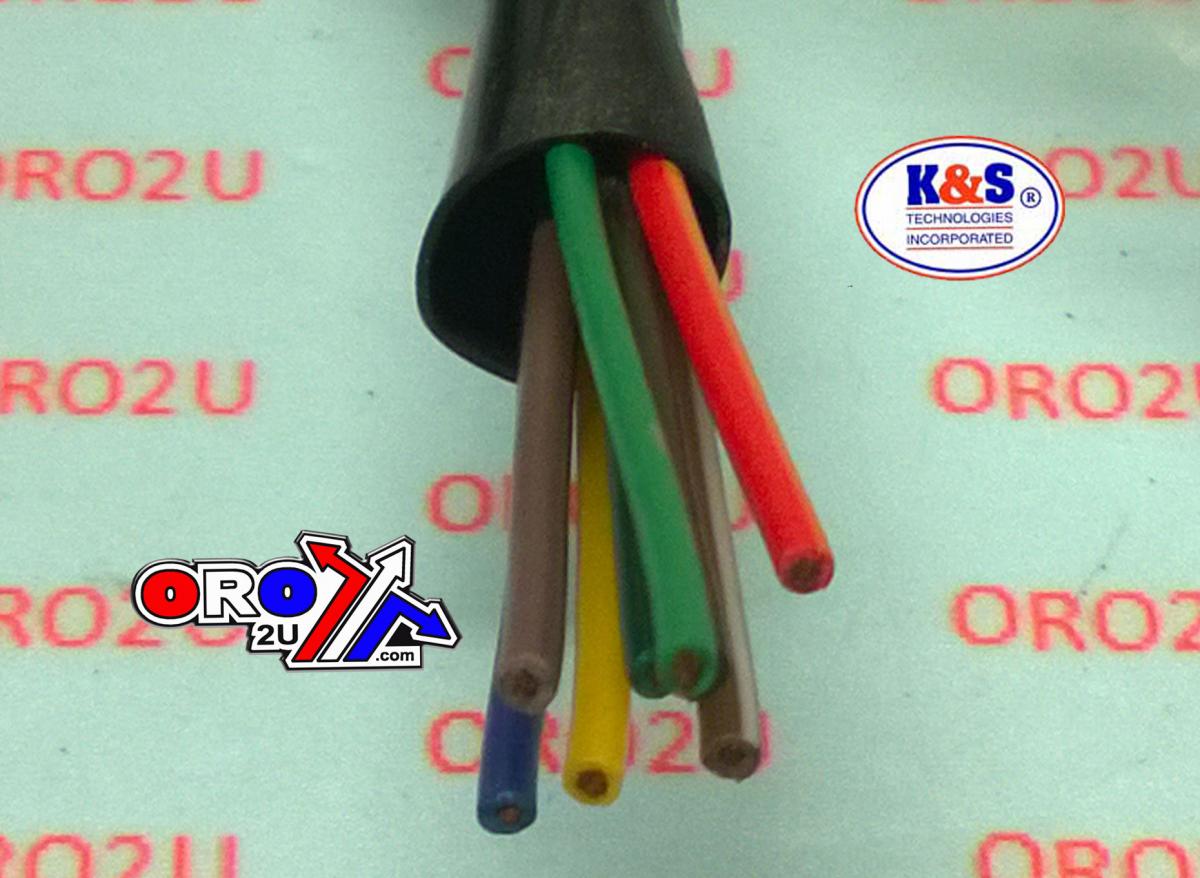

• Connector type: 9-pin connector with pigtail
• Operating voltage: 10–14 V
• Maximum current rating: 6 A

Cross-Reference OEM Part Numbers

• K&S 12-0030
