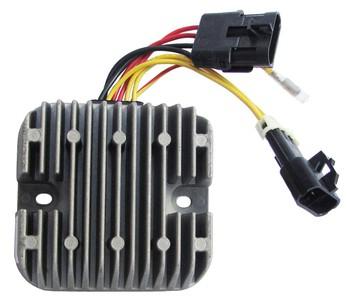

The 12V Rectifier / Regulator is designed as a high-quality replacement for various Polaris ATV and UTV models from 2007 to 2010. It ensures optimal voltage regulation and reliable electrical performance, handling up to 35A of current. This unit meets or exceeds OEM standards and is ideal for those looking for a direct replacement part with an easy installation process.

Features:

• for superior performance.
• Direct OEM replacement with correct mounting locations.
• Designed to handle increased power loads for added reliability.
• 100% factory tested for full functionality at the point of sale.
• DZE Racing products come with a satisfaction guarantee.
• Non-returnable due to the nature of electrical components.

Specifications:

• Voltage: 12V
• Current: 35A
• Input Type: Trifasico
• Output Type: DC
• Technology: SCR (Silicon Controlled Rectifier)
• Height: 50mm
• Width: 107mm
• Length: 112mm
• Pitch (Mounting Hole Center-to-Center): 82mm
• No sensor included

Vehicle Compatibility:

• Polaris RZR EFI 800cc (2008-2009)
• Polaris RZR S EFI 800cc (2009)
• Polaris Ranger 6x6 EFI 700cc (2007-2009)
• Polaris Ranger 4x4 EFI 700cc (2007-2009)
• Polaris Ranger 4x4 EFI 500cc (2008-2009)
• Polaris Sportsman EFI 500cc (2008-2009)
• Polaris Sportsman Touring EFI 800cc (2008-2009)
• Polaris Sportsman EFI Tractor 500cc (2009-2010)
• Polaris Sportsman X2 EFI 700cc (2008)
• Polaris Sportsman EFI 700cc (2007)
• Polaris Sportsman X2 EFI 800cc (2007-2009)
• Polaris Sportsman Touring EFI 500cc (2008-2009)
• Polaris Sportsman HO EFI 800cc (2008-2009)
• Polaris Sportsman X2 EFI 500cc (2008-2009)
• Polaris Sportsman HO EFI 500cc (2008)
• Polaris Sportsman EFI 800cc (2007-2010)

Cross-Reference OEM Part Numbers:

• 4011569
• 4011925
• 4012384
• APO6028
• 230-22100 (Arrowhead)
• ESP2532 (Arrowhead - OEM - Old)

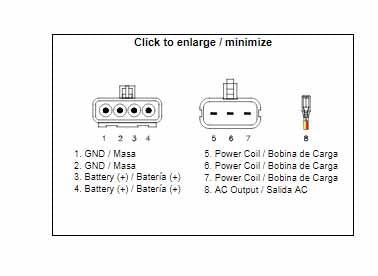

Notes:

• Size: 111mm L x 111mm W x 52.5mm H

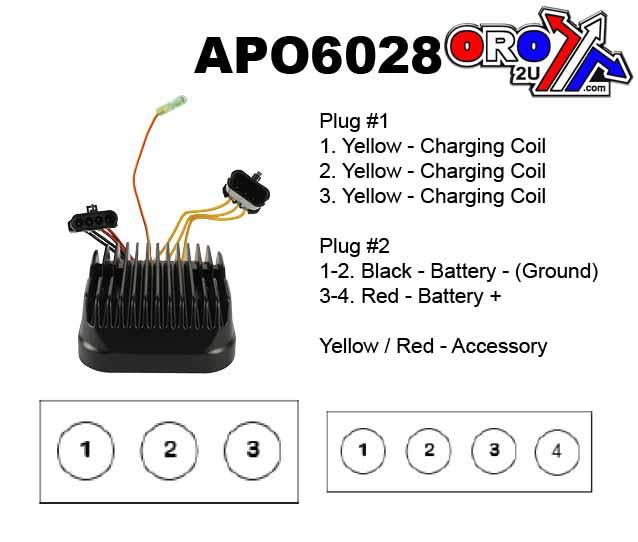

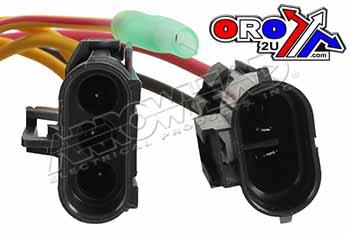

• Plug #1: (3) Yellow Wires, 7.25 inches OAL
• Plug #2: (2) Red Wires, (2) Black Wires, 5 inches OAL
• 1 Yellow w/Red Wire, Female Bullet Connector, 7 inches OAL

Part Number: 44-6091.AH
