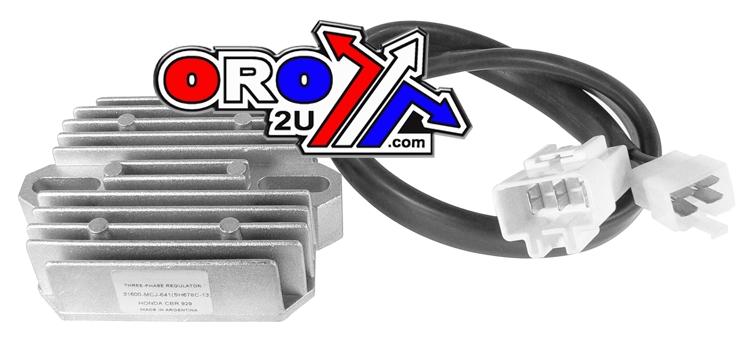

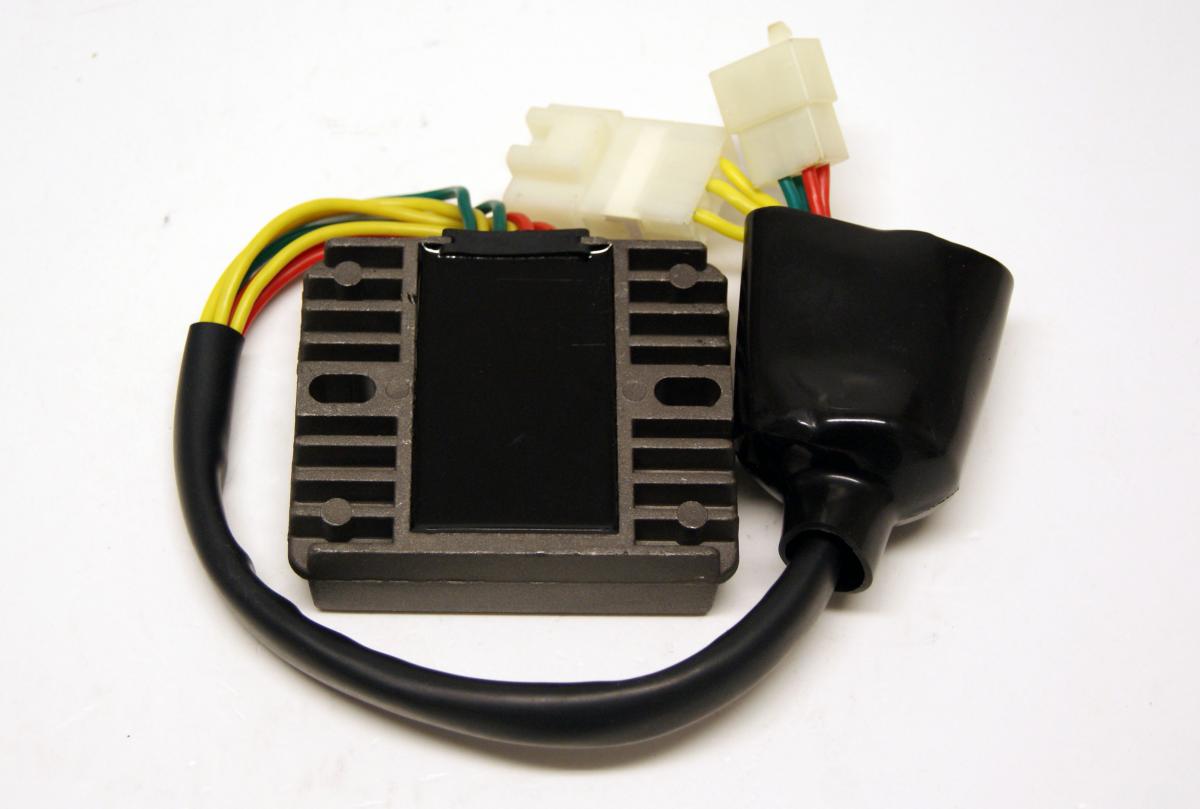

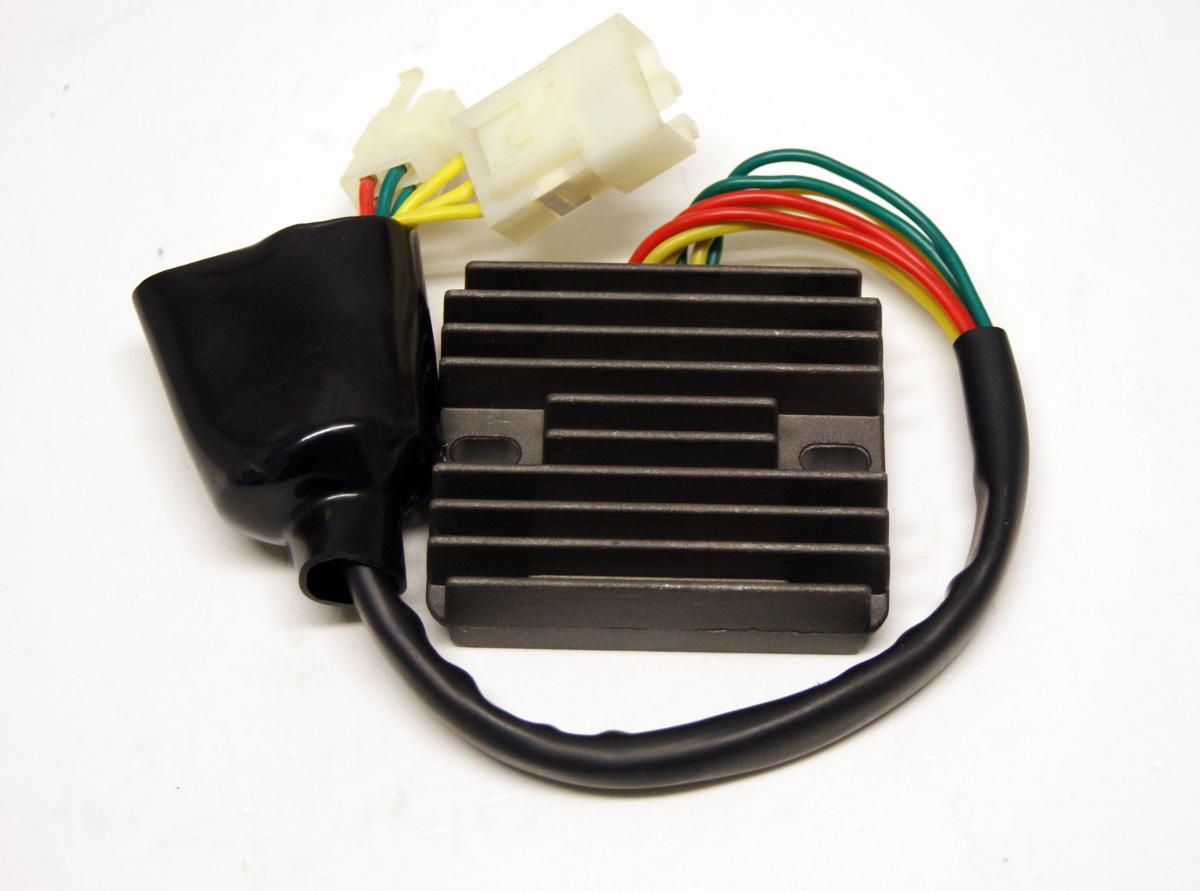

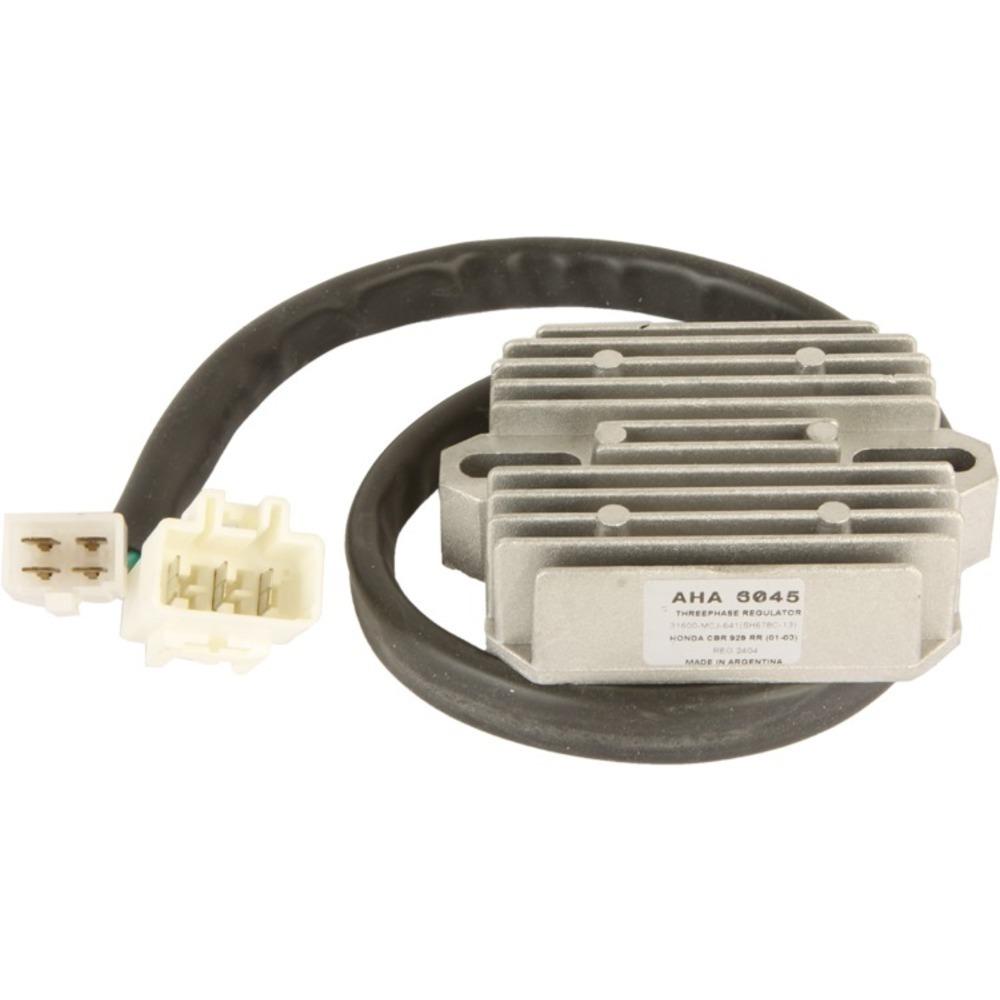

This Arrowhead Voltage Regulator is designed as a direct replacement for Honda CBR models, ensuring optimal electrical system performance. It replaces the original equipment regulator and is built to handle increased power loads, making it a reliable choice for maintaining system stability. With a three-phase input and SCR technology, it provides consistent and stable DC output.

Features

• Direct OEM replacement
• Designed to handle increased power loads
• Fully factory tested for 100% reliability
• standards
• No returns on electrical components

Technical Specifications

• Voltage: 12V
• Current: 35A
• Input Type: Three Phase
• Technology: SCR
• Output Type: DC
• Height: 27mm
• Width: 80mm
• Length: 94mm
• Hole Distance (Pitch): 73mm
• With Sensor: No

Cross Reference OEM Part Numbers

• Honda OEM: 31600-MCJ-641, 31600-MEE-872, 31600-MEE-003
• Shindengen: SH678C-13
• Arrowhead: AHA6045
• KL 20-8729
• AHA6098
• ESP2484
• Ricks: 10-128H
• AHA6052

Vehicle Fitments

• Honda CBR600RR (2003)
• Honda CBR600RR (2004-2006)
• Honda CBR900RR / RE (2000-2001)

Part Number: 44-5926.A
