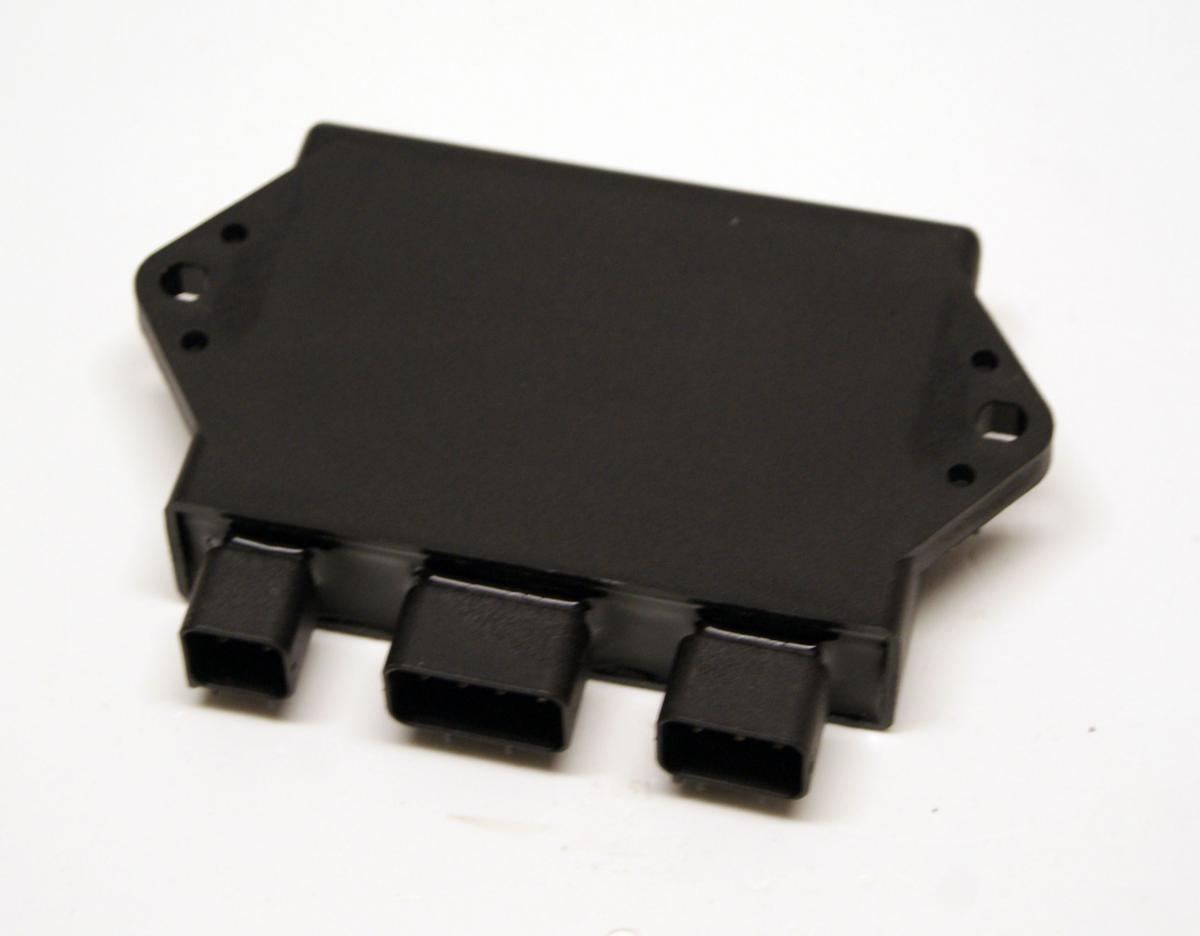

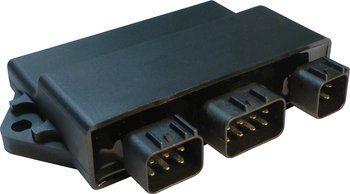

This CDI ignition unit is a replacement ignition control module for the specified Yamaha Kodiak 400 and Grizzly 400 ATVs. It controls ignition timing and supplies an output to the ignition system. Check the connector against the existing unit before ordering.

Features

• Direct replacement for the original CDI unit.

Specifications

• Electronic type: digital
• Ignition input: battery-fed DC
• Ignition timing: advance
• Outputs: 1

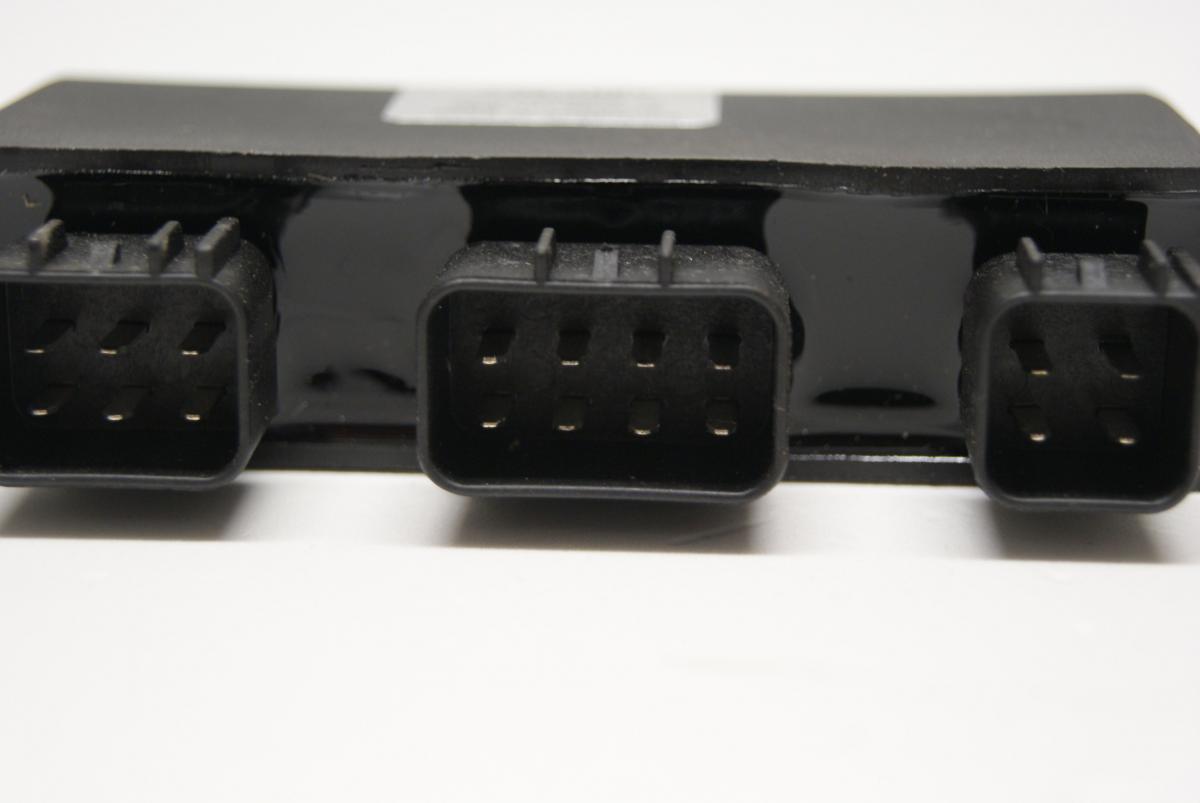

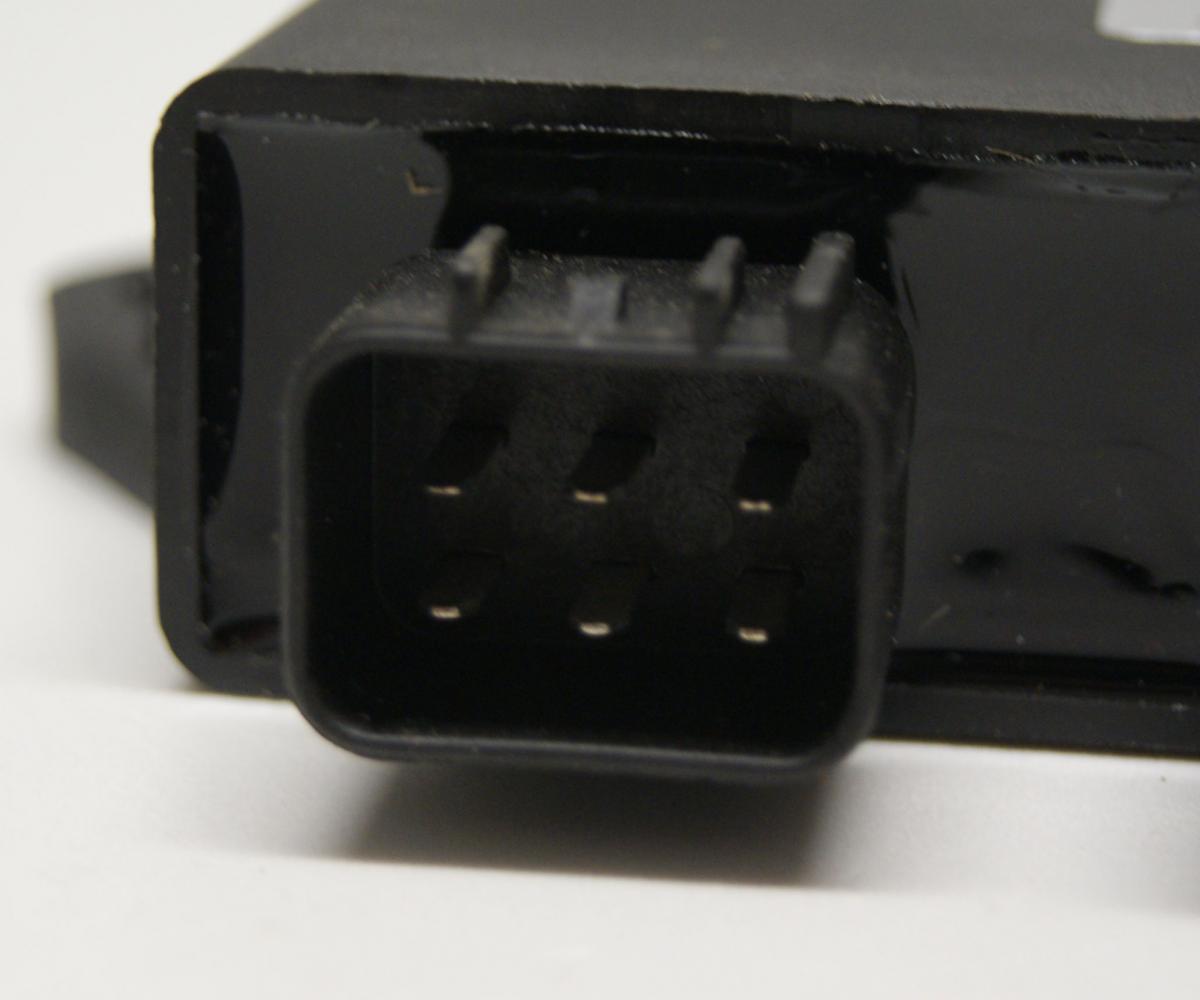

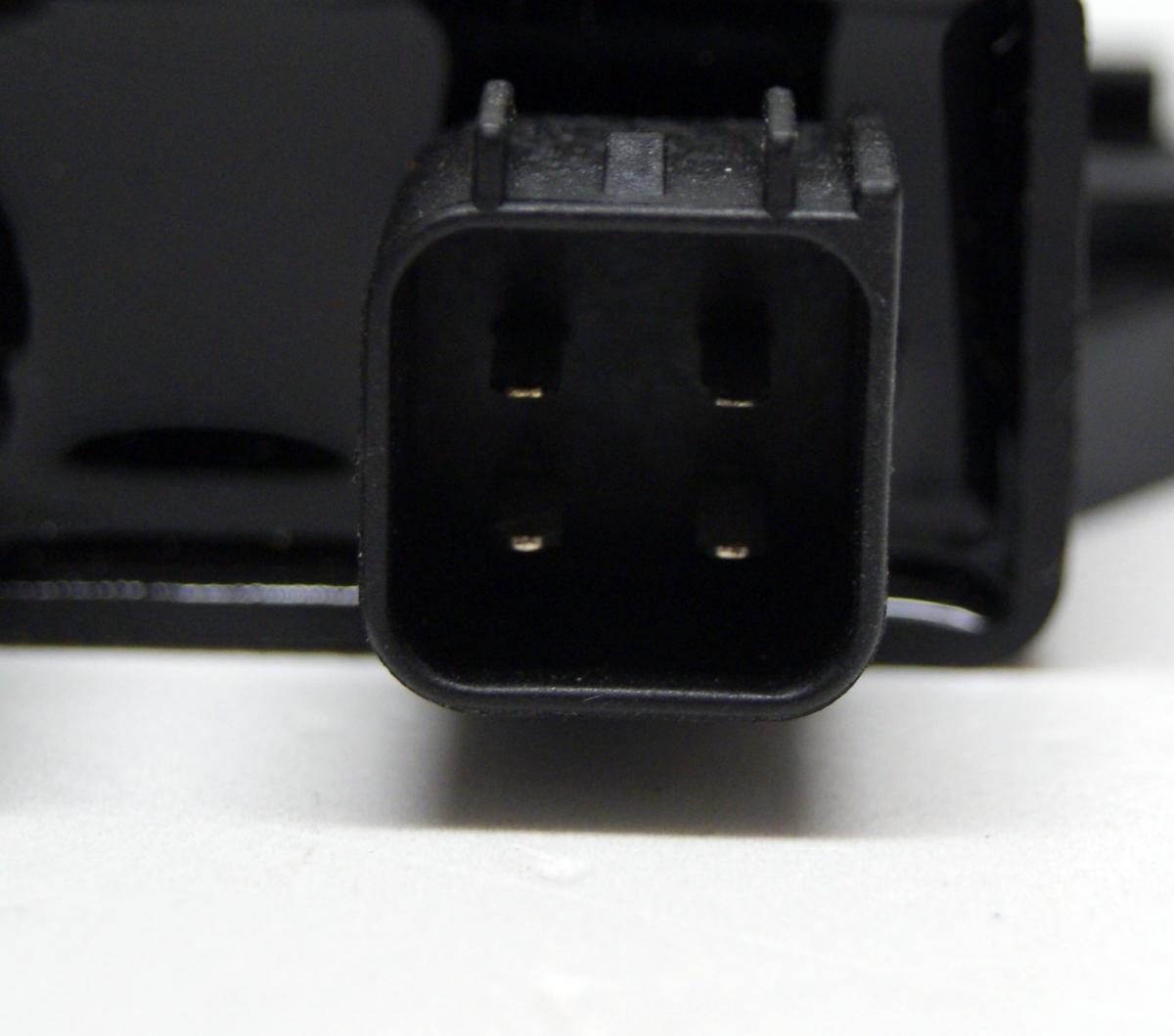

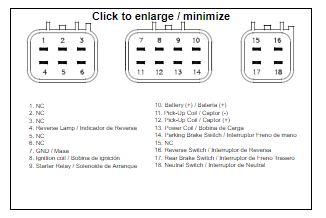

• Terminals: 18
• Dimensions (height × width × length): 27 × 78 × 142 mm

Cross-Reference OEM Part Numbers

• Yamaha: 1P1-85540-00, 1P1-85540-00-00

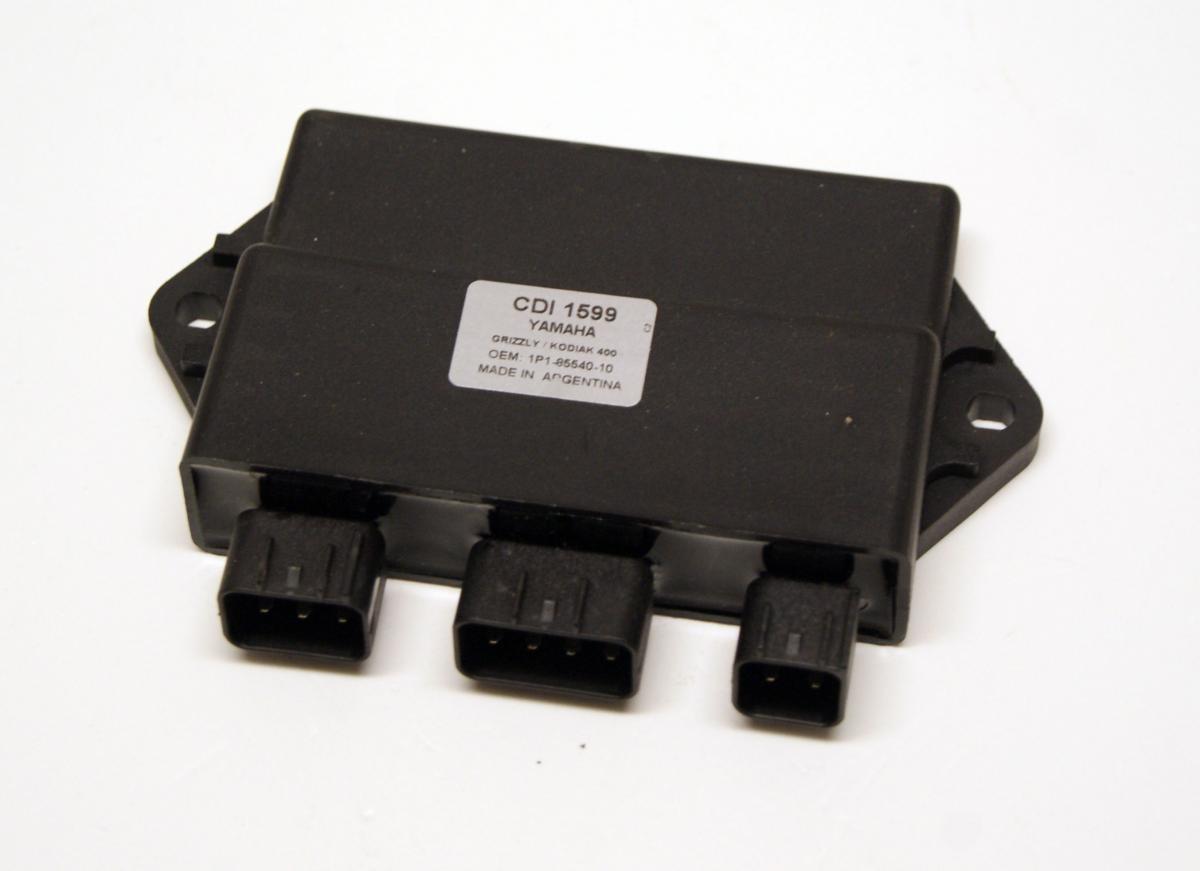

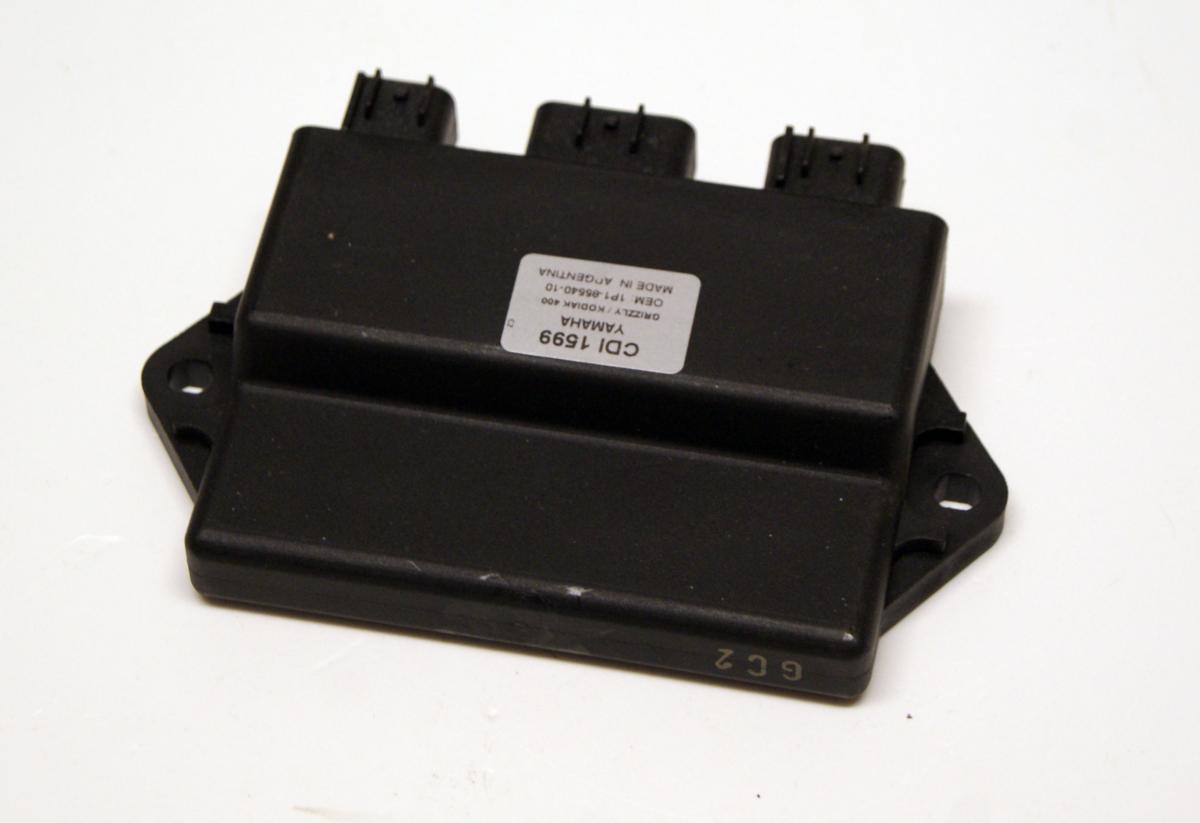

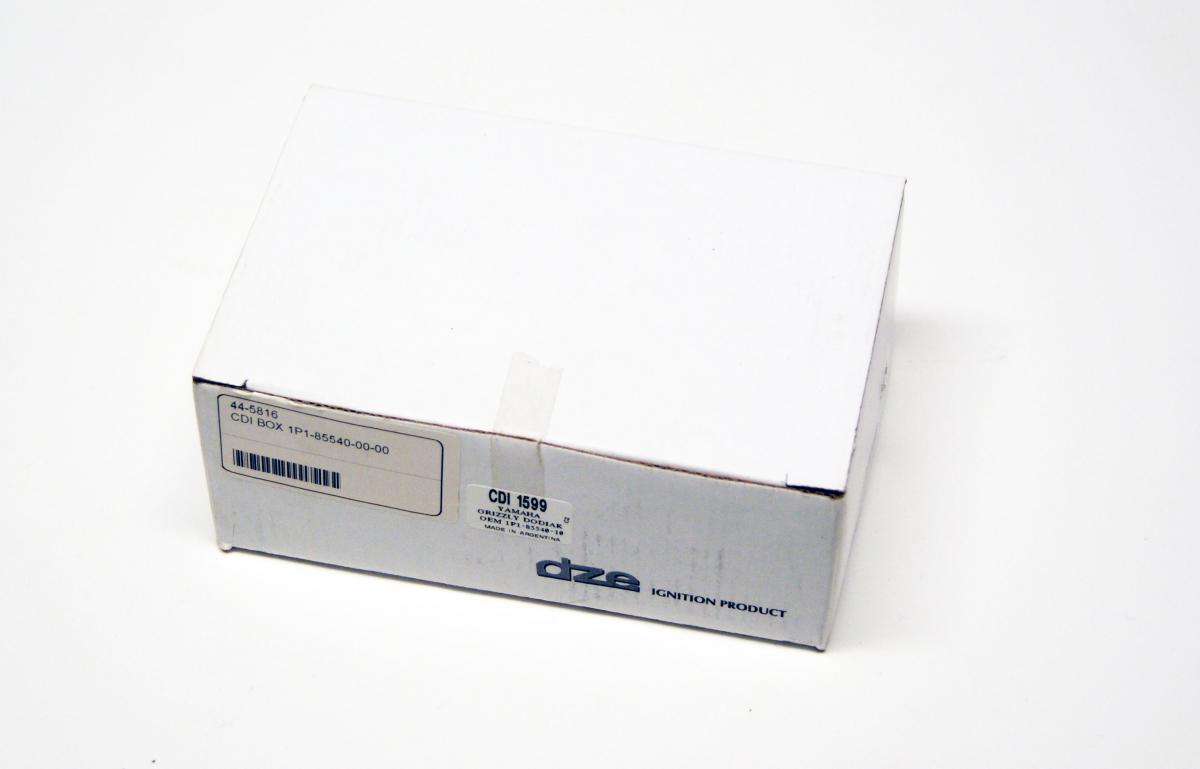

• DZE: 1599
• Arrowhead: IYA6044

Vehicle Fitments

• Yamaha Kodiak 400 4WD (YFM4FAT): 2005
• Yamaha Kodiak 400 4WD Hunter (YFM4FAHT): 2005
• Yamaha Kodiak 400 4WD (YFM4FAV): 2006
• Yamaha Kodiak 400 4WD Hunter (YFM4FAHV): 2006
• Yamaha Grizzly 400 (YFM4FGW): 2007
• Yamaha Grizzly 400 Hunter (YFM4FGHW): 2007
• Yamaha Grizzly 400 4WD (YFM4FGX): 2008
• Yamaha Grizzly 400 4WD Hunter (YFM4FGHX): 2008
