Ricks Electronics Cdi Box Honda 30410-ha8-003, at-01554 15-617 Dze 10195
0 Reviews
Stock Out
Categories:
CDI BoxSKU:
44-461.RHonda
ATC 250cc ES (1986-1987)
ATC 250cc ESH (1987) -
ATC 250cc ESJ (1988)
ATC 250cc SX (1986-1987)
TRX 250cc (1985-1986-1987)
TRX 250cc H (1987)
| Technical information | |
| Ignition timing | ADVANCE |
| Electronic system (type) | ANALOGICAL |
| Power supply (input) | COIL (AC) |
| # outputs (# output) | one |
| Height | 23 [mm] |
| Width | 38 [mm] |
| Length | 68 [mm] |
| # terminals (# terminals) | 6 |
| Enhanced | DO NOT |
| DZE | |||||
| Brand | Model | Version | Displacement | Year | OEM code |
| Sling | ATC | SX | 250 | from 1986 to 1987 | |
| Sling | ATC | IS J | 250 | 1988 | |
| Sling | ATC | IT IS | 250 | from 1986 to 1987 | |
| Sling | ATC | IT'S H | 250 | 1987 | 30410-HA8-003 |
| Sling | ATC | IT'S H | 250 | 1987 | |
| Sling | TRX | H | 250 | 1987 | |
| Sling | TRX | 250 | from 1985 to 1987 | ||
- .
- Direct oem replacement.
- All products are factory tested for 100% reliability at point of sale.
- Designed to handle increased power loads.
- DZE Racing products are a high quality replacement part and carries our guarantee of your satisfaction.

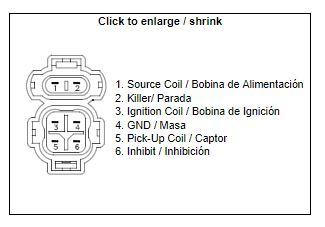

- Please check the image and connection plugs before ordering to avoid mistakes.
- Note. No Returns on Electrical Parts.
Part No. 44-461
Cross reference numbers ONLY.
30410-HA8-003 IHA6036 K&L 20-4346 RICKS 15-617 OEM 30410-HA8-003
HONDA ATC 250ES Big Red 1986-87, HONDA ATC 250SX 1986-87 HONDA TRX 250 Fourtrax 1985-87,
Description Purchase this Honda 30410-HA8-003 MODULE, IGN CONT --- MODULE, IGNITION CONTROL (CDI) (Honda Code 1873785) This Honda 30410-HA8-003 MODULE, IGN CONT is also used on these models and components: 1985 TRX250 A WIRE HARNESS 1986 ATC250ES A WIRE HARNESS 1986 ATC250SX A WIRE HARNESS + BATTERY 1986 TRX250 A WIRE HARNESS 1987 ATC250ES A WIRE HARNESS 1987 ATC250SX A WIRE HARNESS + BATTERY 1987 TRX250 A WIRE HARNESS
