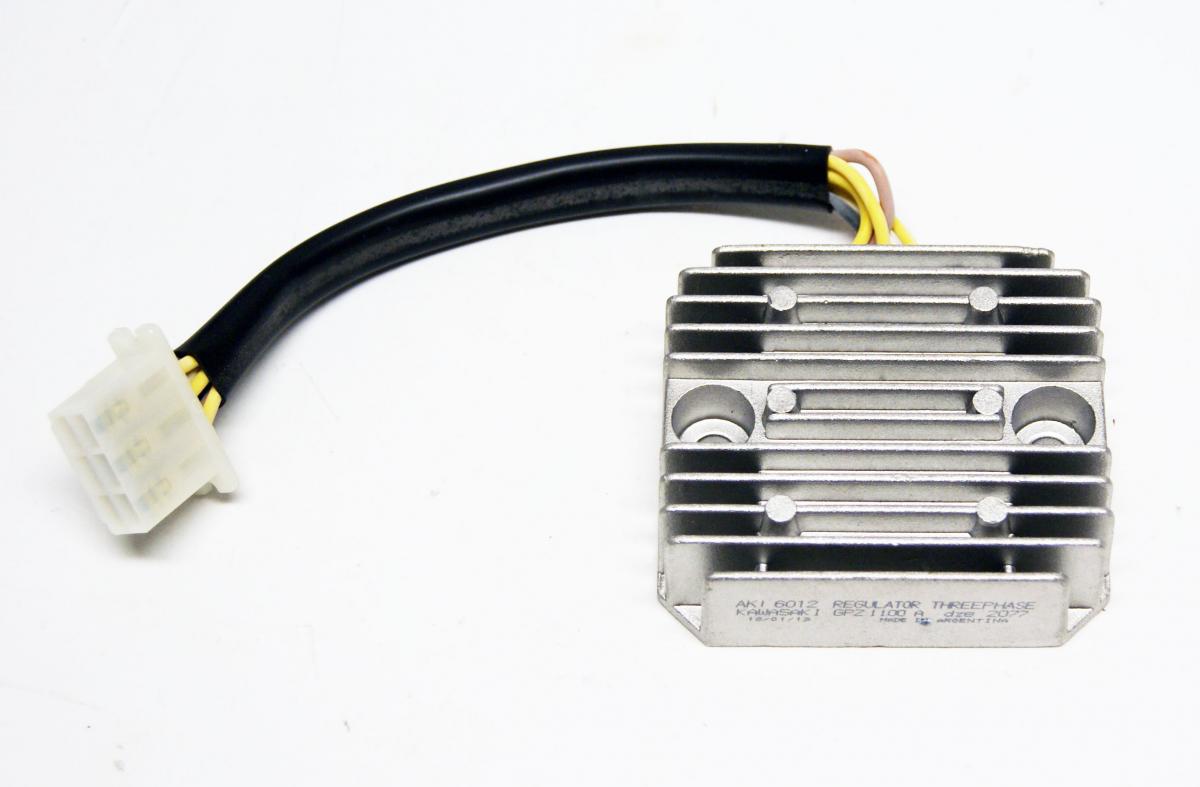

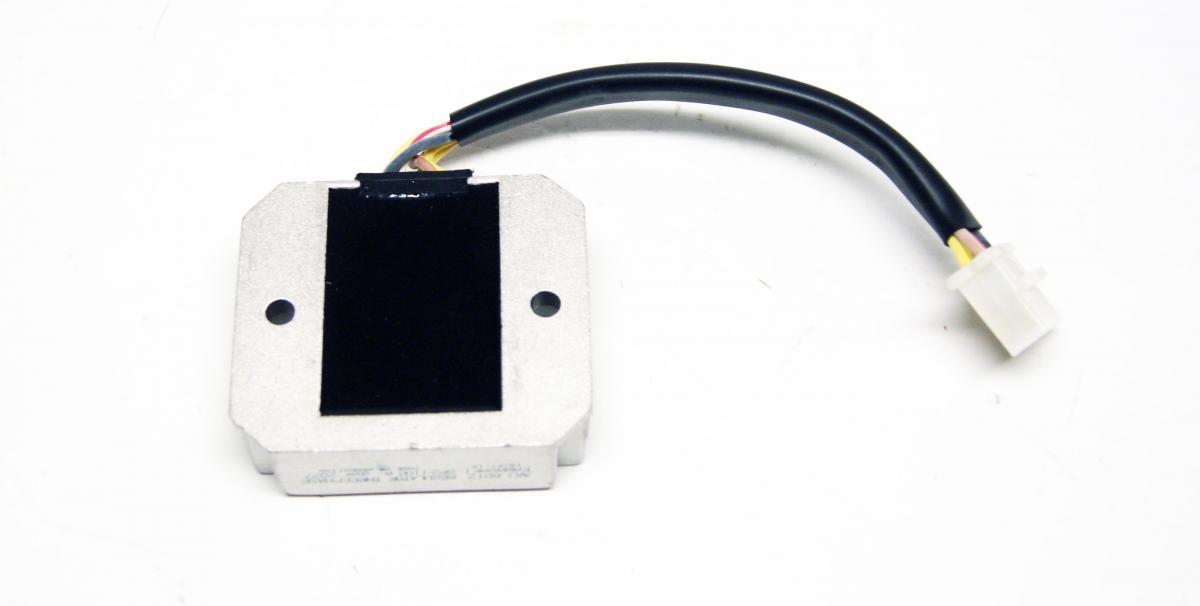

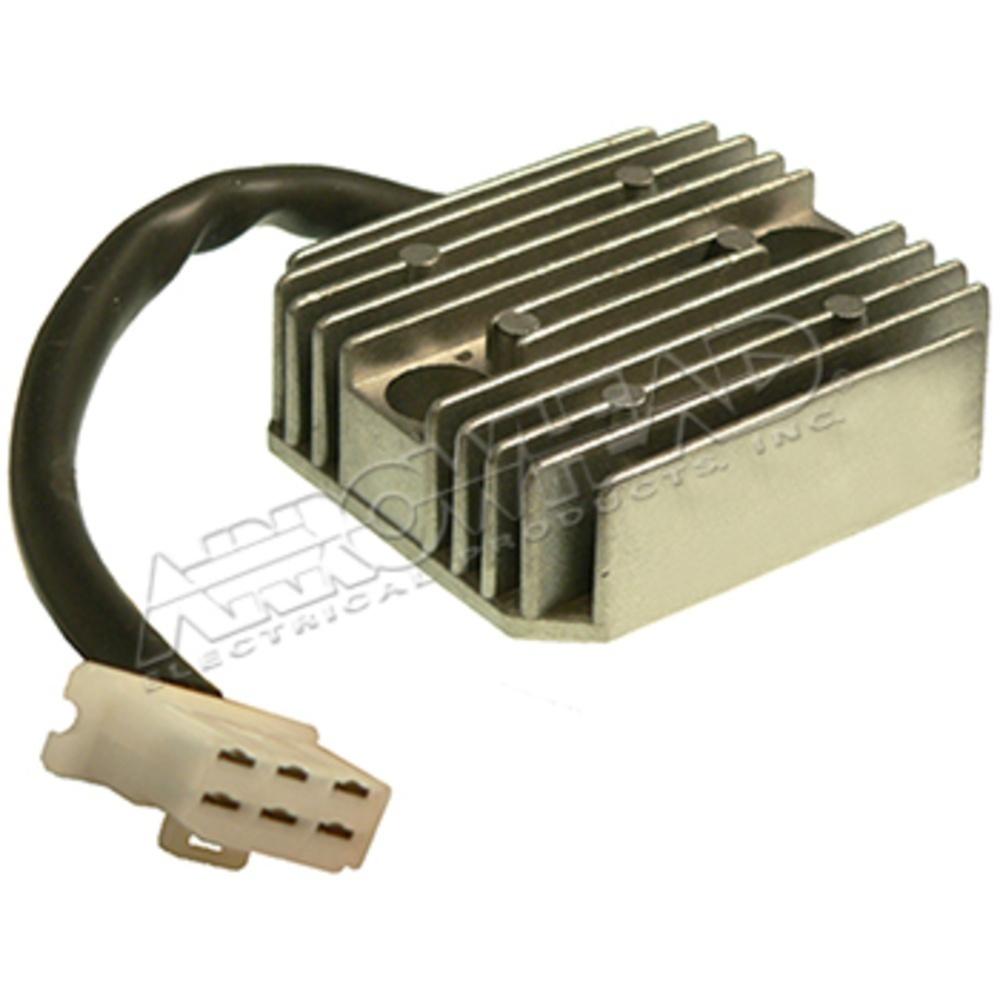

A high-quality SCR regulator/rectifier designed for Kawasaki motorcycles, this 12V, 25A unit is built to meet or exceed OEM standards. It is a direct replacement for various Kawasaki models, engineered for reliable performance and durability. Featuring three-phase input and a built-in sensor, it ensures efficient operation under increased power loads.

Features

• SCR technology for stable and efficient operation.
• Direct OEM replacement for precise compatibility.
• Designed to handle increased power loads.
• Factory-tested for 100% reliability.
• Built-in sensor for enhanced functionality.

Specifications

• Voltage: 12V
• Current: 25A
• Input Type: Three-phase
• Output Type: DC
• Dimensions: 90 x 80 x 28 mm
• Pitch: 67 mm
• Sensor: Yes

Compatible Models

Kawasaki

• KZ1000 1000cc (1981–1983)
• KZ1000 CSR 1000cc (1981–1982)
• KZ1000 Eddie Lawson Replica 1000cc (1982–1983)
• KZ1000 LTD 1000cc (1981–1982)
• KZ1000 Police 1000cc (1982–2005)
• KZ1100 GPZ 1100cc (1981–1982)
• KZ1100 LTD Shaft 1100cc (1983)
• KZ1100 Shaft 1100cc (1981–1983)
• KZ1100 Spectre 1100cc (1982–1983)
• ZX750 750R GPZ Turbo 748cc (1983–1984)
• ZX1100 GPZ 1100cc (1983–1984)

Cross-Reference OEM Numbers

• 21066-1018
• 21066-1028
• 21066-1030
• SH532-12
• SH532-12C

Replaces:

• AHI6012 (Arrowhead)
• 230-58129 (J & N)
• 8099-1403 (PIC)
• 716865 (Hi Level)
• 463910, 46-3910 (Tucker Rocky)

Note: Electrical parts are non-returnable.

Part Number: 44-3852
