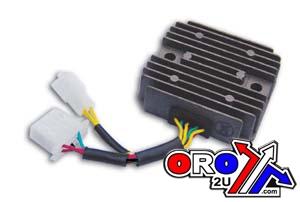

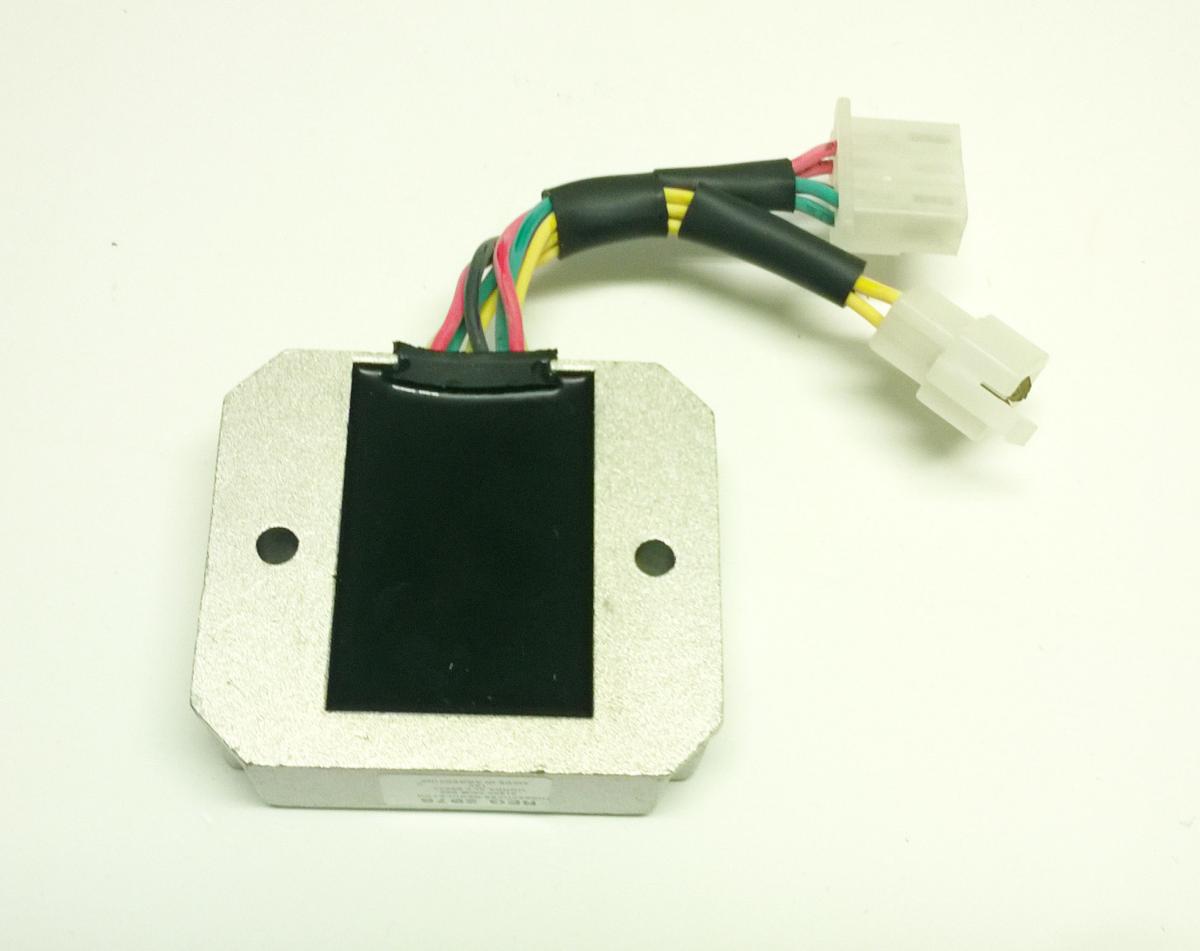

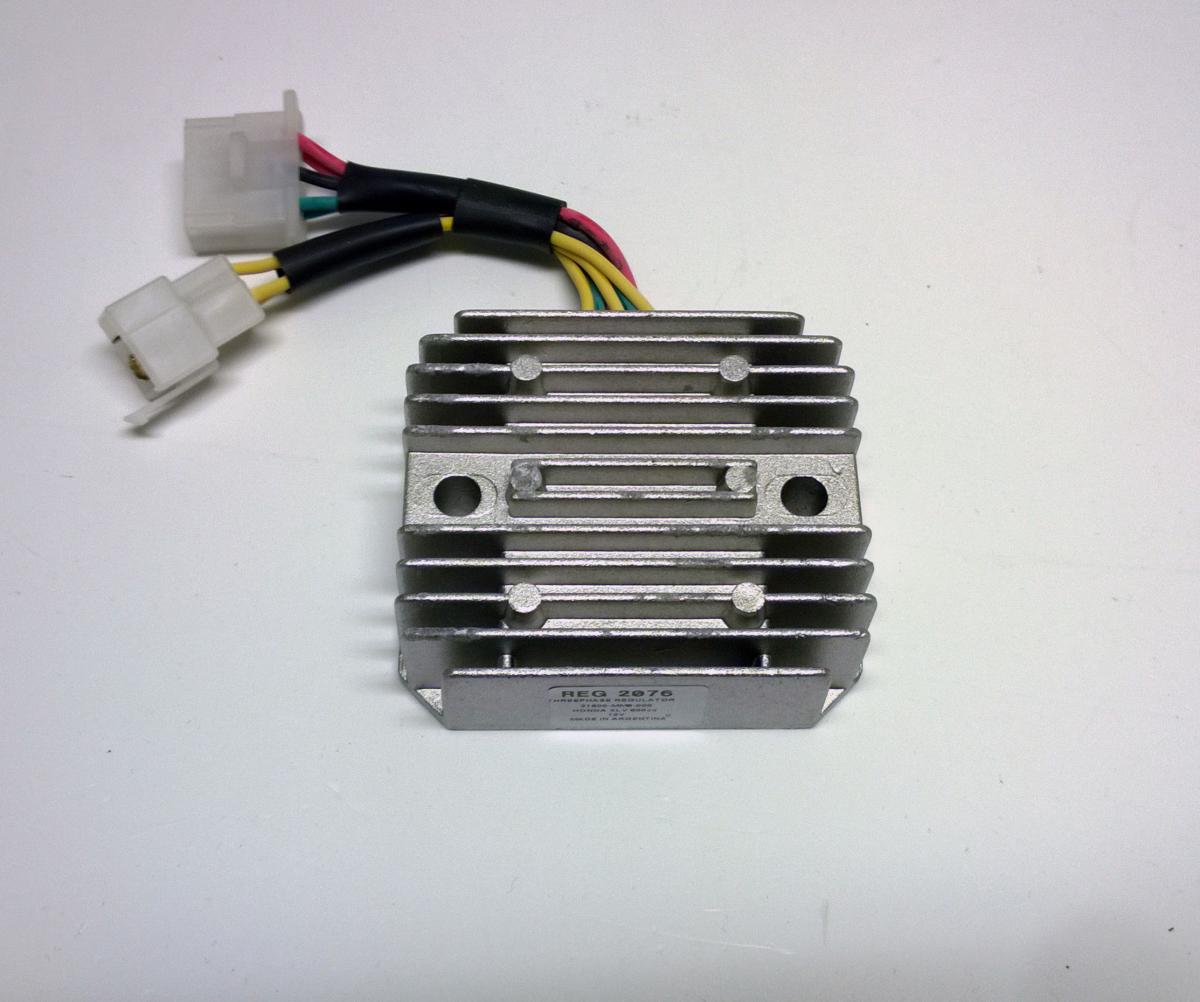

This motorcycle voltage regulator is a replacement charging-system component for the listed Honda models. It takes a three-phase input and provides a regulated DC output for the motorcycle’s electrical system.

Features

• Direct replacement for the listed applications.
• Fitted with a sensor.

Specifications

• Voltage: 12 V
• Current rating: 25 A
• Input: three-phase
• Output: DC
• Technology: SCR
• Dimensions: 90 × 80 × 28 mm (length × width × height)
• Mounting pitch: 67 mm

Cross-Reference OEM Part Numbers

• Honda: 31600-MM9-000, 31600-MS8-000, 31600-KAB-901, 31600-MF2-008
• Shindengen: SH538A, SH538A-12
• Arrowhead: AHA6062
• J & N: 230-58109
• Hi Level: 715745, 715800
• DZE: DZE2076

Vehicle Fitments

• Honda XLV Transalp 600 cc: 1987–1990
• Honda XRV Africa Twin 650 cc: 1988–1989
