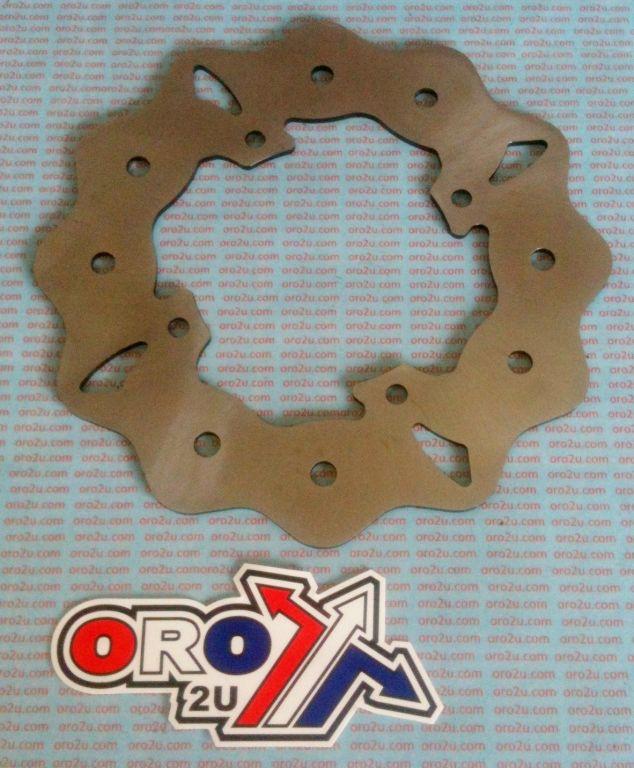

This Psychic rear brake disc is a replacement rotor for the rear braking system on selected Kawasaki and Suzuki off-road motorcycles. It is designed to provide the braking surface for the rear brake pads and serves as a direct replacement for the original rear disc on the listed applications.

Features

• Rear brake disc rotor
• Direct OE replacement
• Compatible with any type of brake pad
• Lightweight rotor design
• Intended to help dissipate unwanted heat during braking

Specifications

• Material: heat-treated SUS420 stainless steel
• Tempered stainless steel construction
• Hardness: HRC 32-36
• Outer diameter: 190 mm
• Inner diameter: 84 mm
• Thickness: 3 mm
• Number of bolt holes: 4
• Hole diameter: 6.5 mm
• Pitch: 100 mm
• Countersink: 90°

Cross-Reference OEM Part Numbers

• Psychic: MX-05532W
• 40-224.D.WAVE
• Kawasaki: 41080-1269
• Suzuki: 69211-02B40
• Moto-Master: 110212
• MD6025D

Vehicle Fitments

• Kawasaki KX80, 1988-2000, rear
• Kawasaki KX85, 2001-2023, rear
• Kawasaki KX100, 1995-2021, rear
• Kawasaki KX112, 2022-2023, rear
• Suzuki RM80, 1986-2001, rear
• Suzuki RM85, 2002-2006, rear
• Suzuki RM100, 2003, rear
