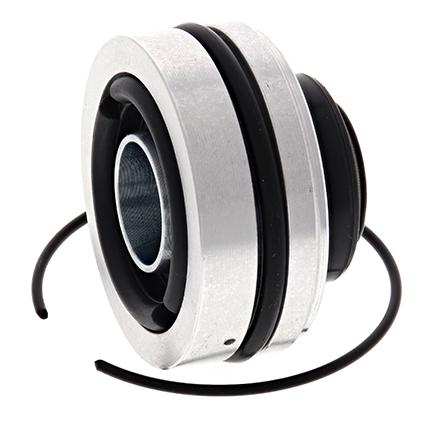

Rear Shock Seal Head Kit - ALLBALLS 37-1127

Fitment:
Husqvarna:

• FC 250 (EURO) 2015
• FC 250 (2014-2018)
• FC 350 (2014-2018)
• FC 450 (EURO) 2015
• FC 450 (2014-2018)
• FC 450 Rockstar Edition 2018
• FE 250 (2014-2018)
• FE 350 (2014-2018)
• FE 350S (2015-2016)
• FE 450 (2014-2018)
• FE 501 (2014-2018)
• FE 501S (2015-2016)
• FS 450 (2018)
• FX 350 (2017-2018)
• FX 450 (2018)
• TC 125 (2014-2018)
• TC 250 (2014-2018)
• TE 125 (2015-2016)
• TE 150 (2017-2018)
• TE 250 (2014-2018)
• TE 250 EFI (2018)
• TE 300 (2014-2018)
• TX 300 (2017-2018)

KTM:

• SX 125 (2012-2018)
• SX 150 (2012-2018)
• SX 250 (2012-2018)
• SX-F 250 (2011-2018)
• SX-F 250 Factory Edition (2015)
• SX-F 350 (2011-2018)
• SX-F 450 (2011-2018)
• SX-F 450 Factory Edition (2015-2016)
• XC 150 (2012-2014)
• XC 250 (2012-2018)
• XC 300 (2012-2018)
• XC-F 250 (2011-2018)
• XC-F 350 (2011-2018)
• XC-F 450 (2013-2018)

Product Features:

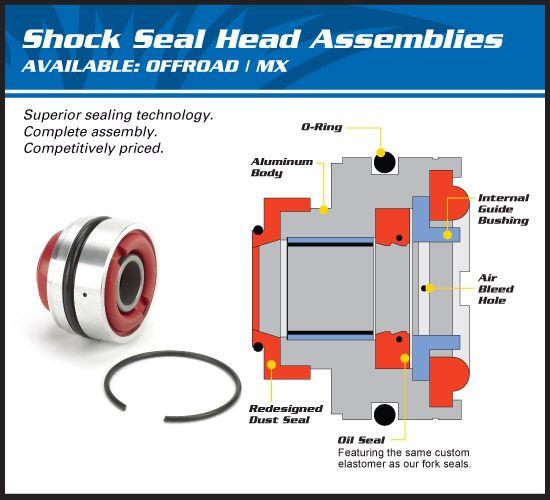

• Complete assemblies, ready to install into the shock body.
• Made from 6061-T6 aluminum and the same custom elastomer as Moose Racing's fork seals.
• All have air bleed holes to help remove air from the oil reservoir during installation.
• Double-lip oil seal design keeps out dirt and reduces friction.
• Some models have updated designs for easier installation.

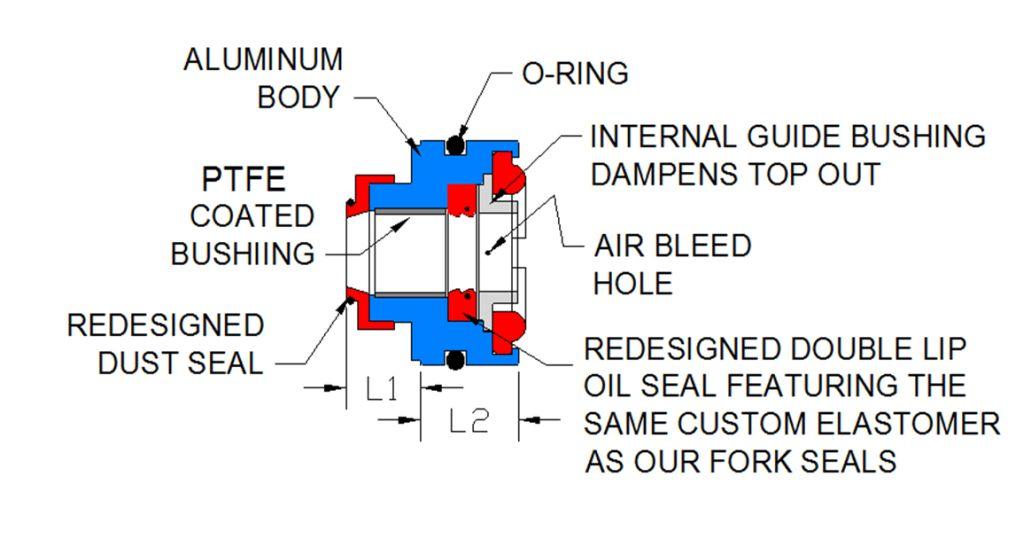

• Kits include: aluminum body, dust seal, bushing, oil seal, O-ring, internal guide bushing/washer, snap ring, and top-out bumper.

Dimensions:

• Rod Diameter: 18.00mm
• Outside Diameter: 50mm
• Accepts Top Out Spring
• Snap Clip: 53mm x 1.75mm (round)

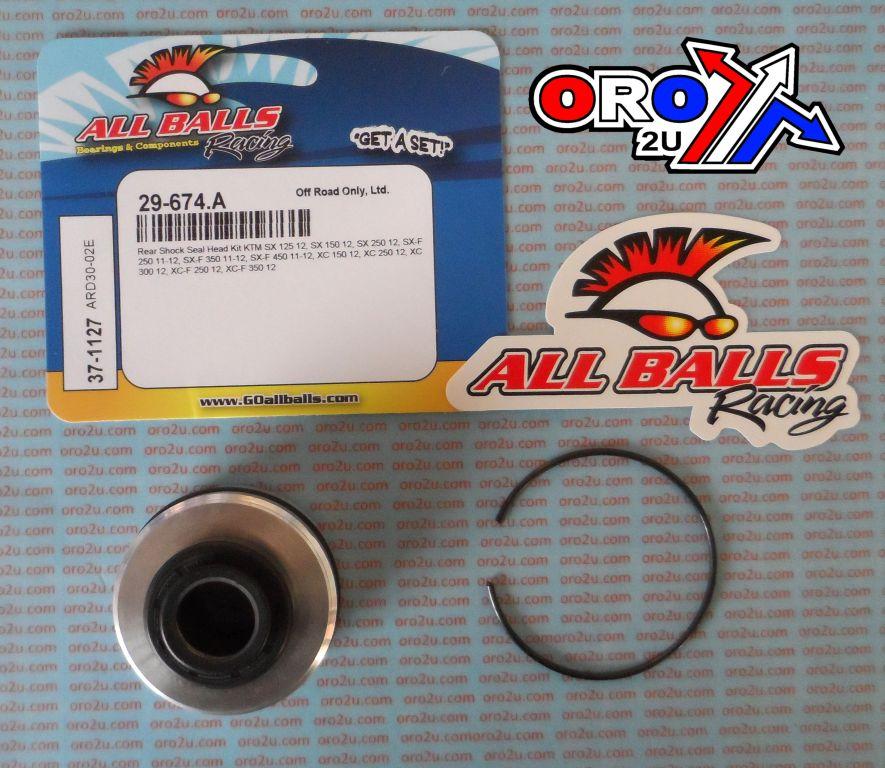

Part No.: ALLBALLS 37-1127
ORO Part No.: 29-674.A (Available at oro2u.com)
