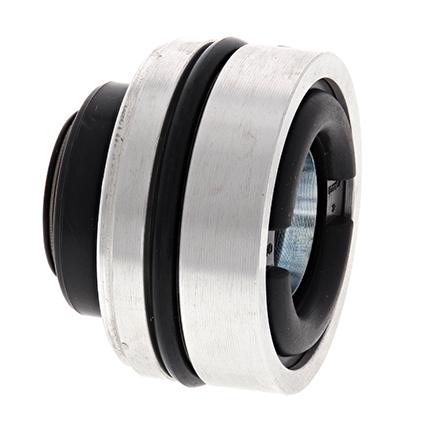

Shock Seal Head Kit - ALLBALLS 37-1120

Product Features:

• Complete assemblies, ready to install into the shock body.
• Made from 6061-T6 aluminum and the same custom elastomer as Moose Racing's fork seals.
• All have air bleed holes to help remove air from the oil reservoir during installation.
• Double-lip oil seal design keeps out dirt and reduces friction.
• Some models have updated designs for easier installation.

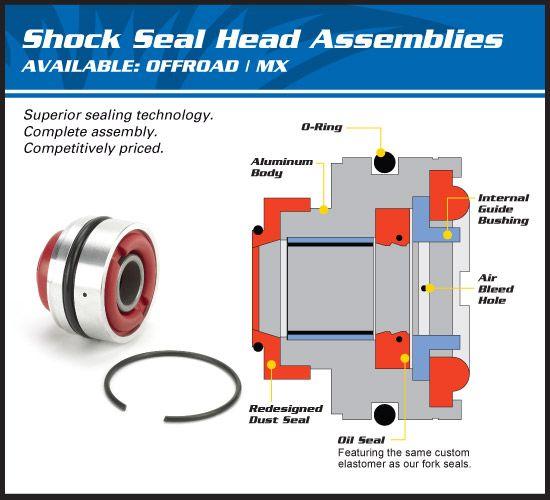

• Kits include: aluminum body, dust seal, bushing, oil seal, O-ring, internal guide bushing/washer, snap ring, and top-out bumper.

Fitment:
Husqvarna:

• TC 85 (2014-2018)

KTM:

• EXC-F 250 (2017-2018)
• EXC-F 350 (2017-2018)
• EXC-F 450 Six Days (2017-2018)
• EXC-F 500 (2017-2018)
• FREERIDE 250 R (2015-2017)
• FREERIDE 350 (EURO) (2015)
• SX 105 (2006-2011)
• SX 450 ATV (2010)
• SX 505 ATV (2010)
• SX 85 (2003-2018)
• SX 85 BW (2013-2018)
• SXS 85 (2013)
• XC 105 (2008-2009)
• XC 85 (2008-2009)
• XC-W 150 (2017-2018)
• XC-W 250 (2017-2018)
• XC-W 250 TPI (2018)
• XC-W 300 (2017-2018)
• XC-W 300 Six Days (2017-2018)

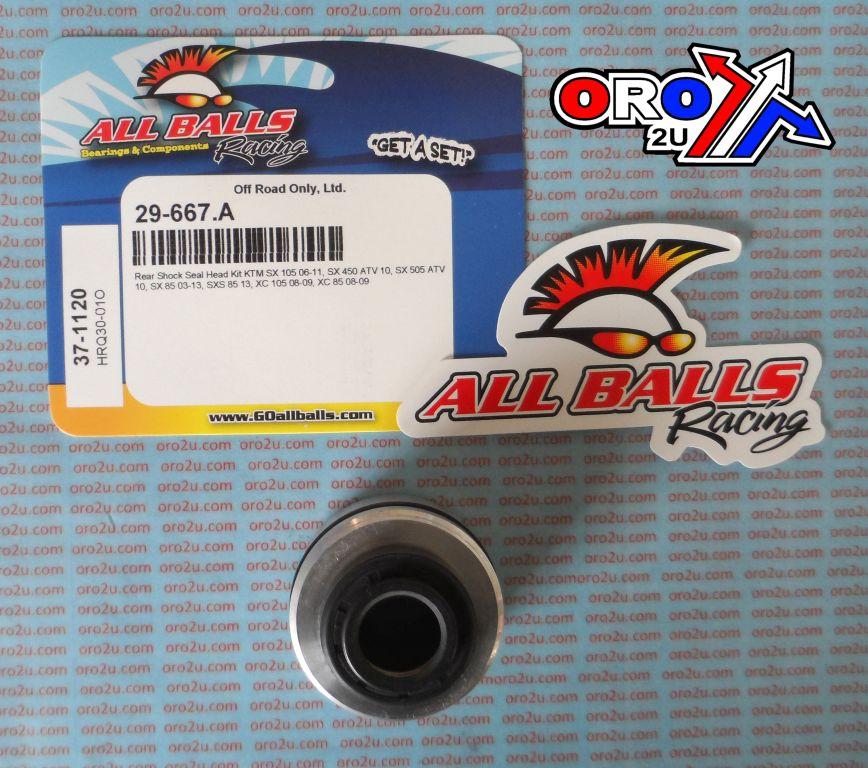

Part No.: ALLBALLS 37-1120
ORO Part No.: 29-667.A (Available at oro2u.com)

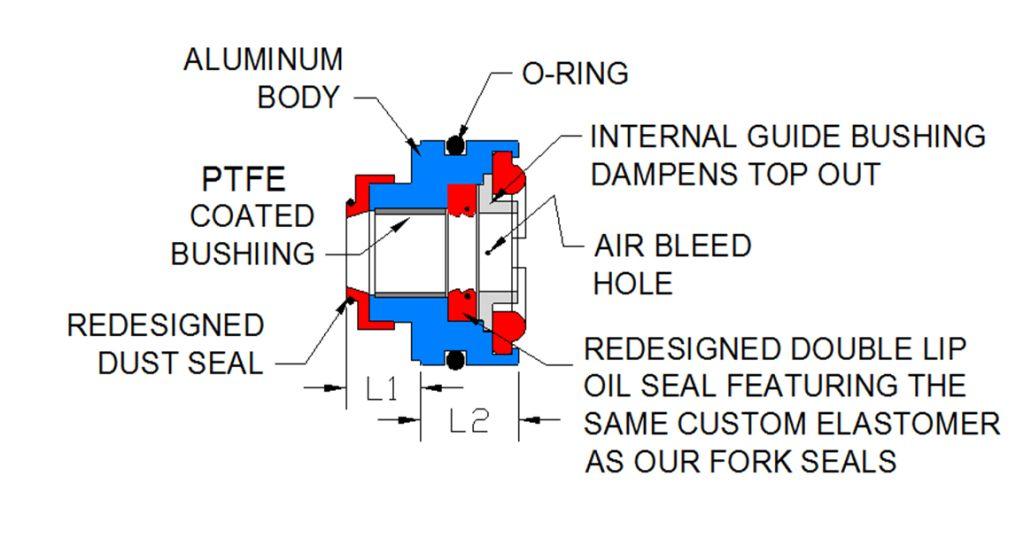

Dimensions:

• Rod Diameter: 18.00mm
• Outside Diameter: 46mm
• Length: 37.50mm
• L1 (Length 1): 15.5mm
• L2 (Length 2): 22mm
