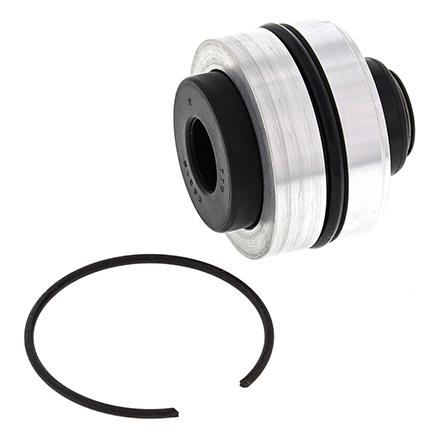

Shock Seal Head Kit - ALLBALLS 37-1116 (1314-0121)

Product Features:

• Complete assemblies, ready to install into the shock body.
• Made from 6061-T6 aluminum and the same custom elastomer as Moose Racing's fork seals.
• All have air bleed holes to help remove air from the oil reservoir during installation.
• Double-lip oil seal design keeps out dirt and reduces friction.
• Some models have updated designs for easier installation.

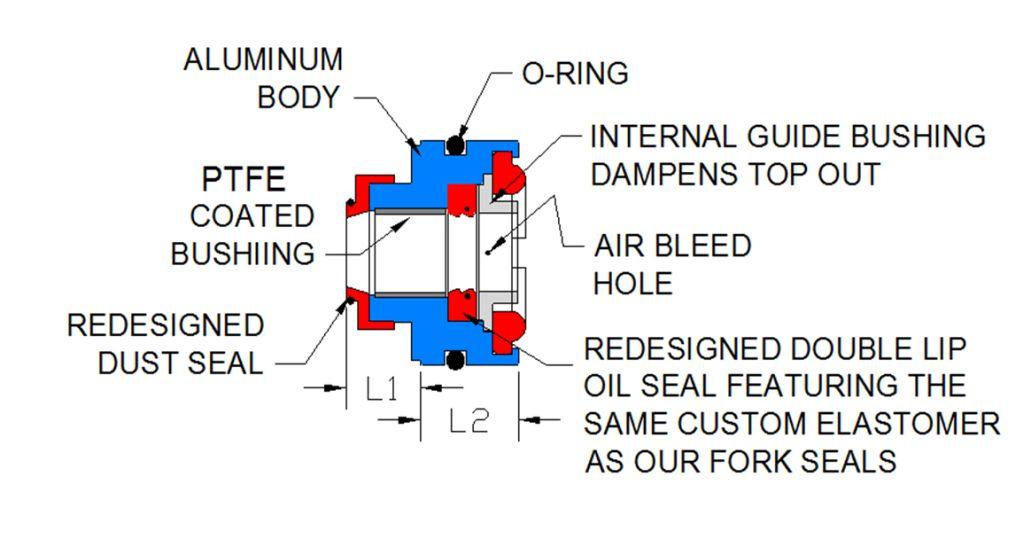

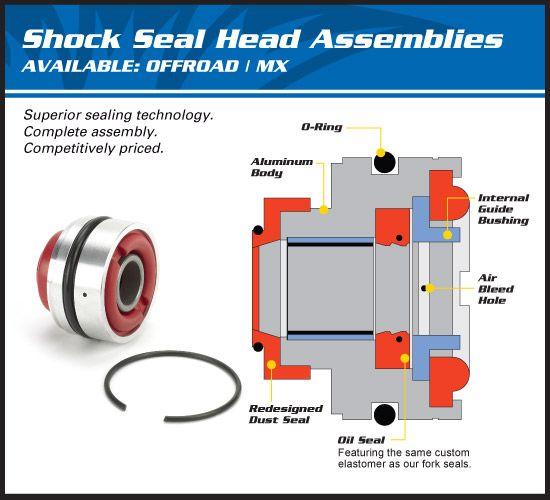

• Kits include: aluminum body, dust seal, bushing, oil seal, O-ring, internal guide bushing/washer, snap ring, and top-out bumper.

Dimensions:

• Inside Diameter: 14mm
• Outside Diameter: 46mm
• Snap Ring: 46mm x 2mm (round)

Fitment:
Yamaha:

• IT175 1981-1983
• YZ100 1982-1983
• YZ125 1978-1988
• YZ250 1980-1988
• YZ465 1980-1981
• YZ490 1983

Part No.: ALLBALLS 37-1116
ORO Part No.: 29-663.A (Available at oro2u.com)

Size:

• Rod Diameter: 14.00mm
• Outside Diameter: 46mm
• Length: 43.00mm
• L1 (Length 1): 14mm
• L2 (Length 2): 29mm
