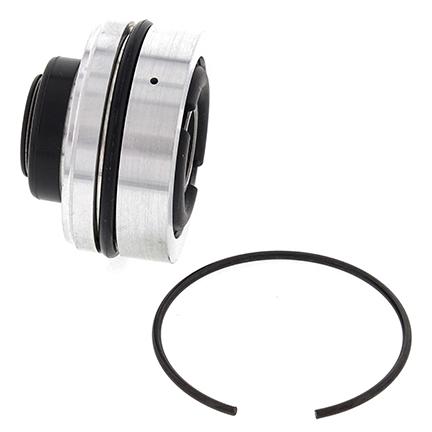

Shock Seal Head Kit - ALLBALLS 37-1115 (1314-0270)

Product Features:

• Complete assemblies, ready to install into the shock body.
• Made from 6061-T6 aluminum and the same custom elastomer as Moose Racing's fork seals.
• All have air bleed holes to help remove air from the oil reservoir during installation.
• Double-lip oil seal design keeps out dirt and reduces friction.
• Some models have updated designs for easier installation.

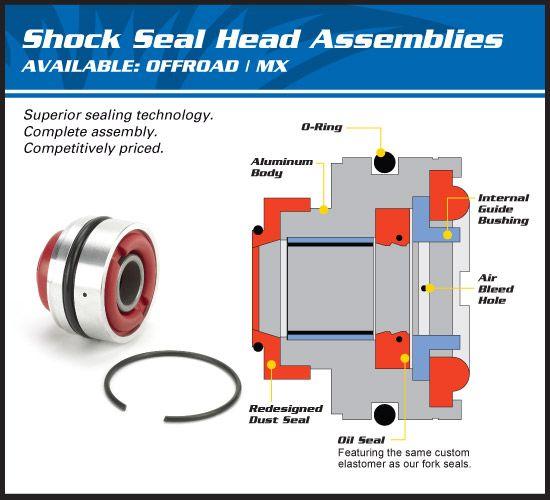

• Kits include: aluminum body, dust seal, bushing, oil seal, O-ring, internal guide bushing/washer, snap ring, and top-out bumper.

Fitment:
Yamaha:

• IT200 1984-1986
• YZ125 1984-1985
• YZ80 1981-1992
• 1986 Yamaha IT200
• 1985 Yamaha IT200
• 1984 Yamaha IT200
• 1985 Yamaha YZ125
• 1984 Yamaha YZ125
• 1992 Yamaha YZ80
• 1991 Yamaha YZ80
• 1990 Yamaha YZ80
• 1989 Yamaha YZ80
• 1988 Yamaha YZ80
• 1987 Yamaha YZ80
• 1986 Yamaha YZ80
• 1985 Yamaha YZ80
• 1984 Yamaha YZ80
• 1983 Yamaha YZ80
• 1982 Yamaha YZ80
• 1981 Yamaha YZ80

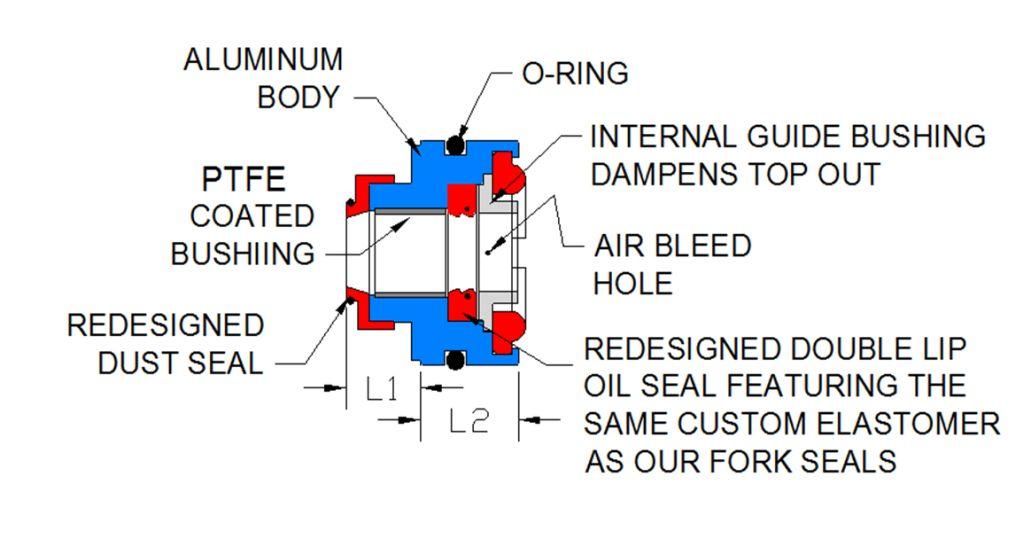

Dimensions:

• Rod Diameter: 12.5mm
• Outside Diameter: 40mm
• Length: 40.25mm
• L1 (Length 1): 12.5mm
• L2 (Length 2): 27.75mm

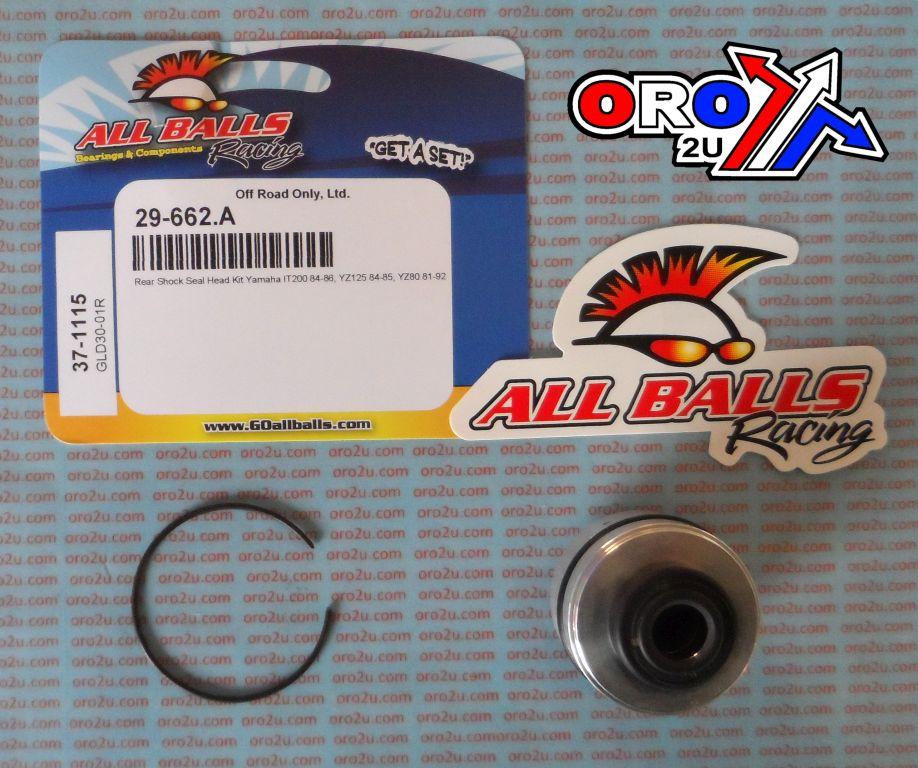

Part No.: ALLBALLS 37-1115
ORO Part No.: 29-662.A (Available at oro2u.com)
