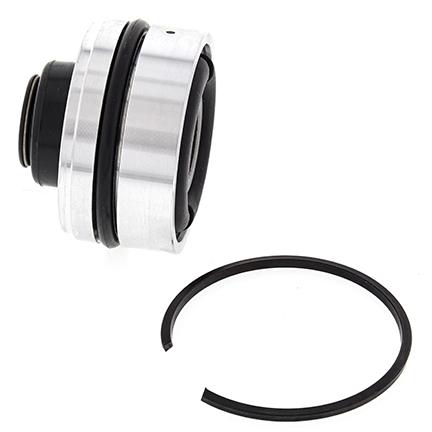

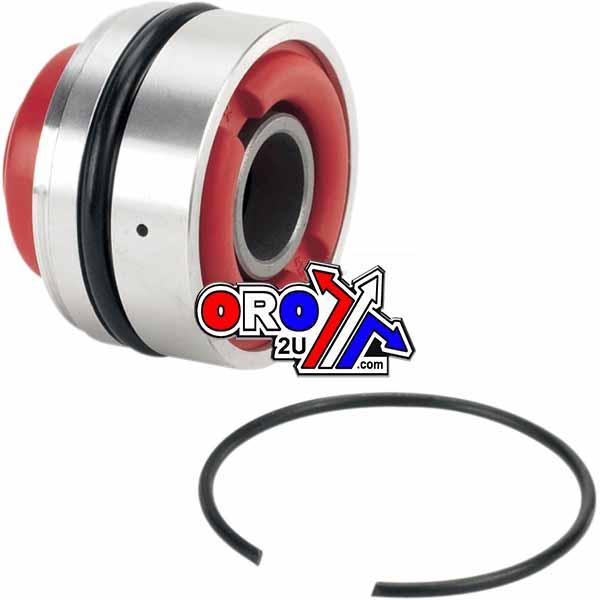

Rear Shock Seal Head Kit - ALLBALLS 37-1114

Fitment:
Honda:

• CR250R 1988-1990
• CR450R 1981
• CR500R 1988-1990
• XR400R 1996-2004
• XR600R 1991-2000
• 1990 Honda CR250R
• 1989 Honda CR250R
• 1988 Honda CR250R
• 1981 Honda CR450R Elsinore
• 1990 Honda CR500R
• 1989 Honda CR500R
• 1988 Honda CR500R
• 2004 Honda XR400R
• 2003 Honda XR400R
• 2002 Honda XR400R
• 2001 Honda XR400R
• 2000 Honda XR400R
• 1999 Honda XR400R
• 1998 Honda XR400R
• 1997 Honda XR400R
• 1996 Honda XR400R
• 2000 Honda XR600R
• 1999 Honda XR600R
• 1998 Honda XR600R
• 1997 Honda XR600R
• 1996 Honda XR600R
• 1995 Honda XR600R
• 1994 Honda XR600R
• 1993 Honda XR600R
• 1992 Honda XR600R
• 1991 Honda XR600R

Product Features:

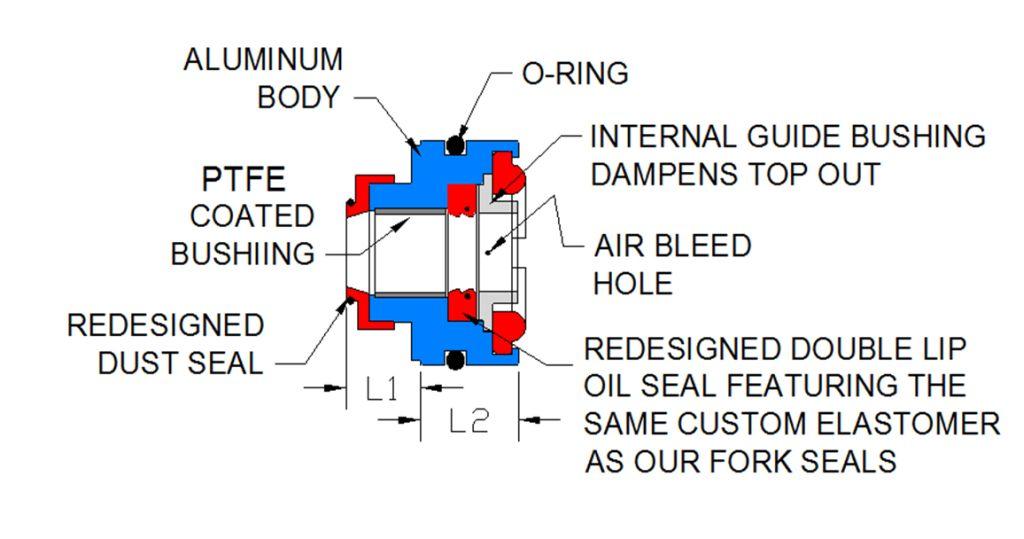

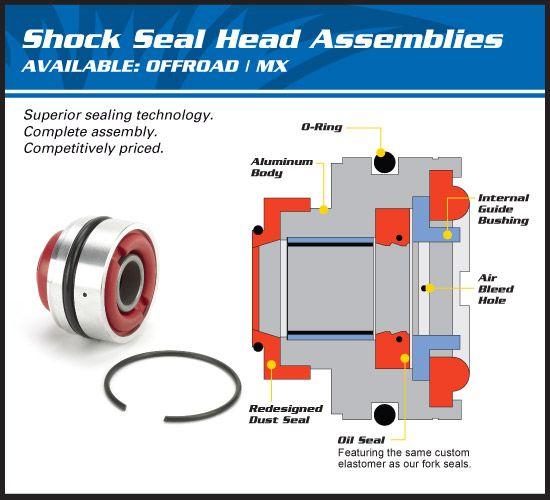

• Complete assemblies, ready to install into the shock body.
• Made from 6061-T6 aluminum and the same custom elastomer as Moose Racing's fork seals.
• All have air bleed holes to help remove air from the oil reservoir during installation.
• Double-lip oil seal design keeps out dirt and reduces friction.
• Some models have updated designs for easier installation.
• Kits include: aluminum body, dust seal, bushing, oil seal, O-ring, internal guide bushing/washer, snap ring, and top-out bumper.
• Made in the U.S.A.

Dimensions:

• Rod Diameter: 14mm
• Outside Diameter: 44mm
• Length: 35.50mm
• L1 (Length 1): 14mm
• L2 (Length 2): 21.50mm
• Snap Ring: 44mm x 2mm (square)

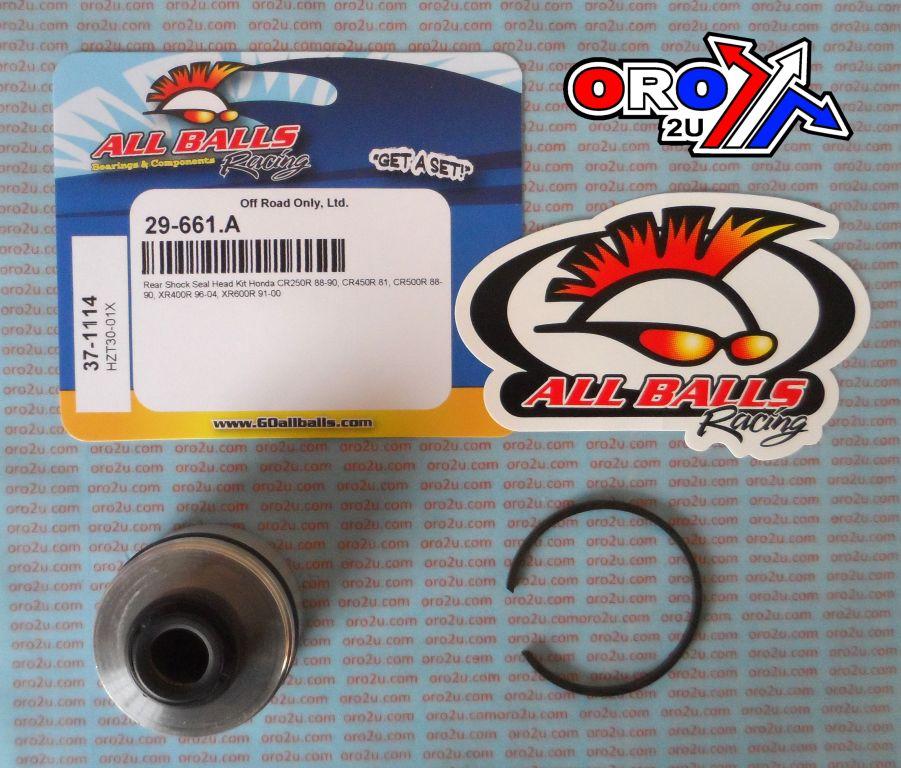

Part No.: ALLBALLS 37-1114
ORO Part No.: 29-661.A (Available at oro2u.com)
