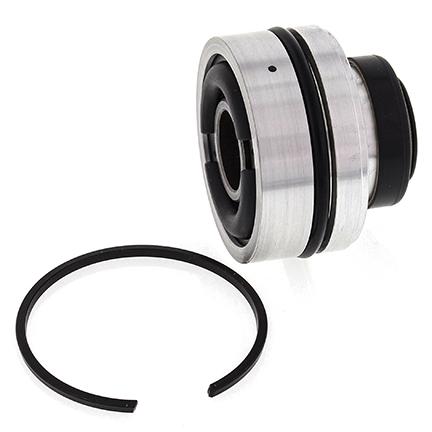

Shock Seal Head Kit - ALLBALLS 37-1113 (1314-0048)

Product Features:

• Complete assemblies, ready to install into the shock body.
• Made from 6061-T6 aluminum and the same custom elastomer as Moose Racing's fork seals.
• All have air bleed holes to help remove air from the oil reservoir during installation.
• Double-lip oil seal design keeps out dirt and reduces friction.
• Some models have updated designs for easier installation.

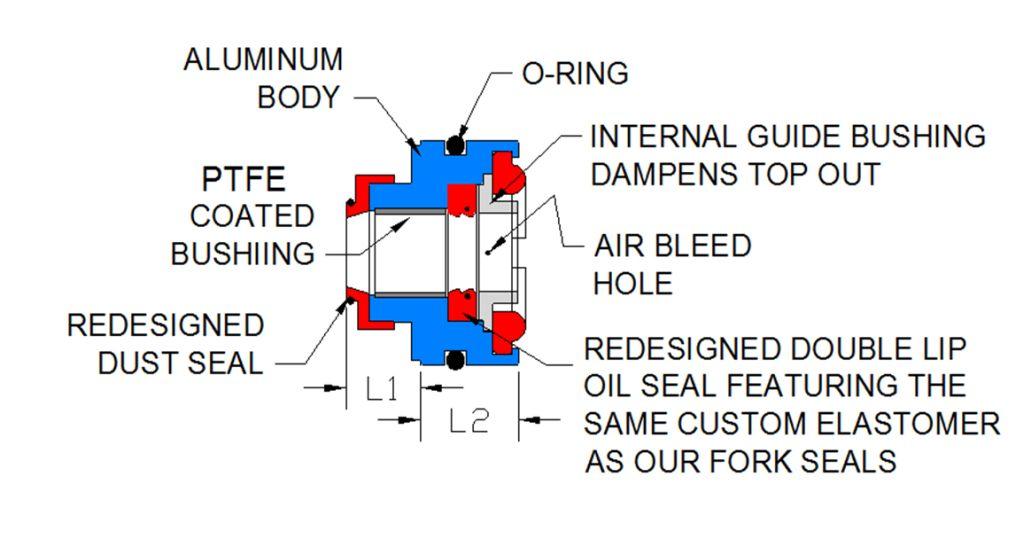

• Kits include: aluminum body, dust seal, bushing, oil seal, O-ring, internal guide bushing/washer, snap ring, and top-out bumper.

Dimensions:

• Inside Diameter: 16mm
• Outside Diameter: 46mm
• Snap Ring: 46mm x 2mm (square)

Fitment:
Honda:

• CR250R 1993-1999
• 1999 Honda CR250R
• 1998 Honda CR250R
• 1997 Honda CR250R
• 1994 Honda CR250R
• 1993 Honda CR250R

Suzuki:

• RM125 1992-1997
• RM250 1992-1997
• 1997 Suzuki RM125
• 1996 Suzuki RM125
• 1995 Suzuki RM125
• 1994 Suzuki RM125
• 1993 Suzuki RM125
• 1992 Suzuki RM125
• 1997 Suzuki RM250
• 1996 Suzuki RM250
• 1995 Suzuki RM250
• 1994 Suzuki RM250
• 1993 Suzuki RM250
• 1992 Suzuki RM250

Part No.: ALLBALLS 37-1113
ORO Part No.: 29-660.A (Available at oro2u.com)

Size:

• Rod: 16.00mm x OD 46mm
• Length: 39.50mm
• L1 (Length 1): 17mm
• L2 (Length 2): 22.50mm
