REAR SHOCK SEAL HEAD KIT - ALLBALLS 37-1011

Product Features:

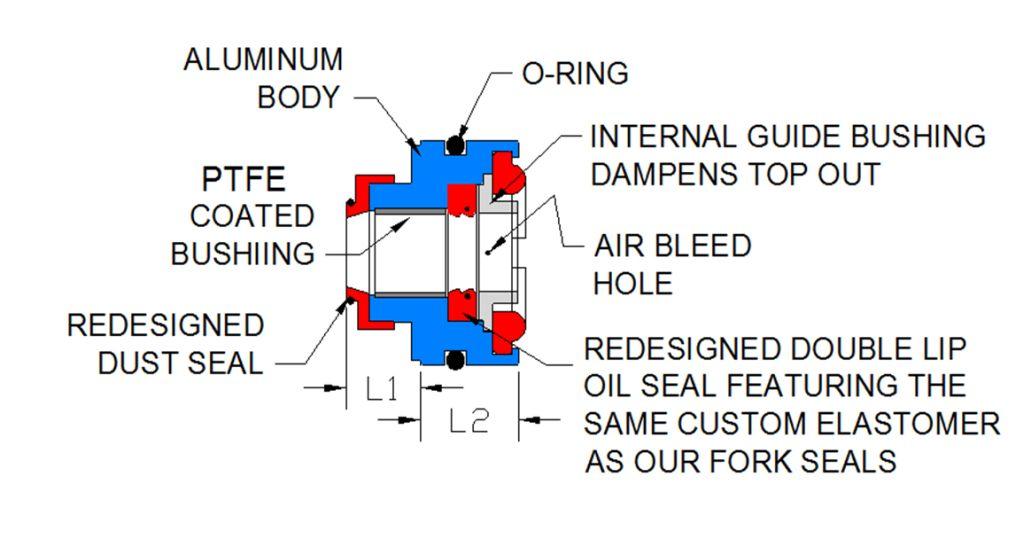

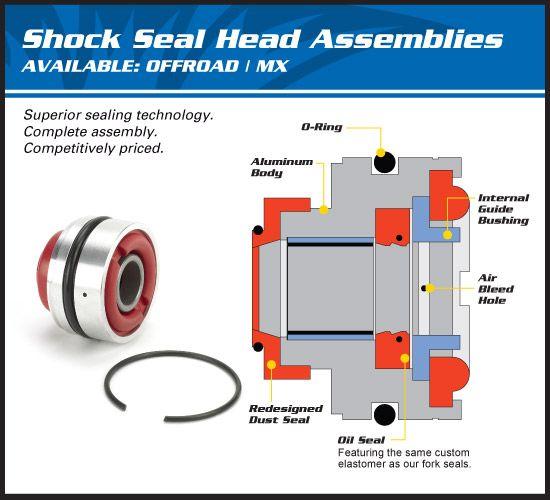

• Complete assemblies, ready to install into the shock body.
• Made from 6061-T6 aluminum and the same custom elastomer as Allballs Racing's fork seals.
• All have air bleed holes to help remove air from the oil reservoir during installation.
• Double-lip oil seal design keeps out dirt and reduces friction.
• Some models have updated designs for easier installation.
• Kits include: aluminum body, dust seal, bushing, oil seal, O-ring, internal guide bushing/washer, snap ring, and top-out bumper.

Fitment:
Honda:

• CR250R 1985-1987
• CR500R 1985-1987

Dimensions:

• Inside Diameter: 14mm
• Outside Diameter: 44mm
• Snap Ring: 44mm x 1.5mm (square)

Kit Contents:

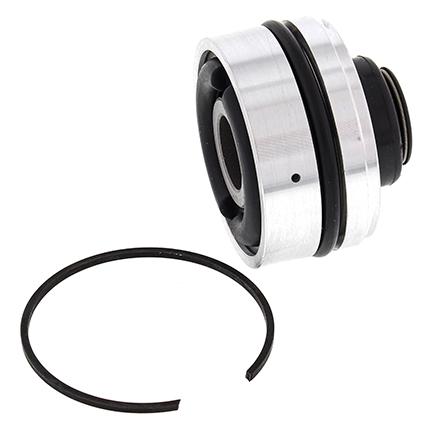

• Rear Shock Seal Head - 1
• Snap Ring - 1

Part No.: ALLBALLS 37-1011
ORO Part No.: 29-659.A (Available at oro2u.com)

Size:

• Rod: 14mm x OD 44mm
• Length: 36.00mm
• L1 (Rod length): 14mm
• L2 (Length): 22mm
