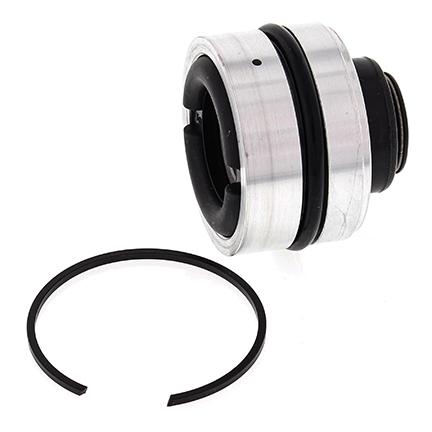

Shock Seal Head Kit - ALLBALLS 37-1006 (1314-0045)

Product Features:

• Complete assemblies, ready to install into the shock body.
• Made from 6061-T6 aluminum and the same custom elastomer as Moose Racing's fork seals.
• All have air bleed holes to help remove air from the oil reservoir during installation.
• Double-lip oil seal design keeps out dirt and reduces friction.
• Some models have updated designs for easier installation.

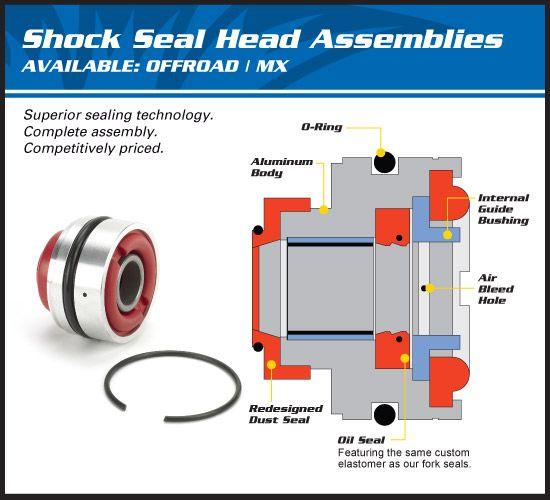

• Kits include: aluminum body, dust seal, bushing, oil seal, O-ring, internal guide bushing/washer, snap ring, and top-out bumper.

Fitment:
Arctic Cat:

• 400 DVX 2004-2008

Honda:

• CR80R 1996-2002
• CR80RB 1996-2002
• CR85R 2003-2007
• CR85RB 2003-2007
• CRF150R 2007-2018
• CRF150RB 2007-2018
• TRX250R 1986-1989
• TRX400EX 1999-2008
• TRX400X 2009-2014

Kawasaki:

• KFX400 2003-2006

Suzuki:

• LT-Z400 2003-2008

Dimensions:

• Rod Diameter: 14mm
• Outside Diameter: 40mm
• Length: 37.25mm
• L1 (Length 1): 14mm
• L2 (Length 2): 23.25mm
• Snap Ring: 40mm x 1.5mm (square)

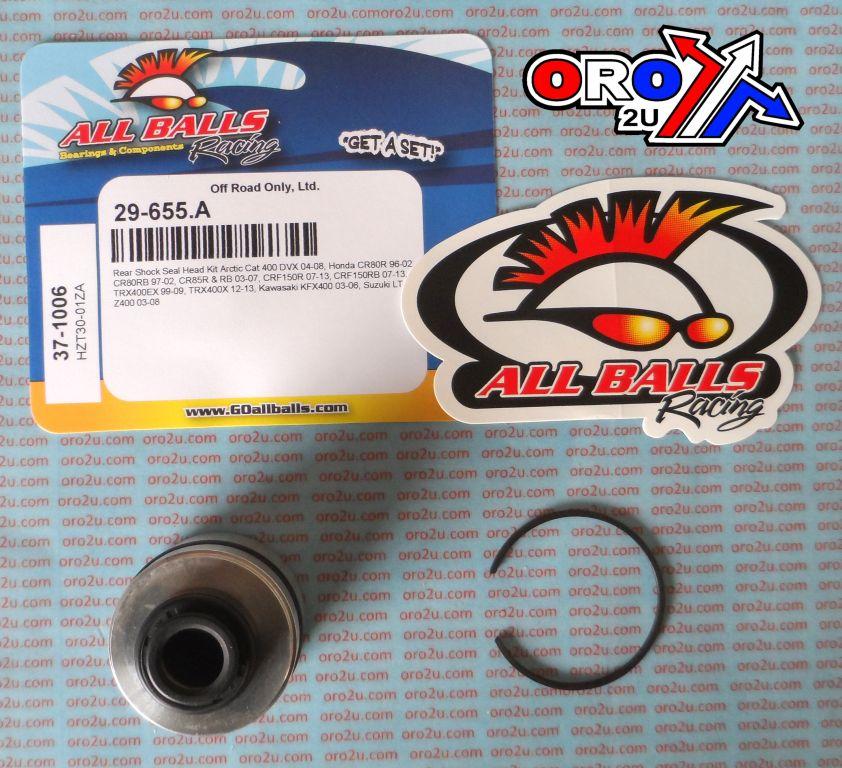

Part No.: ALLBALLS 37-1006
ORO Part No.: 29-655.A (Available at oro2u.com)
