Rear Shock Seal Head Kit - ALLBALLS 37-1001

Honda:

• CR250R 00-01
• CRF450R 09-16

Kawasaki:

• KLX400R 03
• KLX400R NON CA MODELS PUMPER CARB 04
• KLX400SR 03-04
• KX450F 09-14

Suzuki:

• DRZ400E 00-03
• DRZ400E CA MODEL CV CARB 04-07
• DRZ400E NON CA MODELS PUMPER CARB 04-07
• DRZ400K 00-03
• DRZ400S 00-17
• DRZ400SM 05-16
• RM125 98-03
• RM250 98-00

Yamaha:

• WR250F 15-17
• YZ250F 14-18
• YZ250FX 15-18
• YZ450F 10-18
• YZ450FX 2016-2018

Product Features:

• Complete assemblies, ready to install into the shock body.
• Made from 6061-T6 aluminum and custom elastomer, similar to Moose Racing fork seals.
• Includes air bleed holes to remove air from the oil reservoir during installation.
• Double-lip oil seal design keeps out dirt and reduces friction.
• Some models have updated designs for easier installation.

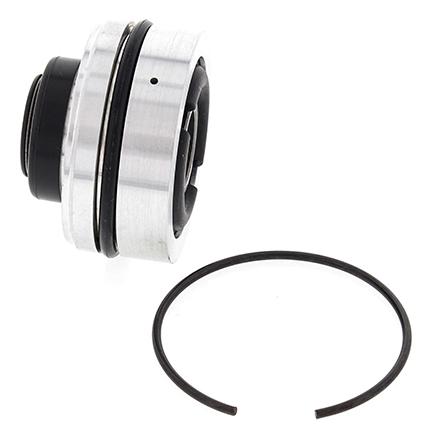

Kit Includes:

• Aluminum body
• Dust seal
• Bushing
• Oil seal
• O-ring
• Internal guide bushing/washer
• Snap ring
• Top-out bumper

Dimensions:

• Inside Diameter: 16mm
• Outside Diameter: 50mm
• Snap Ring: 50x2mm (round)
• Size: Rod 16.00mm x OD 50mm x Length 37mm / L1 15mm / L2 22mm

Part No.: ALLBALLS 37-1001
ORO Part No.: 29-650.A (Available at oro2u.com)
