FITMENTS

• 2007-2009 TRX420FA/FE/TE/TM
• 2007 TRX420FE 2A FRONT SHOCK ABSORBER
• 2007 TRX420FE A FRONT SHOCK ABSORBER
• 2007 TRX420FM 2A FRONT SHOCK ABSORBER
• 2007 TRX420FM A FRONT SHOCK ABSORBER
• 2008 TRX420FE 2A FRONT SHOCK ABSORBER
• 2008 TRX420FE A FRONT SHOCK ABSORBER
• 2008 TRX420FM 2A FRONT SHOCK ABSORBER

SPECIFICATIONS

• POSITION TOP HOLE I.D MM: 10
• TOP EYELET WIDTH MM: 21
• BOTTOM HOLE I.D MM: 10
• BOTTOM EYELET WIDTH MM: 24

• TUBE O.D MM: 38
• STROKE MM: 78.6

• SPRING OD MM: 73

• SPRING WIRE DIAMETER MM: 8.5
• SPRING RATE LBS/INCH: -

• SPRING RATE KG/MM: -

• CENTER TO CENTER MM: 368

• CENTER TO CENTER IN: 14 1/2

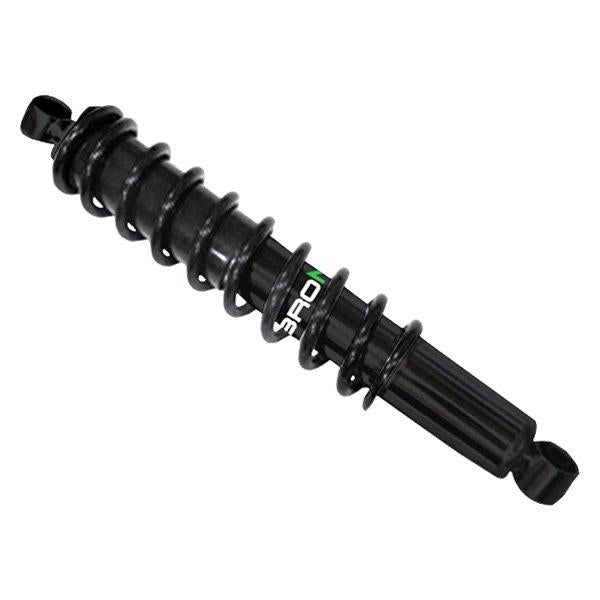

Part No. 29-570
Honda 2009 TRX420FA Rancher AT, Honda 2007-2009 TRX420FE FourTrax Rancher 4X4 ES, Honda 2007-2009 TRX420TE FourTrax Rancher ES, Honda 2007-2009 TRX420TM FourTrax Rancher,

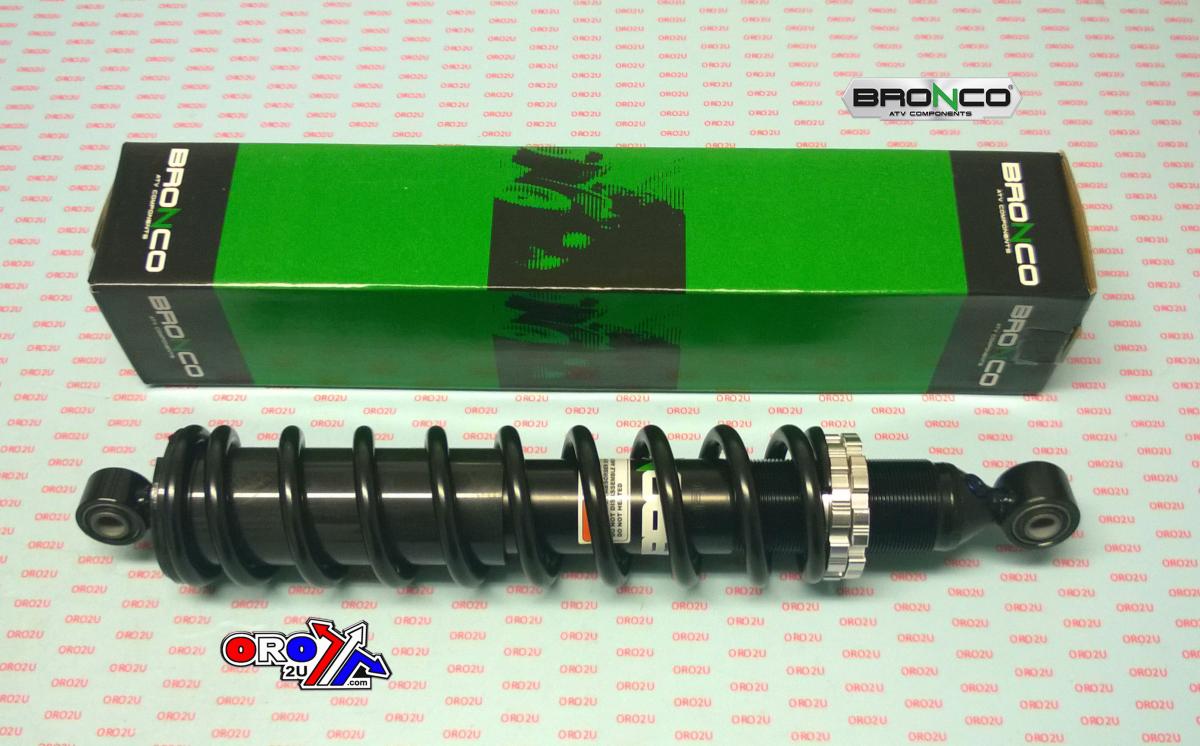

BRONCO AU-04209
