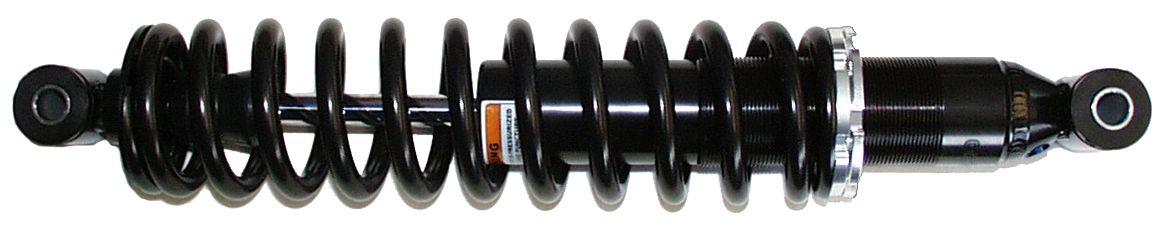

BRONCO HEAVY DUTY GAS SHOCKS

Bronco gas shocks provide long-term consistent performance compared to stock oil-only damped shocks. Key features include:

• 10% Stiffer Springs: Offer a better ride quality and increased load capacity.
• Versatile Application: Ideal for use on the front when installing a snow plow.
• Aesthetic Appeal: Smooth black color blends perfectly with any OEM ATV design.
• Direct Bolt-On Replacement: Pre-installed spring means the shock is ready to mount right out of the box.
• Sold Individually: Each purchase includes one shock, complete with spring and spring retainers.

FITMENT:

Yamaha:

• Big Bear 400 2X4 (2000 - 2004)
• Big Bear 400 4X4 (2000 - 2006)

SPECIFICATIONS:

• Position Top Hole I.D (mm): 12
• Top Eyelet Width (mm): 40
• Bottom Hole I.D (mm): 12
• Bottom Eyelet Width (mm): 45
• Tube O.D (mm): 42.5
• Stroke (mm): 105
• Spring O.D (mm): 72
• Spring Wire Diameter (mm): 9.5
• Center to Center (mm): 398
• Center to Center (in): 15.7

Part No.: 29-558.EA (available at oro2u.com)
Bronco Rear Shock Model: 04406
