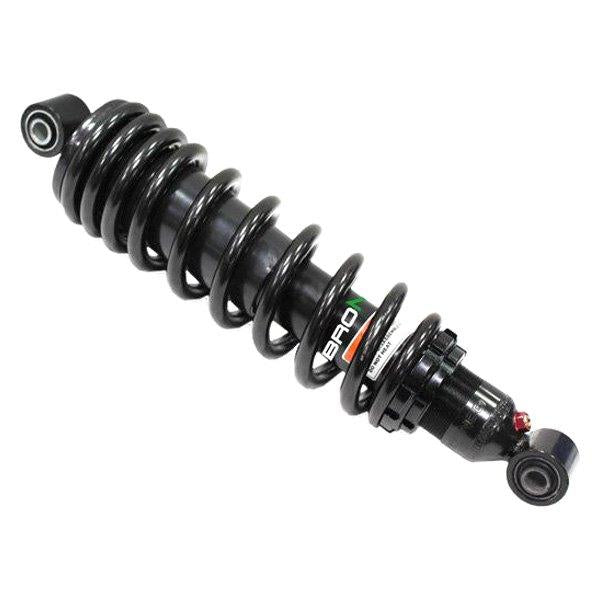

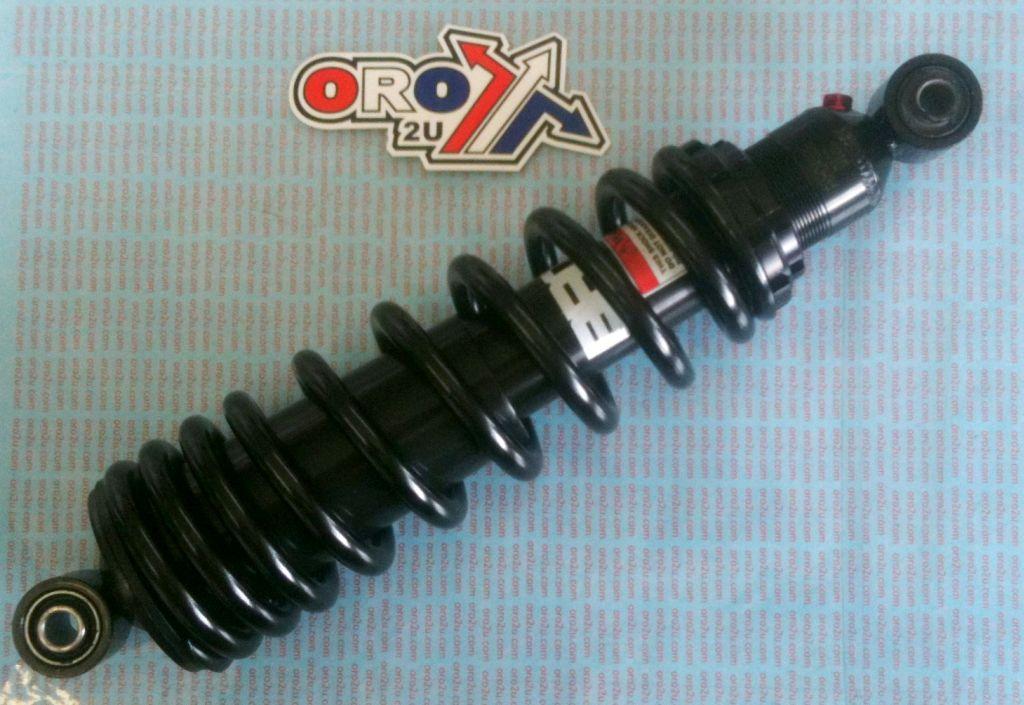

BRONCO HEAVY DUTY GAS SHOCKS AU-04206

Fits ATV Models:

•  TRX300FW 4 X 4 1998-00

Bronco gas shocks offer long term consistent performance over stock oil only damped shocks
10% stiffer springs provide a better ride and higher load capacity
Works great on the front when installing a snow plow
Smooth black color blends perfectly with any OEM ATV
Direct bolt-on replacement: pre-installed spring allows for shock to be ready to mount right out of the box
Sold individually - Includes one shock, with spring, and spring retainers

SPECIFICATIONS

• POSITION TOP HOLE I.D MM: 10
• TOP EYELET WIDTH MM: 28
• BOTTOM HOLE I.D MM: 10
• BOTTOM EYELET WIDTH MM: 32
• TUBE O.D MM: 38
• STROKE MM: 55
• SPRING OD MM: 72
• SPRING WIRE DIAMETER MM: 9.5
• SPRING RATE LBS/INCH: -
• SPRING RATE KG/MM: -
• CENTER TO CENTER MM: 302
• CENTER TO CENTER IN: 11 8/9

OEM Cross-reference Numbers Only: 51400-HM4-A10, 51400-HM5-A10
