HONDA
TRX400FW FOREMAN 1995-2003

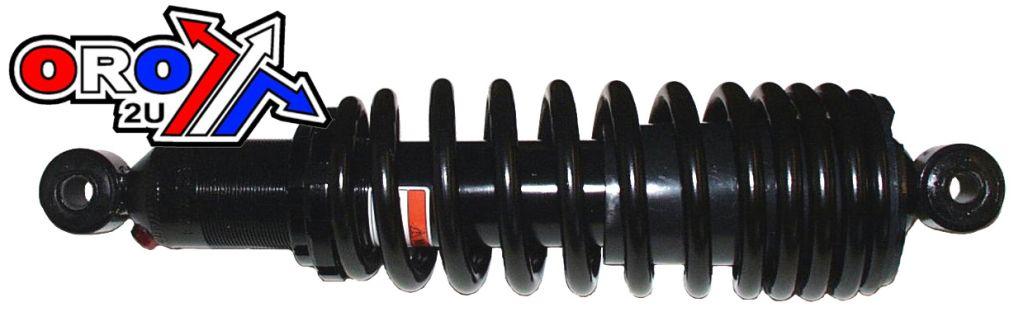

FRONT SHOCK BRONCO AU-04202 HEAVY DUTY DESIGN, COME STANDARD WITH 10% STIFFER SPRINGS.

SPECIFICATIONS

• POSITION TOP HOLE I.D MM: 10
• TOP EYELET WIDTH MM: 21
• BOTTOM HOLE I.D MM: 10
• BOTTOM EYELET WIDTH MM: 21
• TUBE O.D MM: 38
• STROKE MM:60
• SPRING OD MM: 73
• SPRING WIRE DIAMETER MM: 8.5
• SPRING RATE LBS/INCH: 112
• SPRING RATE KG/MM: 2.00
• CENTER TO CENTER MM: 297
• CENTER TO CENTER IN: 11 2/3

Part No. 29-530

Cross reference numbers ONLY.
51400-HM7-003,

1995 TRX400FW A FRONT SHOCK ABSORBER
1995 TRX400FW AN FRONT SHOCK ABSORBER
1996 TRX400FW A FRONT SHOCK ABSORBER
1996 TRX400FW AN FRONT SHOCK ABSORBER
