YAMAHA ROAD
VMX12 V-MAX         2004-2007,
VMX1200 V-MAX   1985-2003,
1985-00 VMX1200 V-Max w/1198cc,

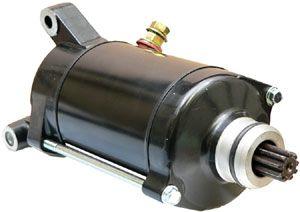

STARTER MOTOR ARROWHEAD SMU0174

Product dimensions: PMDD; 12-Volt; CW; 9-Spline

14mm Pinion OD
155.3mm Flange To Rear
(1) 6.75mm ID Unthreaded Mounting Hole
(1) 7.5mm ID Unthreaded Mounting Hole
66.6mm Center-To-Center
30mm Registry OD
6mm x 1.0 B+ Terminal

Part No. 19-1903

Cross reference numbers ONLY.
MITSUBA SM-229C; YAMAHA 1FK-81800-10-00, JC-01152,   SMU0174 For Yamaha M/C PMDD; 12-Volt; CW; 9-Spline LESTER 18750, 1FK-81800-10-00 With the 1FK-81890-00-00, 410-54072 J & N   , 18750 LESTER   , 191-246 PIC   ,
620-18750 BARSANCO   , 22-18750 BBB SMALL MOTOR , YS-24 EMS   , STY0174 HI LEVEL , 57-2661 MINNPAR   ,
SM-229C MITSUBA   , P566N MPA SMALL MOTOR   , RN18750 NAPA SMALL MOTOR   , ST-18750 RCP   , RS41216 REMY , ,
YS-24 STOCKERS STARTERS   , 464152 TUCKER ROCKY   , 46-4152 TUCKER ROCKY   , 71-26-18750 WILSON SMALL ENGINE, 1FK-81800-10-00 YAMAHA , 1FK-81890-00-00,
