CARBURETOR REBUILD KIT ALLBALLS 26-1494

- Kits include all of the necessary components to repair a carburetor.
- Kit includes all O-rings, gaskets, jets, needle, mixture screw, float bowl screws, float valve needle and seat.
- OEM jet sizes are included in the kit.
- NBR rubber material is used on all O-rings and rubber gaskets. NBR has excellent resistance to the ethanol used in today's fuels.

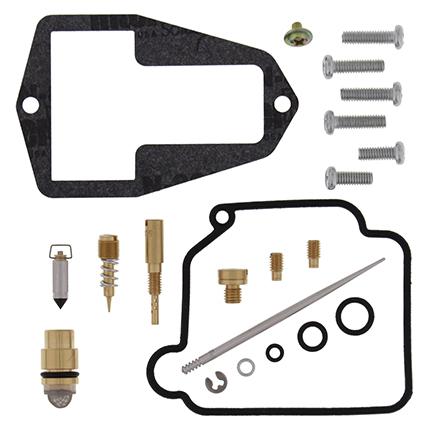

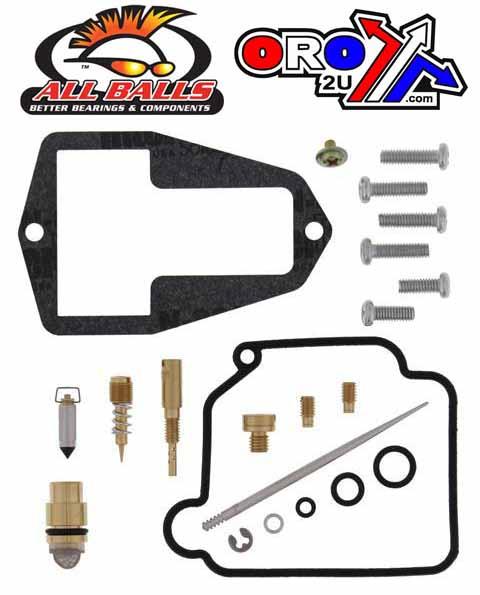

Included Items:

• (1) Float chamber gasket
• (1) Top cover gasket
• (1) Needle jet
• (1) "E" Clip
• (1) Small flat washer
• (2) O-Ring
• (4) 8-32 x 1/2" Pan head bolts
• (2) 8-32 x 3/8" Pan head bolts
• (1) Small flange pan head bolt
• (1) Needle valve assembly
• (1) main jet #127.5
• (1) Pilot jet #37.5
• (1) Main air jet #0.7
• (1) Pilot air jet #1.1
• (1) Pilot screw

MODEL FITMENT:

Carb. Rebuild Kit Closed Course Racing Only

Suzuki

• DR350 92-93
