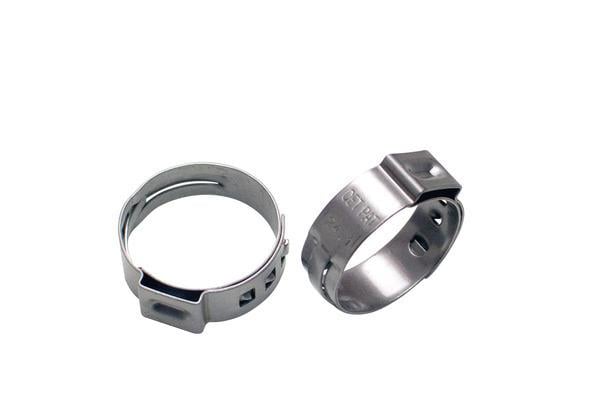

These stepless ear clamps cover a 20.9–24.1 mm diameter range and use a narrow 9 mm band to concentrate seal compression. The 360° stepless profile eliminates gaps on the inner surface, while specially formed strip edges help reduce the risk of damage to the clamped part. The lightweight design provides visible tamper evidence and is supplied in packs of 10. Not for use with fuel injection systems.

Features

• 360° stepless design with no gaps on the inner surface
• Narrow 9 mm band for concentrated seal compression
• Specially formed strip edges reduce risk of damage to clamped parts
• Lightweight construction
• Tampering is visible
• Sold in packs of 10
• Not for use with fuel injection systems

Specifications

• Size range: 20.9–24.1 mm
• Band width: 9 mm
• Quantity: pack of 10

Cross-Reference Numbers

• Motion Pro 11-0067
