PD International ATV Axle Polaris Ranger, 500/800xp (09+), Polaris, Ranger 700, Front Axles Only F
0 Reviews
In Stock
Categories:
DriveshaftSKU:

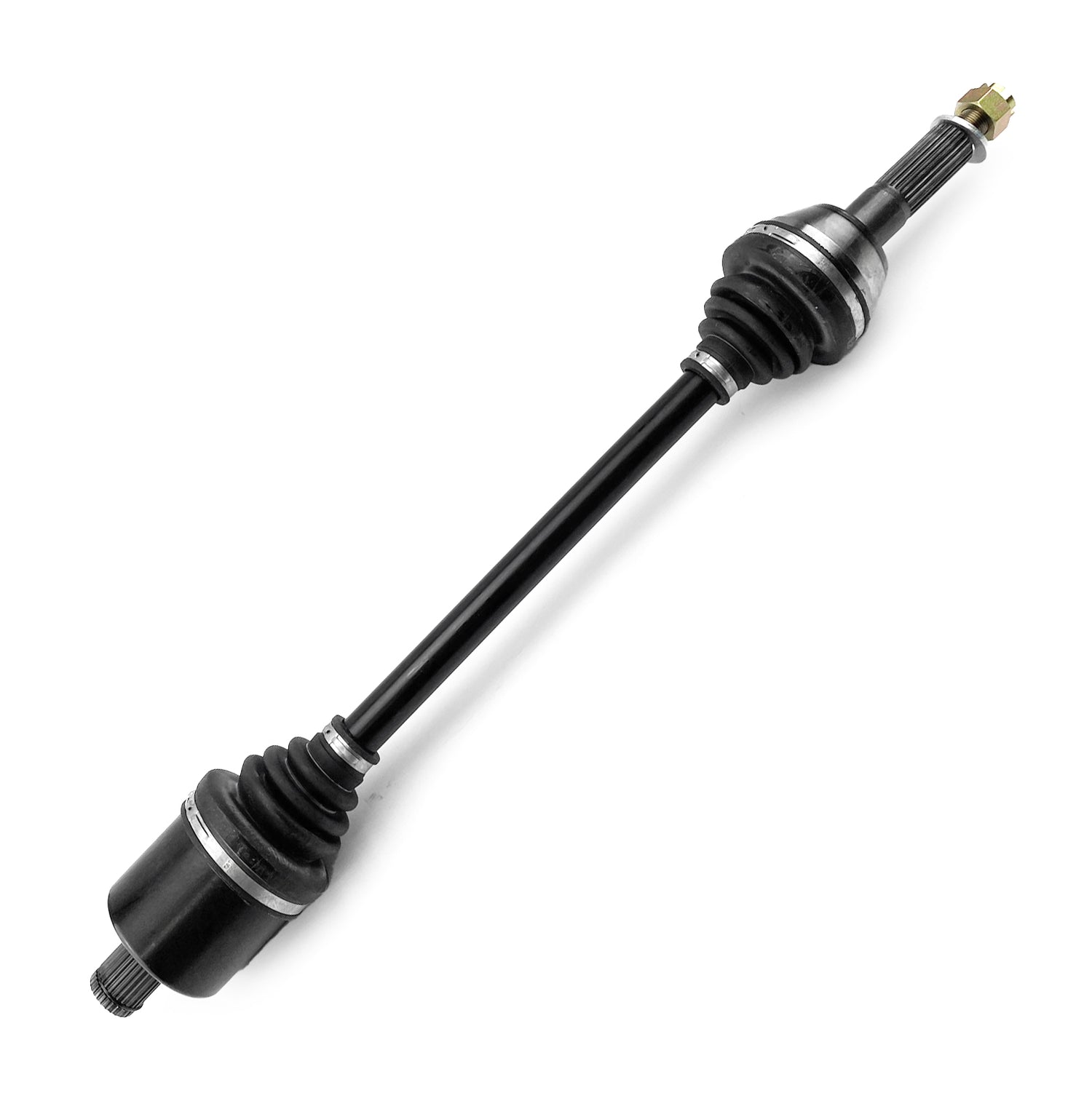

17-3299.PDThe PD International PD-PAXL-1134HD is a complete heavy-duty CV axle assembly for selected Polaris Ranger and other Polaris ATV/UTV applications. Designed as a direct-fit replacement axle, it uses an increased-diameter shaft and CV joints, a dual-plunge joint design and increased articulation to accommodate suspension movement while maintaining reliable drivetrain operation. Verified application data identifies this axle primarily for rear left- or right-hand installation; fitment should therefore be checked carefully where an application is described as front.
Features
- Complete, fully assembled CV axle for direct-fit installation
- Dual-plunge design helps prevent axle binding through suspension travel
- Increased CV joint and axle shaft size compared with standard/OEM-style components
- Heat-treated internal components
- Precision CNC-machined internal components
- TPEE CV boots with high-load molybdenum grease
- Suitable for either left- or right-hand installation on verified applications
Specifications
- Heavy-duty chromoly steel construction
- 4340 chromoly inner cage
- CV joints approximately 10–15% larger than standard joints
- Axle shaft diameter approximately 15–20% greater than OEM-style axles
- Outboard articulation angle: up to 45–47°
- Inboard articulation angle: up to 40°
- Inboard plunge travel: approximately 1.5 in
- Outboard plunge travel: approximately 0.5 in
- Standard/OEM-length configuration
Cross-Reference OEM Part Numbers
- PD-PAXL-1134HD
- PAXL-1134HD
- 0214-1262
- Polaris 1333008
- Polaris 1333233
- Polaris 1332947
Vehicle Fitments
Polaris (Rear left/right)
- ACE 900 XC EPS (2017)
- Brutus HDPTO (2016)
- Brutus HDPTO Deluxe (2016)
- Ranger 6x6 800 (2011-2014)
- Ranger 500 4x4 HO EFI (2010)
- Ranger 570 Full Size (2015-2016)
- Ranger 570 XP (2016)
- Ranger 800 Crew (2010-2014)
- Ranger 800 Crew EPS (2010-2012)
- Ranger 800 Crew EPS LE (2012-2013)
- Ranger 800 EFI (2013-2014)
- Ranger 800 HD (2010)
- Ranger 800 HD EPS (2011-2012)
- Ranger 800 XP (2010-2012)
- Ranger 800 XP EPS (2010-2012)
- Ranger 800 XP EPS LE (2012)
- Ranger 800 XP LE (2012)
- Ranger 900 XP (2013-2018)
- Ranger 900 XP EPS (2013-2018)
- Ranger Crew 900 (2014-2015)
- Ranger Crew 900 EPS (2014-2015)
- RZR S 570 EPS (2017)
- RZR XP 4 900 (2013)
- RZR XP 900 (2013)
