PD International ATV Axle Bombardier :, Outlander 4x4, F/l 500/ 650/, 800 (03-), Renegade 4x4 ,f/l
0 Reviews
In Stock
Categories:
DriveshaftSKU:

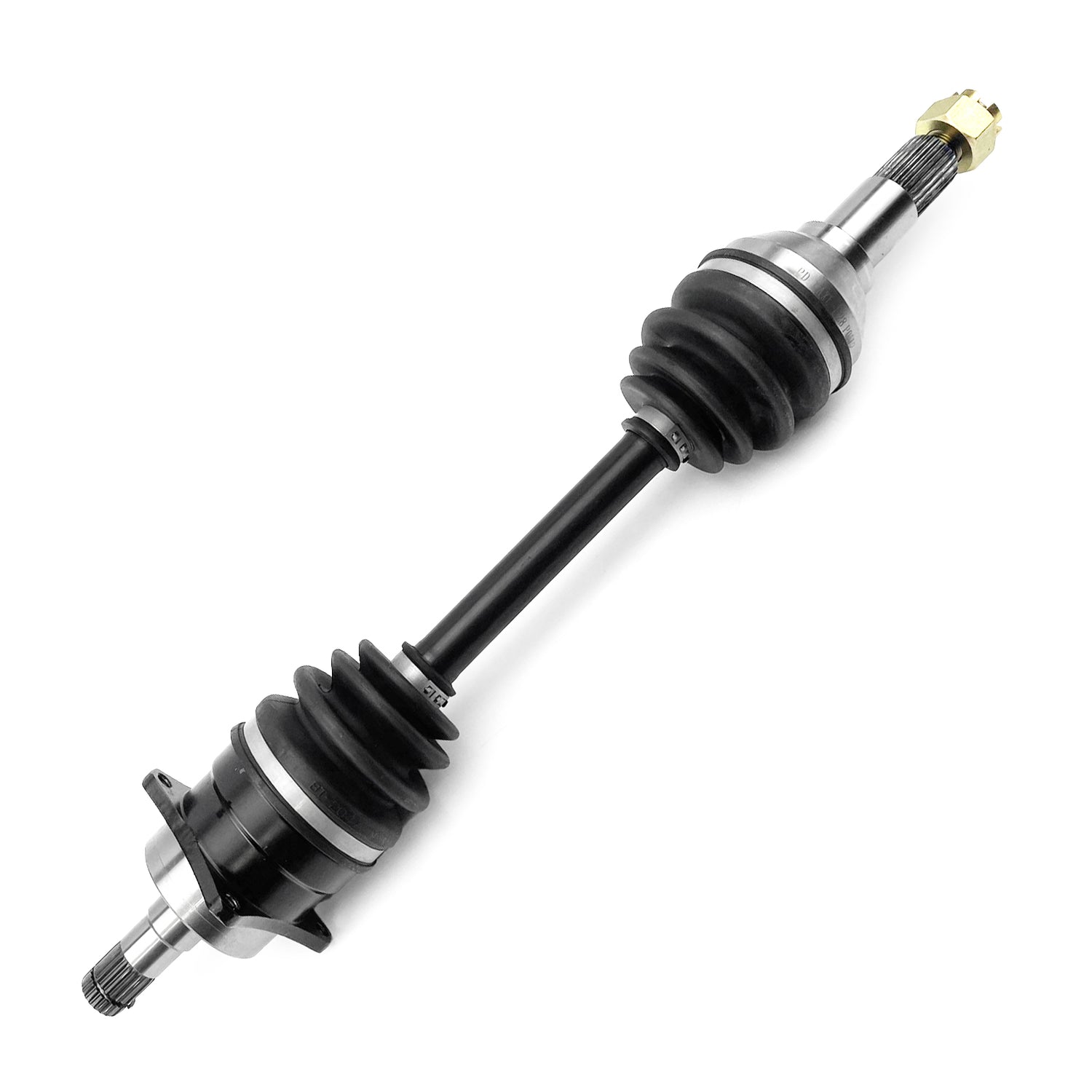

17-3283.PDThe PD-PAXL-1128HD is a heavy-duty complete front-left ATV axle for Bombardier/Can-Am Outlander and Renegade 4x4 models, including 500, 650 and 800 applications. It is designed as a direct replacement axle for off-road use, using larger CV components and high-strength chromoly construction. The supplied application information references 2003-onward fitment; published fitment data for PAXL-1128HD verifies applications from 2006 onwards depending on model.
Features
- Direct OE replacement design requiring no vehicle modification for standard applications.
- Wide articulation angles and a double-plunge design help prevent axle binding.
- Suitable for selected bracket lift, portal gear lift and A-arm configurations.

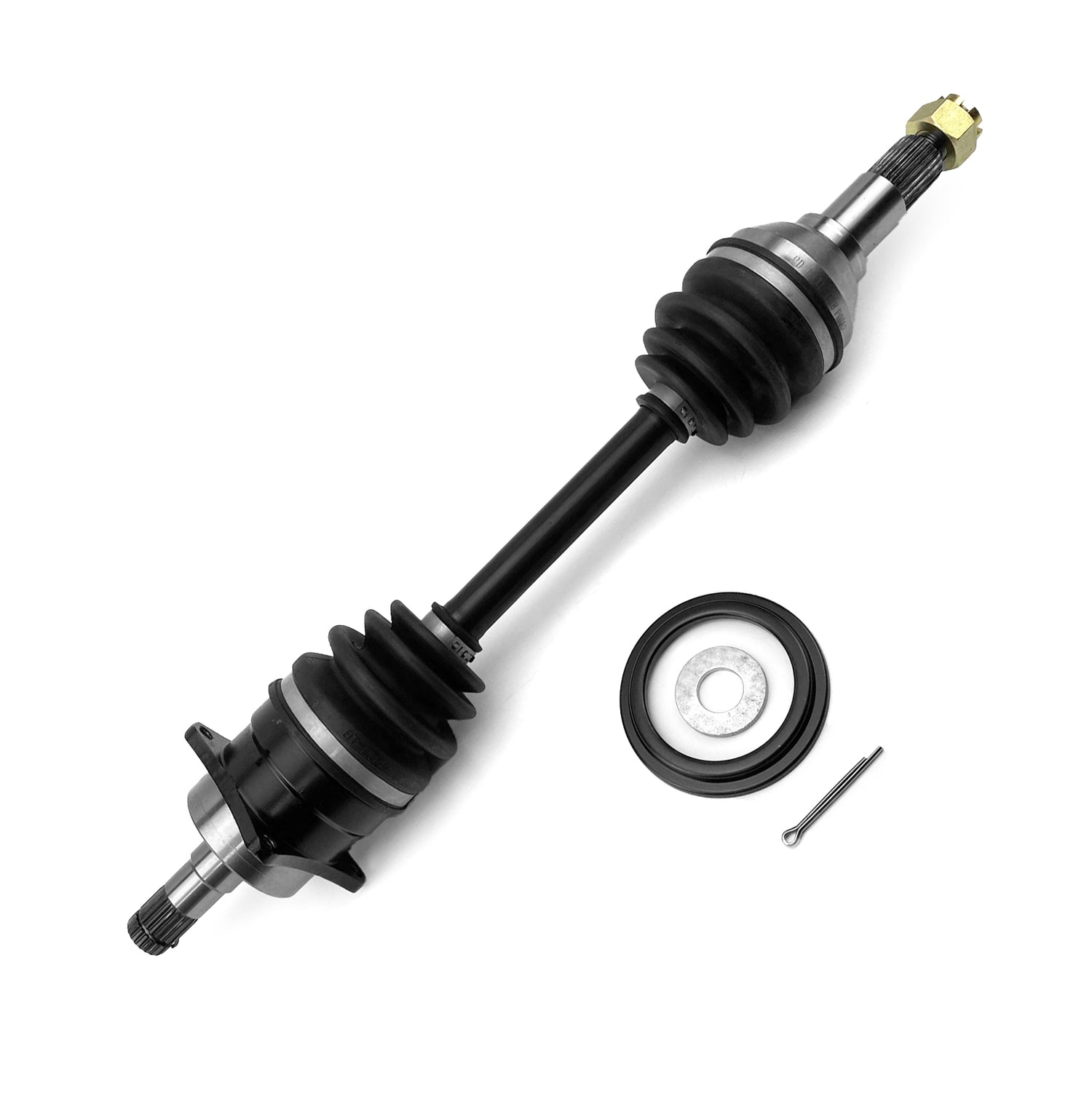

- Complete axle assembly supplied for front-left installation.
Specifications
- Mounting position: Front left
- Duty: Heavy-duty
- Axle material: High-strength chromoly steel
- Inner CV cage material: 4340 chromoly steel
- Shaft treatment: Dual heat-treated
- CV joint size: Approximately 10–15% larger than standard joints
- Axle diameter: Approximately 15–20% larger than OEM axles
- CV boots: Thermoplastic polyester elastomer (TPEE)
- Boot lubricant: High-load molybdenum grease
- Manufacturing: Precision CNC machined
- Inboard joint articulation: Approximately 40°
- Plunge travel: Approximately 1.5 inches
- Compatible lift sizes: Selected 2, 3, 4 and 5-inch bracket lift, portal gear lift and A-arm systems
Cross-Reference OEM Part Numbers
- Cross-reference number: 0214-1257
- OEM: 705400293
- OEM: 705400480
- OEM: 705400510
- OEM: 705400659
- OEM: 705400934
- OEM: 705401109
- OEM: 705401578
Vehicle Fitments
Bombardier/Can-Am (Front Left)
- Outlander 400 (2006-2015)
- Outlander Max 400 (2006-2015)
- Outlander 500 (2007-2012)
- Outlander Max 500 (2007-2012)
- Renegade 500 (2008-2012)
- Outlander 650 (2006-2012)
- Outlander Max 650 (2006-2012)
- Outlander 800 (2006-2012)
- Outlander Max 800 (2006-2012)
- Renegade 800 (2007-2012)
- Outlander 1000 (2012)
- Renegade 1000 (2012)
