Part No. 13-058.M8

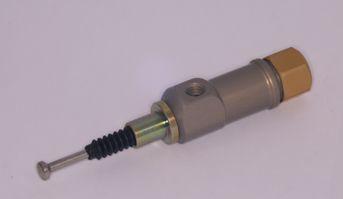

MAGURA GENUINE 0120655 HYMEC SLAVE CYLINDER
YAMAHA YZ250F 2002-03 YZ/WR400F 1998-99 YZ426F 2000-02 SUZUKI DRZ400 2000-03 YAMAHA ATV YZF450 2004.
Main applications. 2100009 - 2100005 - 2100302 - 2100309

YAMAHA YZ250F 2002-03

YZ/WR400F 1998-99

YZ426F 2000-02

SUZUKI DRZ400 2000-03

YAMAHA BANSHEE ATV -2003

YAMAHA ATV YZF450 2004

KAWASAKI KX450F 2006-08

0mm stroke when bled correctly

10.5mm piston dia

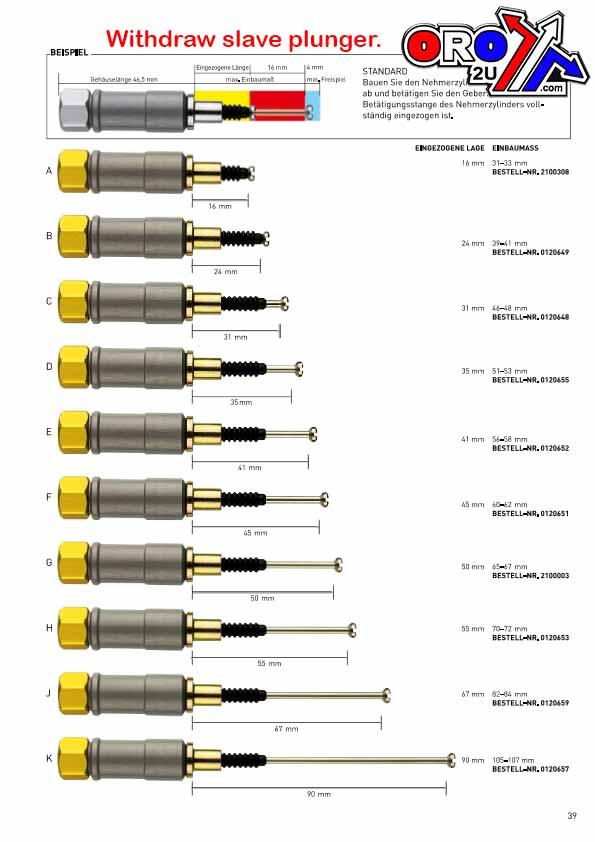

Fully withdrawn length 35mm

• To measure this, remove the slave cylinder from the clutch arm and carefully activate the master cylinder until the slave cylinder activation rod is fully withdrawn into the slave cylinder body.
• Measure the distance from the shoulder of the sleeve where the rod protrudes from the slave cylinder to the nipple at the end of the rod. If the slave cylinder is dry, manually push the rod into the cylinder until the piston touches the bronze cap.
