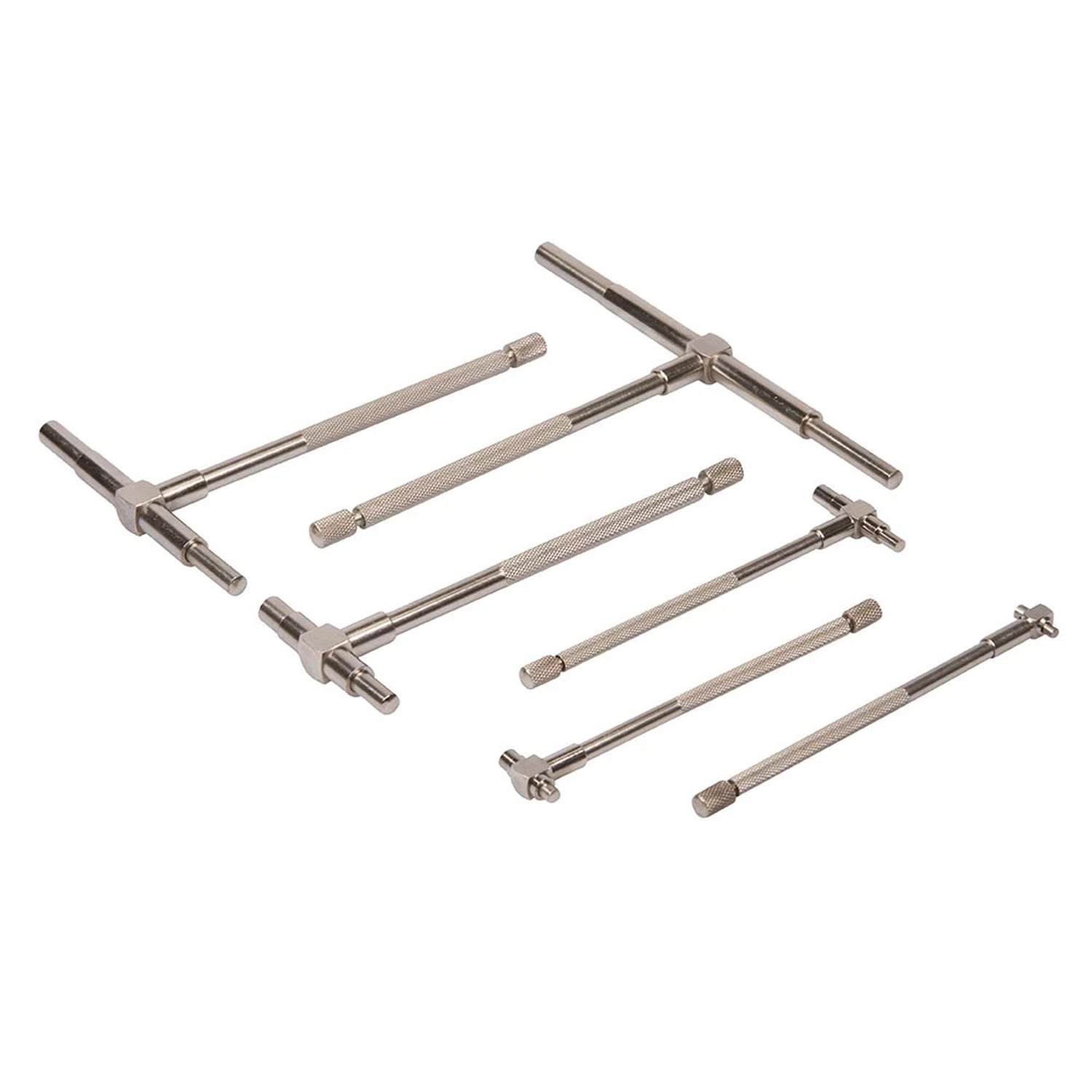

This 6-piece telescoping gauge set is designed for measuring internal diameters, particularly cylinder bores, by transferring the bore size for checking with an outside micrometer. It is intended for quick internal measurement work where direct reading is not required.

Features

• Suitable for quick internal measurement of cylinders
• Measurement is transferred for checking with an outside micrometer
• Automatically self-centring plungers
• Constant spring tension for uniform contact pressure
• Knurled handles for grip during adjustment
• Locking nuts to hold the set measurement

Specifications

• Set quantity: 6 pieces
• Gauge ranges: 8 to 12.7 mm, 12.7 to 19 mm, 19 to 32 mm, 32 to 54 mm, 54 to 90 mm, 90 to 150 mm

Cross-Reference OEM Part Numbers

• Part number: 00-882
