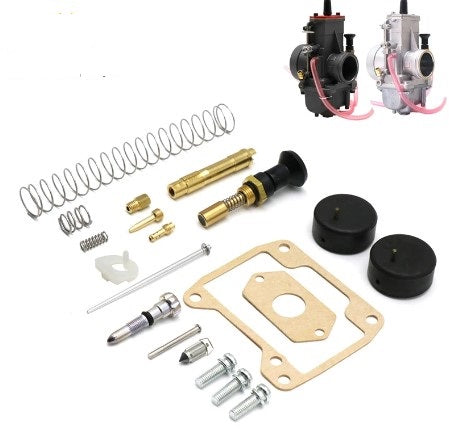

Mikuni TM38 Carburettor Repair Rebuild Kit

Compatible with:

Mikuni TM38-85
Mikuni TM38-86
TM32, 34, 36, Early 38 Float: VM24/236
TM32, 34, 36, 38 Needle Jet: 785-24001-Q-2
TM32, 34, 38 Idle Adjusting Screw: 603-16003
TM32, 34, 38 Spring, Idle Adjuster: VM24/556
TM32, 34, 38 O-Ring, Idle Adjuster: BV32/04
TM32, 34, 36, 38 Air mixture Screw, Pilot: VM24/622
Spring: M12F/46a
Float Pin: VM30/160
TM38-85 & TM38-86 Ring, Main Jet: TM34/36
TM32, 34, 38 Screw With Lockwasher: CW2=0516
TM36, 38 Throttle Spring: 730-16003
6 Series Jet Needle: 6 Series
Pilot Jet: VM22/110-#45
Main Jet: 4/042-#250

Package Included:

1 x repair kit

Features:

Unmatched reliability and performance from high-tech materials.
Manufactured to exacting standards so the engine can be rebuilt with total confidence.
.
Direct OEM replacement.
Please see image before ordering to avoid mistakes.
Best value for money.
ORO products are a high-quality replacement part and carry our guarantee of your satisfaction.
Easy to install but if unsure please use a professional.

Cross Reference Numbers Only:

NEEDLE, JET (6DH6-3) 13383-43B00
E RING 13394-10010
FLOAT 13252-18620
SCREW 02112-05206 02112-0520B
GASKET 13251-14300
RING 13387-14310 13387-14230
ADJUSTER 13267-48700
JET, NEEDLE (O-6) 09494-00575
SPRING 13268-48110
JET, PILOT (30) 09492-30003 09492-30006
SCREW, AIR (1 1/2) 13269-46010 13269-95110
GASKET, TOP 13266-14300
