Valve Adjustment for 4-Stroke Dirt Bikes: What You Need to Know

February 15, 2025

BySidnei Poggianello 0 Comments

Proper valve adjustment is crucial for maintaining the performance and longevity of 4-stroke dirt bike engines. Misaligned valves can lead to poor engine efficiency, starting issues, and even severe damage over time. This guide provides a step-by-step approach to checking and adjusting the valves on your dirt bike.

Why Valve Adjustment Matters

Valves regulate the intake of air and fuel and the exhaust of gases in your engine. Over time, these components can shift due to wear, causing:

• Loss of Power: Affects engine efficiency and output.

• Hard Starting: Difficulty starting the bike, especially when cold.

• Engine Noise: Increased tapping or knocking sounds from the engine.

• Overheating: Caused by improper exhaust valve operation.

Tools and Supplies You’ll Need

• Feeler gauges

• Socket set

• Screwdrivers

• Torque wrench

• Valve cover gasket (if replacement is necessary)

• Service manual (for specifications)

Signs Your Valves Need Adjustment

• Tapping Noise: Excessive valve clearance causes a tapping or ticking sound.

• Difficulty Starting: Misaligned valves can disrupt compression.

• Reduced Performance: Noticeable drop in power and throttle response.

• Excessive Exhaust Smoke: Indicates improper valve sealing.

Step-by-Step Guide to Valve Adjustment

1. Prepare Your Bike

• Cool Down the Engine: Ensure the bike is completely cool before beginning.

• Remove Necessary Components: Detach the seat, gas tank, and other parts to access the valve cover.

2. Locate the Valves

• Remove the valve cover using a socket set.

• Identify the intake and exhaust valves (refer to your manual).

3. Set the Engine to Top Dead Center (TDC)

• Rotate the crankshaft using a socket on the flywheel bolt.

• Align the TDC marks on the flywheel with the indicator on the engine case.

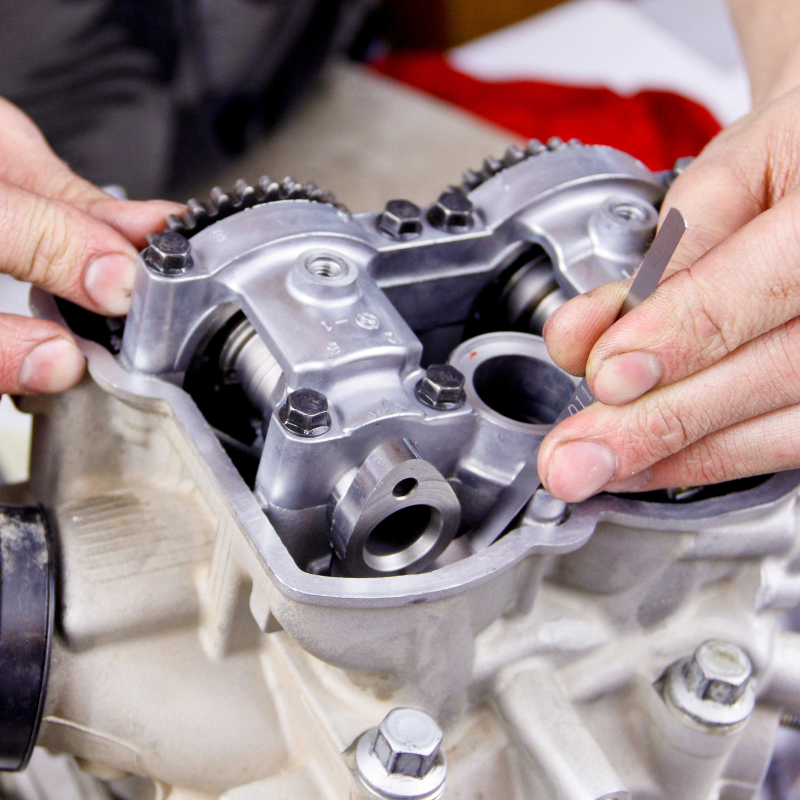

4. Measure Valve Clearance

• Use a feeler gauge to measure the gap between the valve stem and the rocker arm or camshaft.

• Compare the measurements to the specifications in your service manual.

5. Adjust the Valves

• Loosen the lock nut on the adjuster screw.

• Turn the screw to increase or decrease the clearance.

• Recheck the gap with the feeler gauge until it matches the recommended clearance.

• Tighten the lock nut while holding the adjuster screw in place.

6. Reassemble and Test

• Replace the valve cover and any removed components.

• Start the engine and listen for any unusual noises.

• Test ride the bike to ensure improved performance.

Pro Tips for Valve Adjustment

• Follow the Manual: Always refer to your bike’s service manual for exact specifications.

• Work Methodically: Adjust one valve at a time to avoid confusion.

• Use Quality Tools: Invest in a precise set of feeler gauges and a reliable torque wrench.

• Check Regularly: Perform valve inspections as part of your routine maintenance schedule.

• Replace Worn Parts: Replace valve cover gaskets or other components if they show signs of wear.

Final Thoughts

Regular valve adjustment is essential for maintaining your dirt bike’s performance and reliability. By following this guide, you can ensure your engine runs smoothly and efficiently. For professional valve adjustments or maintenance, trust Pro Power MX, your off road specialists.
