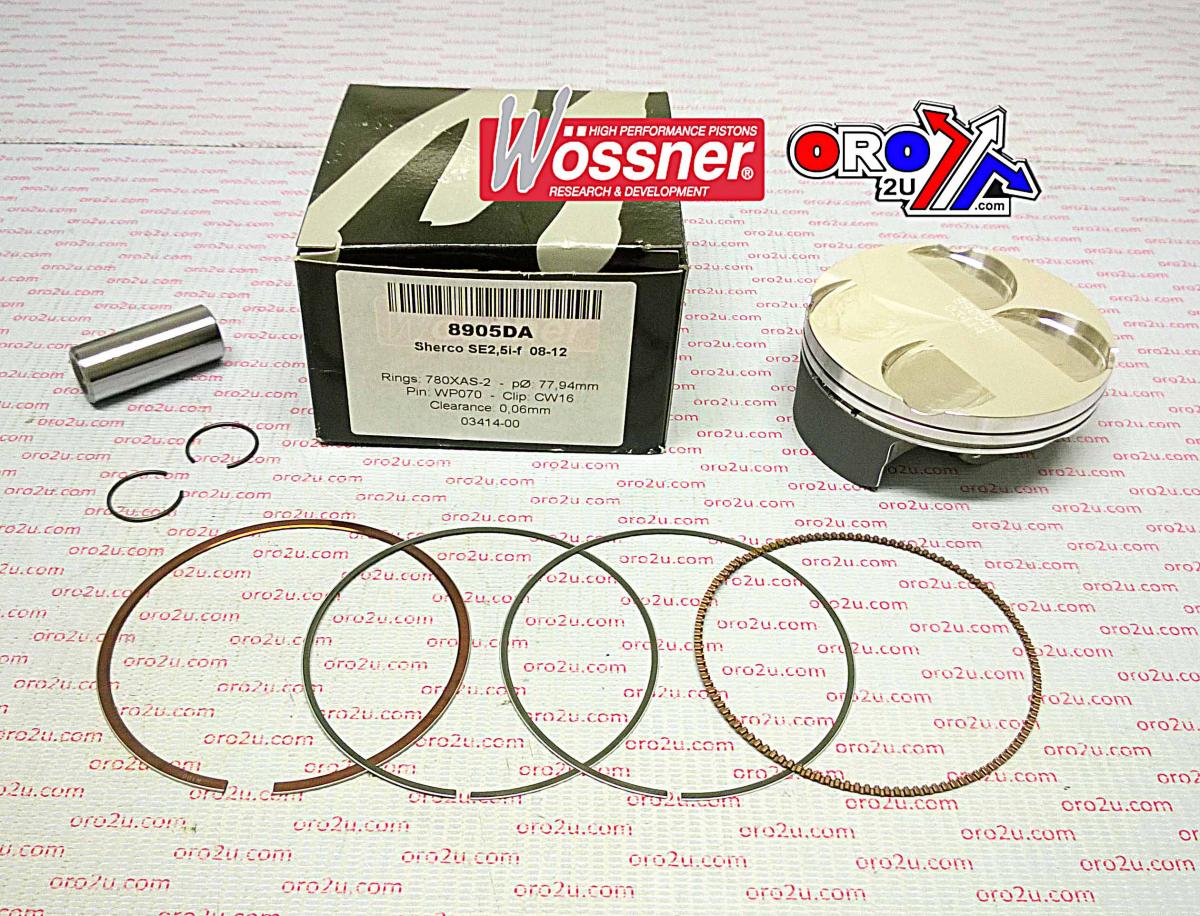

WOSSNER PISTON KIT SHERCO 250 78.00, WOSSNER 8905DC 4-STK SE2.5i-F

Piston kit 78.02mm Bore 77.96 Wossner  8905DC (+0.02mm)
SHERCO
SE2.5i-F 2008 - 2012, Wossner forged pistons are superior in strength and design. Engineered to provide the best possible path for combustion chamber heat transfer to cylinder walls. Elliptically designed to provide a more uniform bearing surface under piston heat expansion, eliminating localized pressure and distributing thrust loads more evenly, thereby preventing piston collapse. Made in Germany. Part No. 56-W9879.C.WO (oro2u.com)
SHERCO 4 stk. 250 SE2.5i-F 2008-2012,
WOSSNER 8905DC FORGED PISTON KIT Bore 78.02mm.
Clip part no - CW16
Piston pin- WP070
Ring set -780XAS-2 Display (cm3) 249
Hub stroke (mm) 52.2
Clearance (mm) 0.06
Wossner compression Ratio: OEM
OEM Compression ratio: 13.20:1
Dome volume (cm3) +3.60
Compression height (mm) 18.40
Theorectical weight (G)
