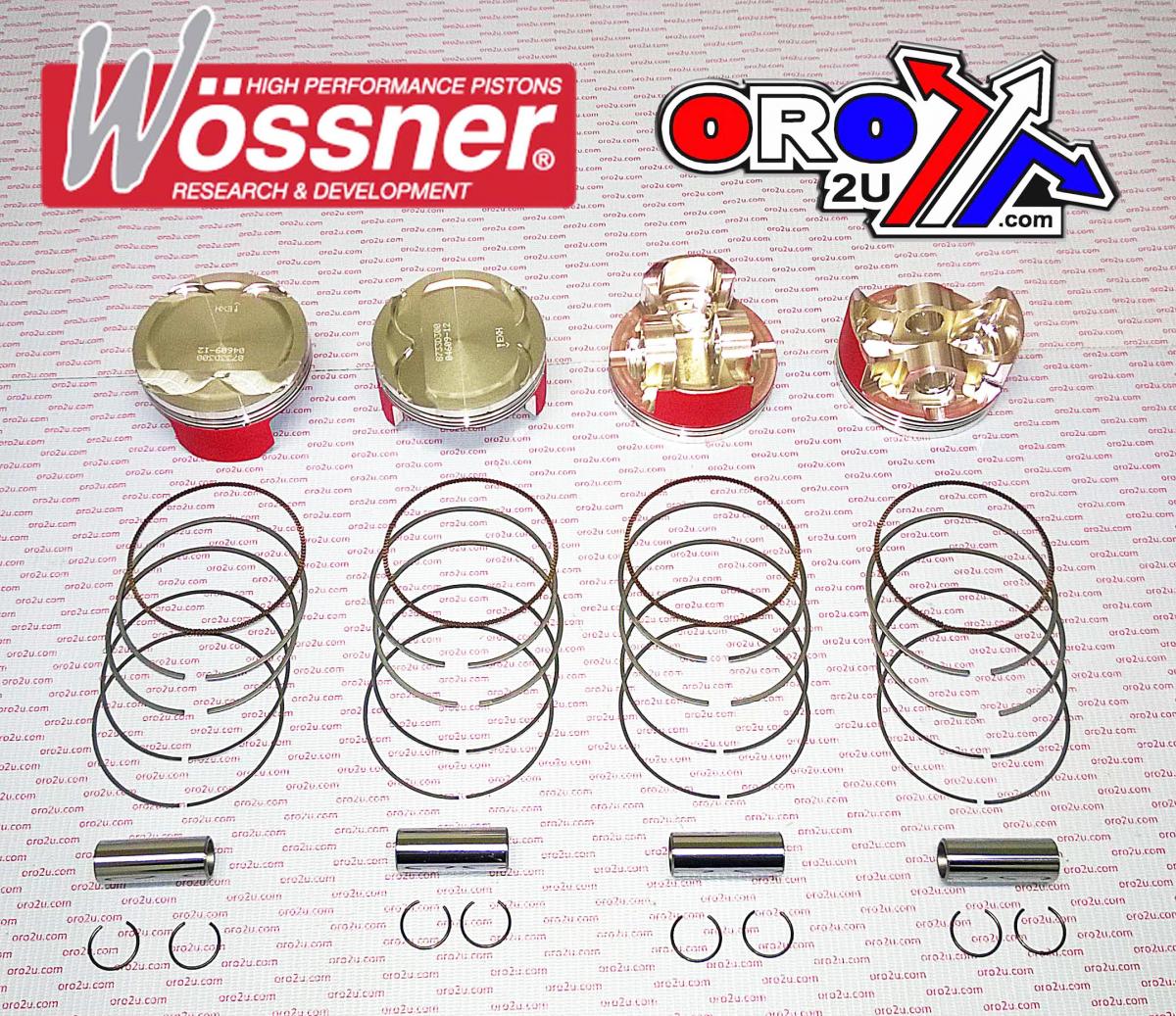

WOSSNER PISTON KIT SET/4 HAYABUSA 83, WOSSNER K8733D200-4 SUZUKI, 2008-2016 DISPL. 1406cc

Piston kit 83.00mm Bore 82.95 Wossner SET/4 K8733D200-4 (+2mm) SUZUKI
HAYABUSA GSX R 1300 2008-2016, (3 rings Pro series) Wossner forged pistons are superior in strength and design. Engineered to provide the best possible path for combustion chamber heat transfer to cylinder walls. Elliptically designed to provide a more uniform bearing surface under piston heat expansion, eliminating localized pressure and distributing thrust loads more evenly, thereby preventing piston collapse. Made in Germany Part No. 56-W9895.200.WO (oro2u.com) CLIP No. CW18,
PIN No.WP054
RINGS No. RIK83.00A Display (cm3) 1340 / 1406 / 1440 / 1474
Hub stroke (mm) 63.00
Clearance (mm) 0.07
Wossner compression Ratio: 9.00:1
OEM Compression ratio: 11.00:1
Dome volume (cm3) -17.80
Compression height (mm) 26.80
Theorectical weight (G)
SUZUKI HAYABUSA GSX R 1300 2008-2016,
PISTON KIT SET/4 HC 3-RING WOSSNER K8733D200-4 O/S +2.00mm BORE 83.00mm.
DISPLACEMENT 1406cc
