WOSSNER PISTON KIT SET/4 HAYABUSA 83 NC 99-07, WOSSNER K4017D200-4 SUZUKI, NC / 3-RING 99-07 DISP.

Piston kit 83.00mm Bore 82.95 Wossner SET/4 K4017D200-4 (+2MM) SUZUKI
HAYABUSA 1999 - 2007, (3 Rings)

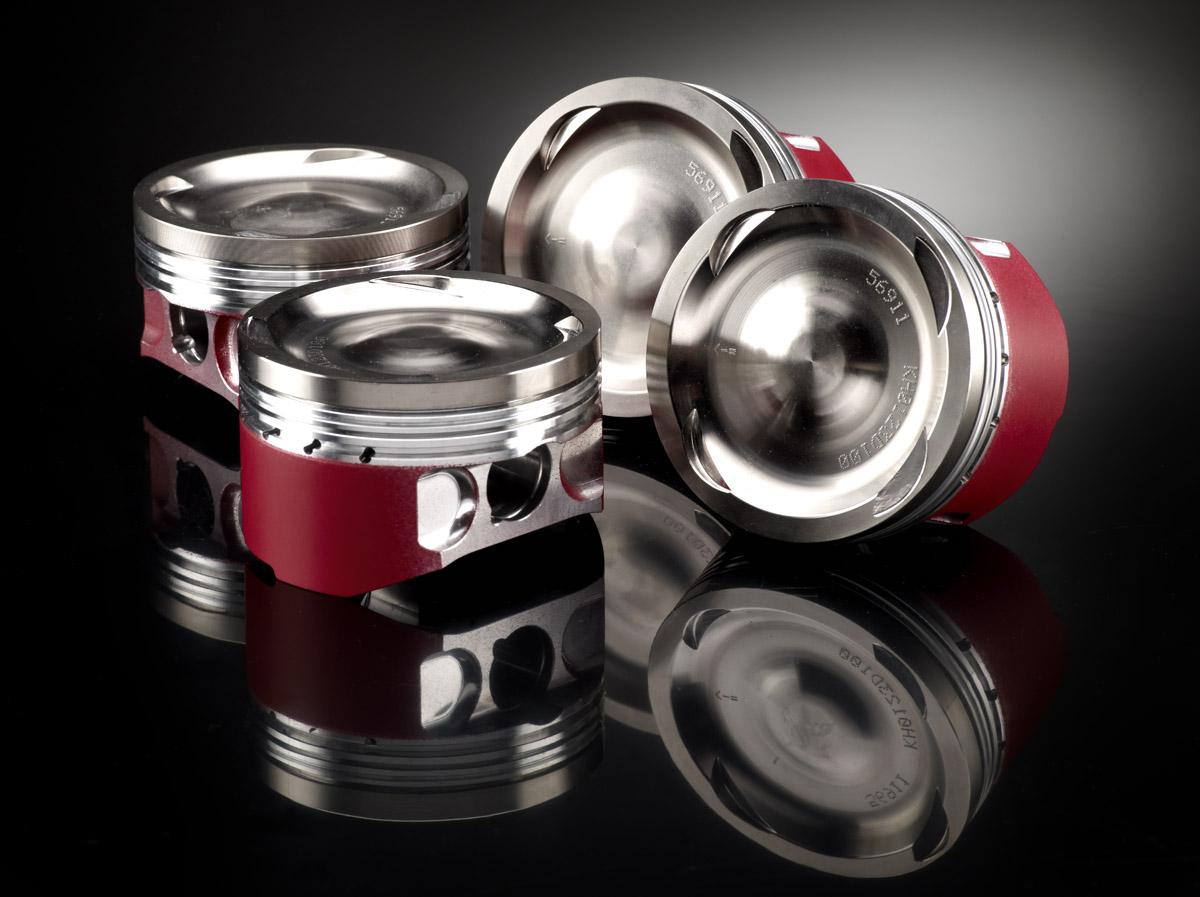

(Pro series) Wossner forged pistons are superior in strength and design. Engineered to provide the best possible path for combustion chamber heat transfer to cylinder walls. Elliptically designed to provide a more uniform bearing surface under piston heat expansion, eliminating localized pressure and distributing thrust loads more evenly, thereby preventing piston collapse. Made in Germany   Part No: 56-W9897.200.NC.WO (oro2u.com) SUZUKI HAYABUSA HC / 3-Ring 1999-2007, PISTON KIT SET/4 WOSSNER K4017D200-4 STD BORE 83.00mm. COMP.HEIGHT 25.25mm Oversize: +2.00MM Hub stroke (mm) 63.00 Clearance (mm) 0.05 Wossner compression Ratio: 12.50:1 Compression height (mm) 25.25 Theorectical weight (G) Cross reference numbers ONLY. CLIP No. CW20, PISTON PIN No. WP029-SP REPLACEMENT RING SET No. RIK81.00A
