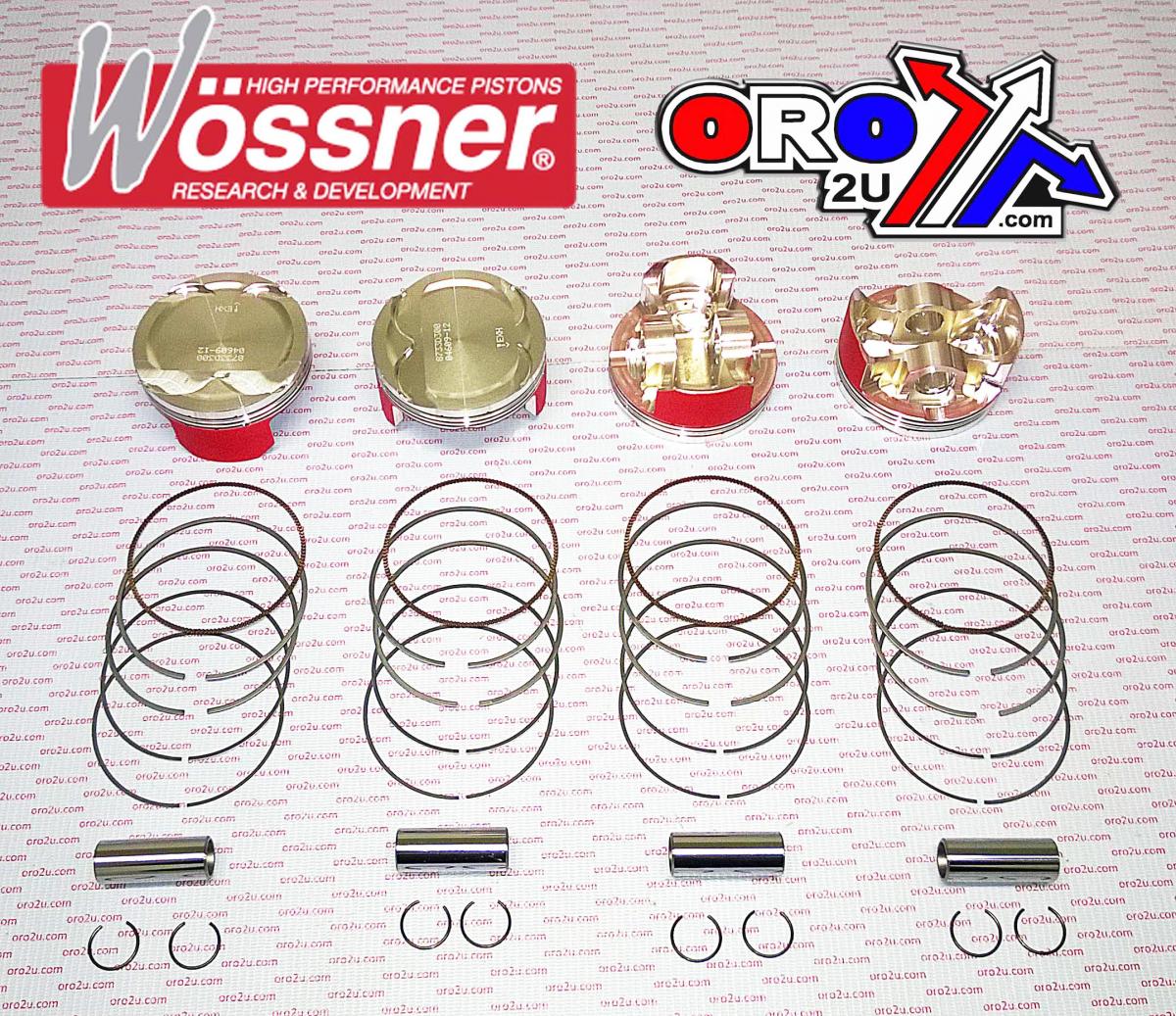

WOSSNER PISTON KIT SET/4 HAYABUSA 81 HC, WOSSNER K8730DA-4 SUZUKI, HC / 3-RING 99-07 DISP. 1299cc

Piston kit 81.00mm Bore 80.95 Wossner SET/4 K8730DA-4 (STD) SUZUKI
HAYABUSA 1999 - 2007, (3 Rings)
(Pro series) Wossner forged pistons are superior in strength and design. Engineered to provide the best possible path for combustion chamber heat transfer to cylinder walls. Elliptically designed to provide a more uniform bearing surface under piston heat expansion, eliminating localized pressure and distributing thrust loads more evenly, thereby preventing piston collapse. Made in Germany Part No. 56-W9897.000.WO (oro2u.com)
SUZUKI HAYABUSA HC / 3-Ring 1999-2007,
PISTON KIT SET/4 WOSSNER K8730DA-4 STD BORE 81.00mm.
DISPLACEMENT 1299cc
COMP.HEIGHT 25.100mm Display (cm3) 1299 / 1395 / 1429
Hub stroke (mm) 63.00
Clearance (mm) 0.05
Wossner compression Ratio: 13.50:1
OEM Compression ratio: 11.00:1
Dome volume (cm3) -2.45
Compression height (mm) 25.10
Theorectical weight (G) Cross reference numbers ONLY.
CLIP No. CW20,
PISTON PIN No. WP029
REPLACEMENT RING SET No. RIK81.00A
