Piston kit 81mm Bore 80.94 Wossner SET/4 K8530D300-4 (+3mm)

SUZUKI

GSXR1100 1989-1992,

GSF1200 BANDIT 1989-1992,

GSX1100F KATANA 1989-1992,

Wossner forged pistons are superior in strength and design.
Engineered to provide the best possible path for combustion chamber heat transfer to cylinder walls.
Elliptically designed to provide a more uniform bearing surface under piston heat expansion, eliminating localized pressure and distributing thrust loads more evenly, thereby preventing piston collapse.
Made in Germany

Part No. 56-W9890.300.WO

SUZUKI GSXR1100 1989-1992, SUZUKI GSF1200 BANDIT 1989-1992, SUZUKI GSX1100F KATANA 1989-1992,

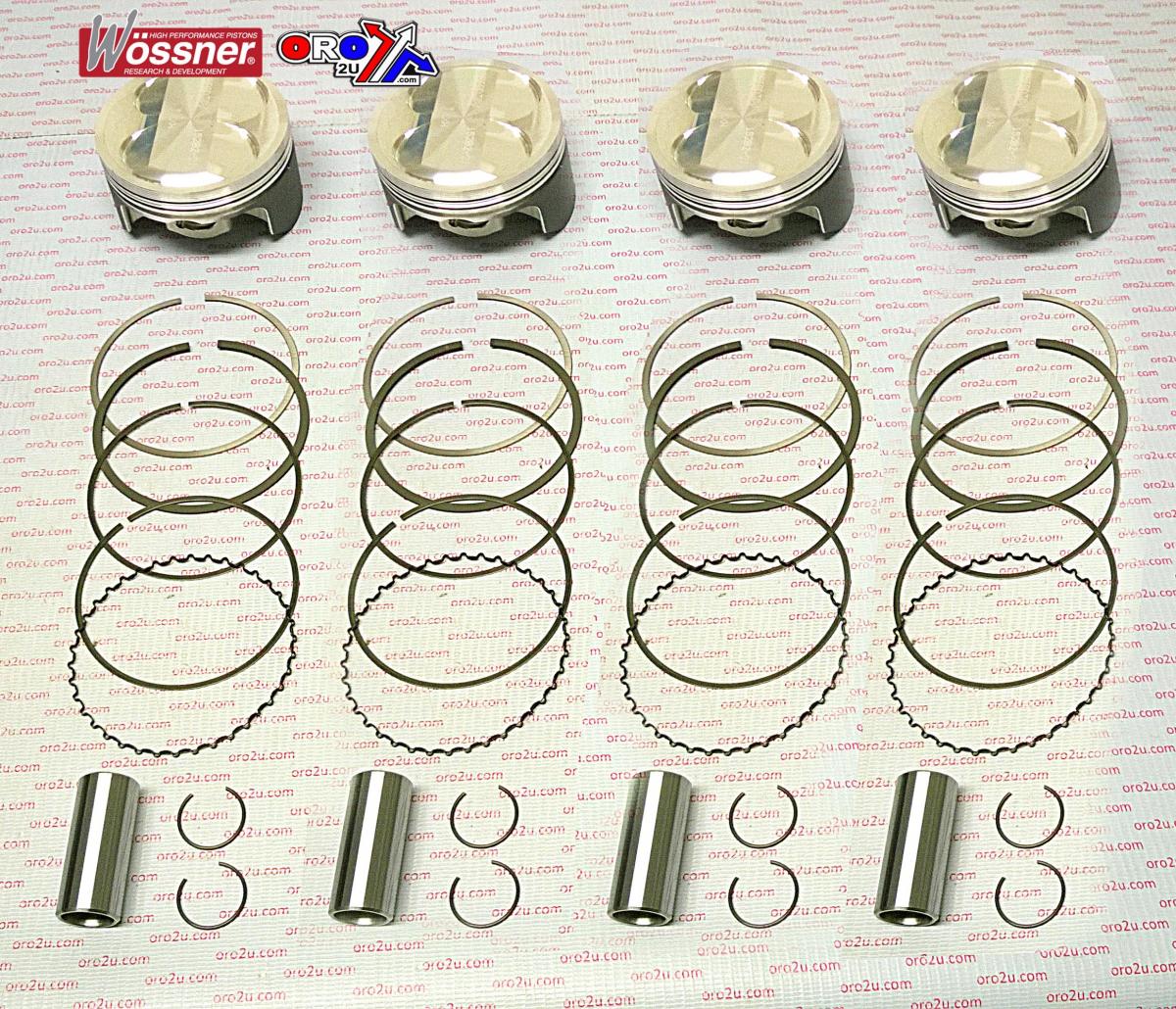

PISTON KIT SET/4 WOSSNER K8530D300-4 O/S 3.00mm 81.00mm.

CLIP No. CW20,

PIN No. WP029,

RINGS No. 810XSY

COMP.RATIO 12.5:1 COMP.HEIGHT 25.30mm

Display (cm3) 1165/1194/1224/1254/1315

Hub stroke (mm) 58.00

Clearance (mm) 0.06

Wossner compression Ratio: 12.5:1

OEM Compression ratio: 10.0:1

Dome volume (cm3) +3.80

Compression height (mm) 25.30

Theorectical weight (G)
