WOSSNER PISTON KIT SET/4 GSXR1000 73, WOSSNER K8754DA-4 SUZUKI, 2001-2004

Piston kit 73mm Bore 72.96 Wossner SET/3 K8754DA-4 (STD)
SUZUKI
GSXR1000 2001-2004,
Wossner forged pistons are superior in strength and design. Engineered to provide the best possible path for combustion chamber heat transfer to cylinder walls. Elliptically designed to provide a more uniform bearing surface under piston heat expansion, eliminating localized pressure and distributing thrust loads more evenly, thereby preventing piston collapse. Made in Germany. Part No. 56-W9891.000.WO (oro2u.com)

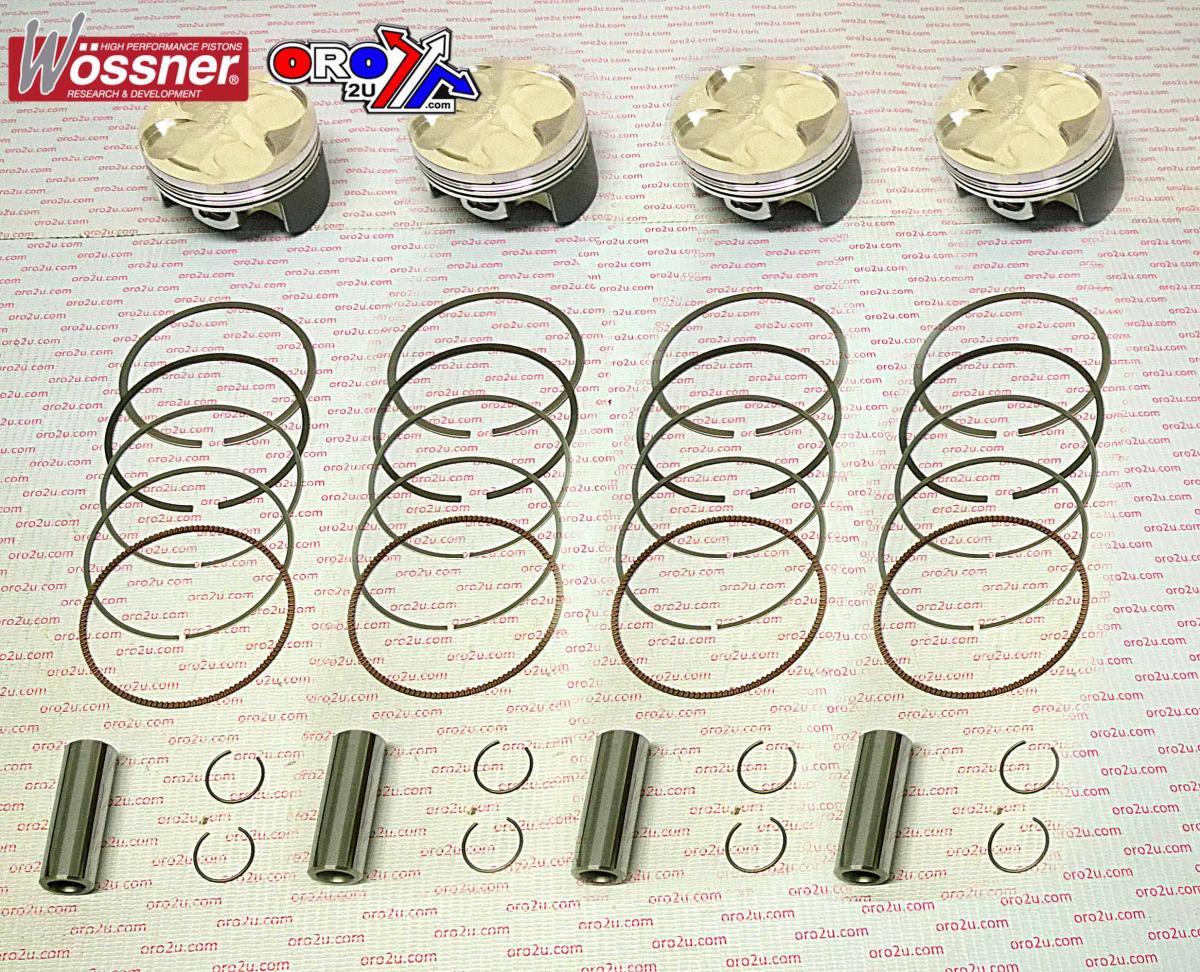

PISTON KIT SET/4 WOSSNER K8754DA-4 STD 73.00mm. CLIP No. CW16,
PIN No. WP059,
RINGS No. RIK73.00F Display (cm3) 988
Hub stroke (mm) 59.00
Clearance (mm) 0.04
Wossner compression Ratio: 14.00:1
OEM Compression ratio: 12.00:1
Dome volume (cm3) -4.40
Compression height (mm) 22.55
Theorectical weight (G) 153.00 DISPLACEMENT 988cc
COMP.RATIO 14.0:1 COMP.HEIGHT 22.55mm
