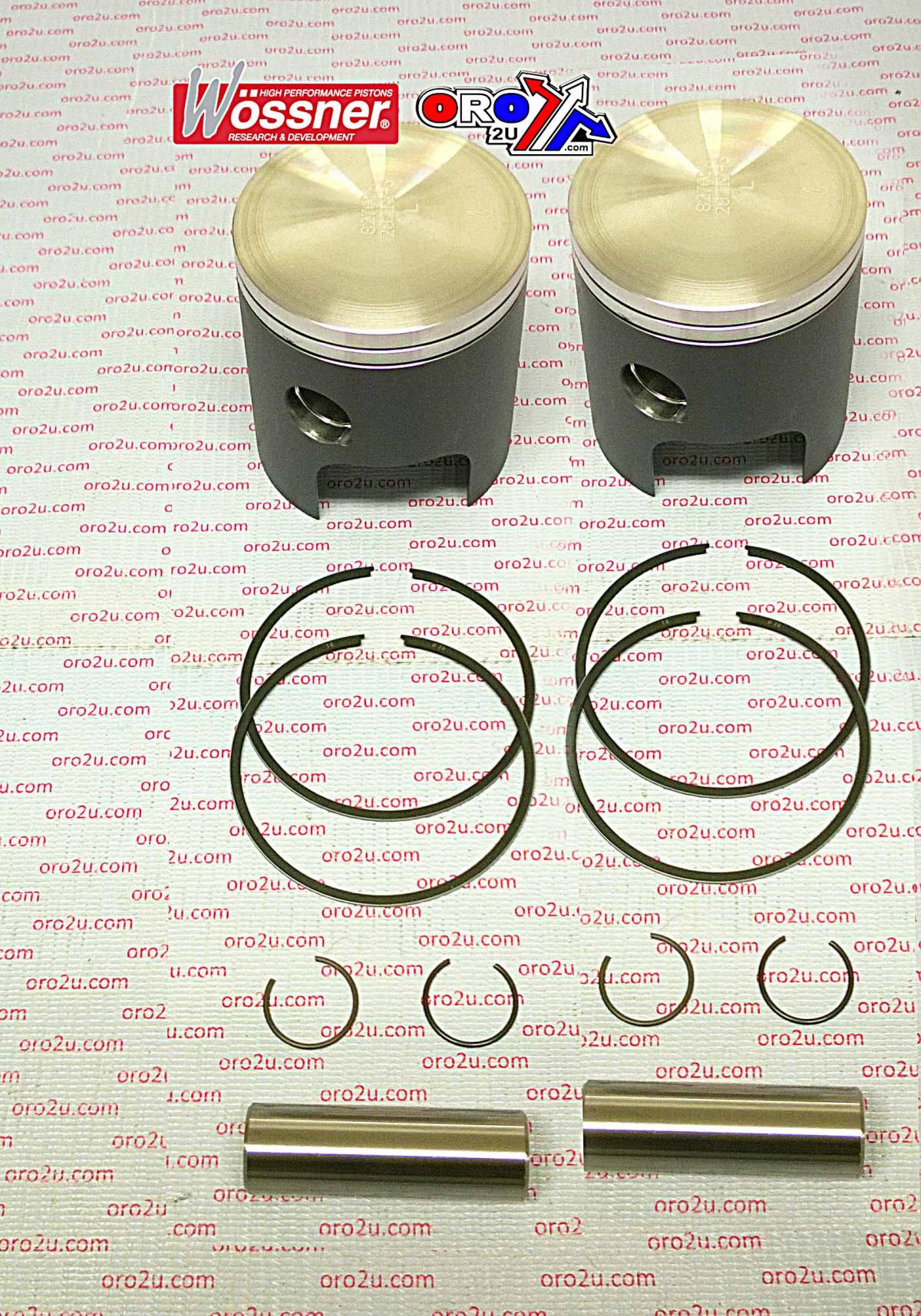

WOSSNER PISTON KIT SET/2 TWIN GT500, WOSSNER K8276D100-2 71.00mm

Piston kit 71mm Bore 70.91 Wossner SET/2 K8276D100-2 (+1mm)
SUZUKI
TWIN T500 / GT500 (Twin cylinder)   1976-1977, Wossner forged pistons are superior in strength and design. Engineered to provide the best possible path for combustion chamber heat transfer to cylinder walls. Elliptically designed to provide a more uniform bearing surface under piston heat expansion, eliminating localized pressure and distributing thrust loads more evenly, thereby preventing piston collapse. Made in Germany Part No. 56-W9886.100-2 (oro2u.com)
CLIP No. CW18,
PIN No. WP033,
RINGS No. RSB7100 x 2 Display (cm3) 492
Hub stroke (mm) 64.00
Clearance (mm) 0.09
Wossner compression Ratio:2 stroke
OEM Compression ratio: 2 stroke
Dome volume (cm3) -
Compression height (mm) 31.80
Theorectical weight (G)
SUZUKI TWIN T500 / GT500 1976-1977,
PISTON KIT SET/2 WOSSNER K8276D100-2 O/S 1.00mm 71.00mm.
Wossner is the innovative specialist for high performance pistons and cylinder blocks. Wossner products are to be found in engines operating at the highest levels of motor sport competition and in everyday use.Wossner products are the source of the superior power behind the success of well known motor sport teams at national and international race meets.
COMP. HEIGHT. 31.80mm,
CLIP No. CW18, PIN No. WP033, RINGS No. RBD7100,
